4 Using the Product

4.1 Front Panel

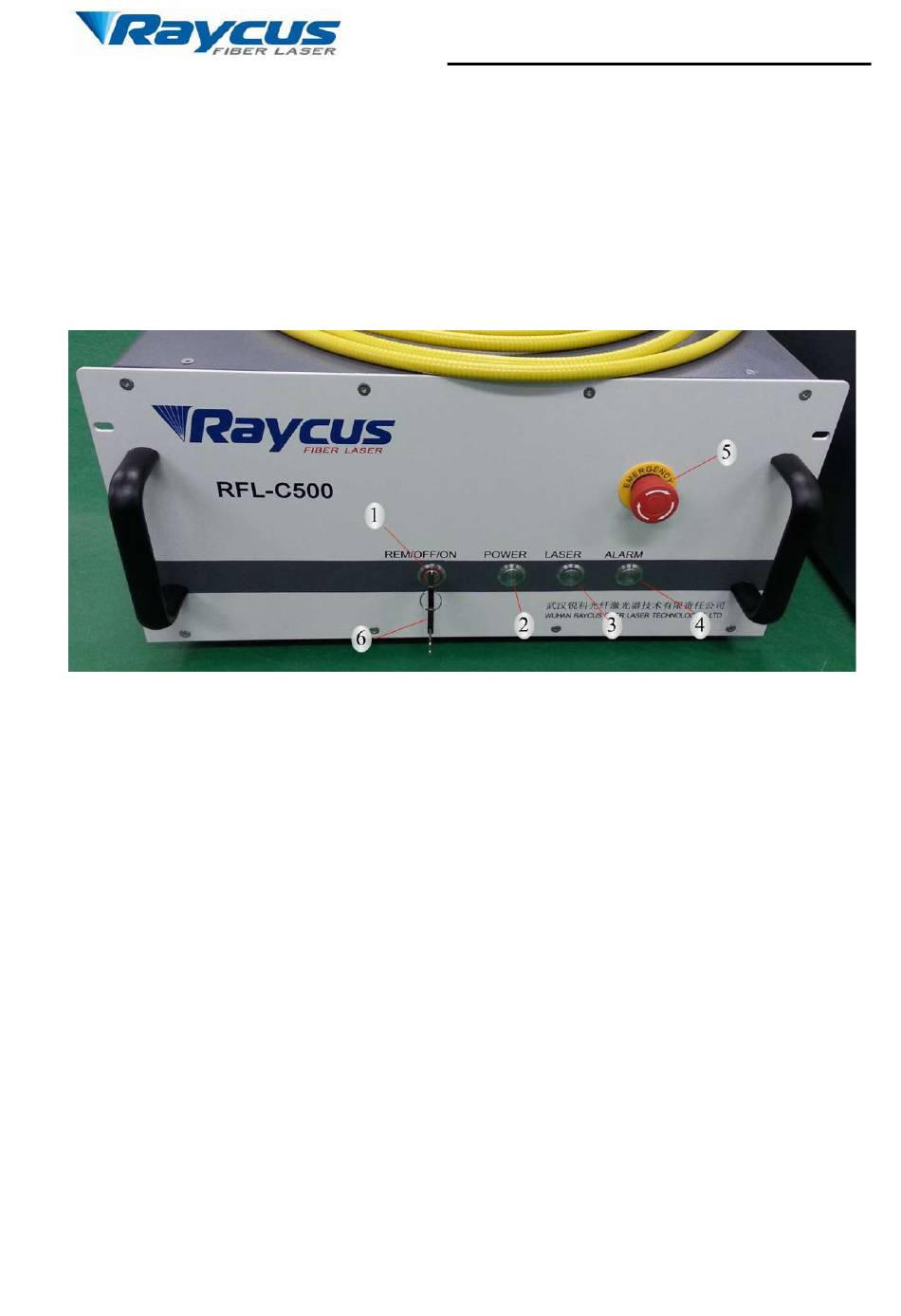

Figure 9 shows the front panel (500W model).
1. REM/OFF/ON: Key switch, the power switch of the laser. Insert the key (Item 6 in Figure 9);
either turn the key clockwise to the 'ON' position or counterclockwise to 'REM' position will
power on the laser. Then the laser will enter a control mode depending on your previous setup
on the 'CTRL-INTERFACE'. You can refer to 4.6 Entering a Control Mode for more
details.
2. POWER: Power Indicator, indicates that the power is switched on, when the green LED
illumines.
3. LASER: Laser emission button, it's a button with an annular LED indicator (red color). In
hyper terminal mode and AD mode, when this button is pressed down, the product is ready to
emit laser, and the LED illumines. Press again will release the button, and disable the laser
emission.
