Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide 100W~750W
Ver: 1.0
3 Installation
3.1 Dimensions

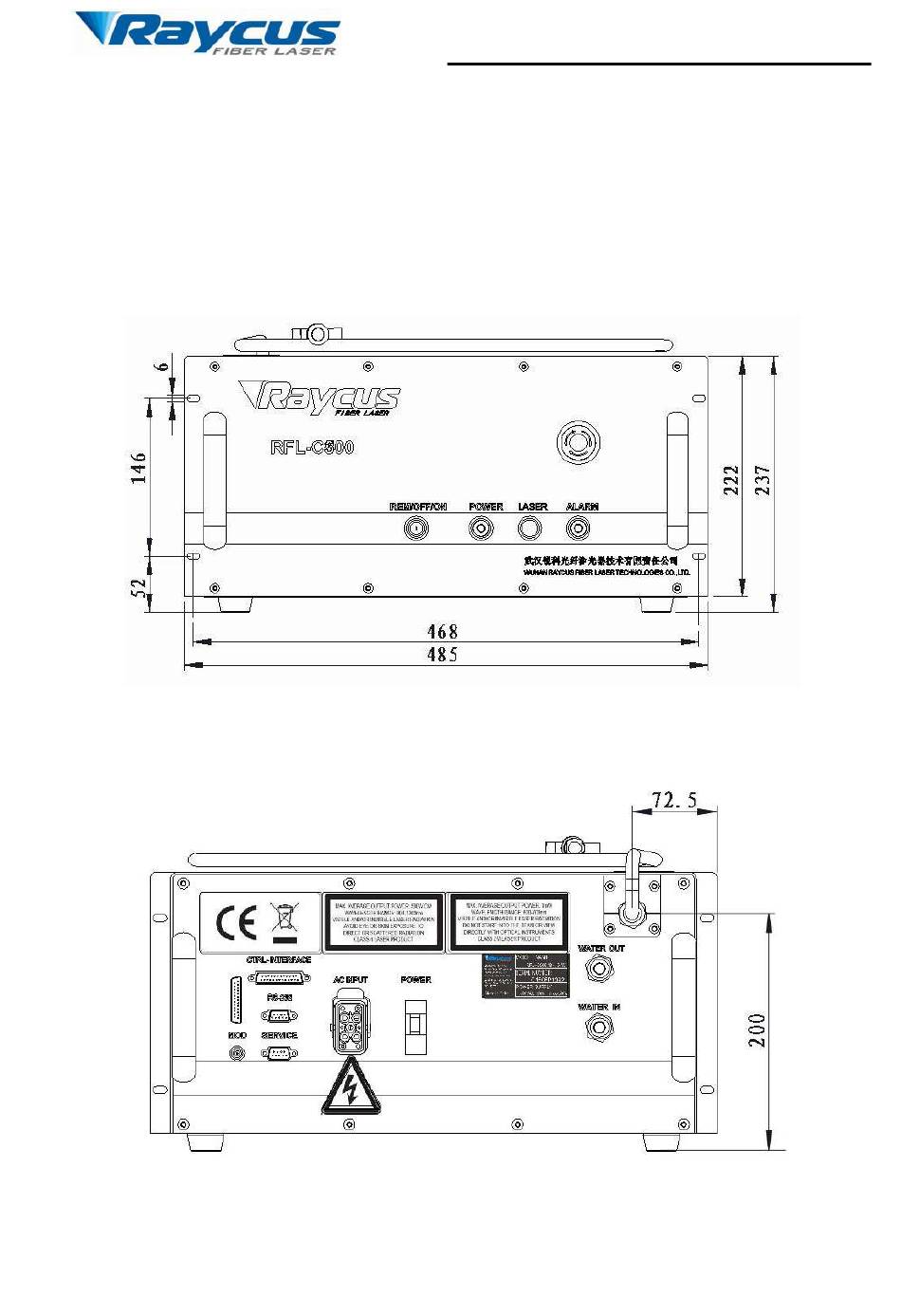

Figure 2, Figure 3 and Figure 4 shows dimensions of the product (500W model for example,
other models in the series have the same dimensions).
Figure 2: Front panel view (unit: mm)
Figure 3: Rear panel view (unit: mm)
