5. AC INPUT: The socket for supply input that can be only mated with the plug on the power
cord we provided.
6. POWER: The Main Switch of the laser, it must be turn on before you start the laser.
7. WATER: Pipe connectors, the inlet and outlet for cooling water flow in and return, mated
with 10 mm (outer diameter) PU pipes.

4.3 Power Connection

A power cord is provided in the package, as in Figure 11
One end of the power cord is a plug; insert it in to the socket 'AC INPUT' on the rear panel.
Notice that the plug is wrong-side preventing. After insert it, lock it with the lever (Figure 12).
The other end of the power cord is stripped off and each wire is crimped with a 'pin-type cable
connector'. There are three wires labeled L, N and PE, respectively. You should connect the
wires to the AC power supply according to the labels:
L-Phase Line
N-Neutral
CAUTION: Before connect the product to AC power, you must check up
that the AC supply you will apply is in accordance with the specifications
provided in Table 4.

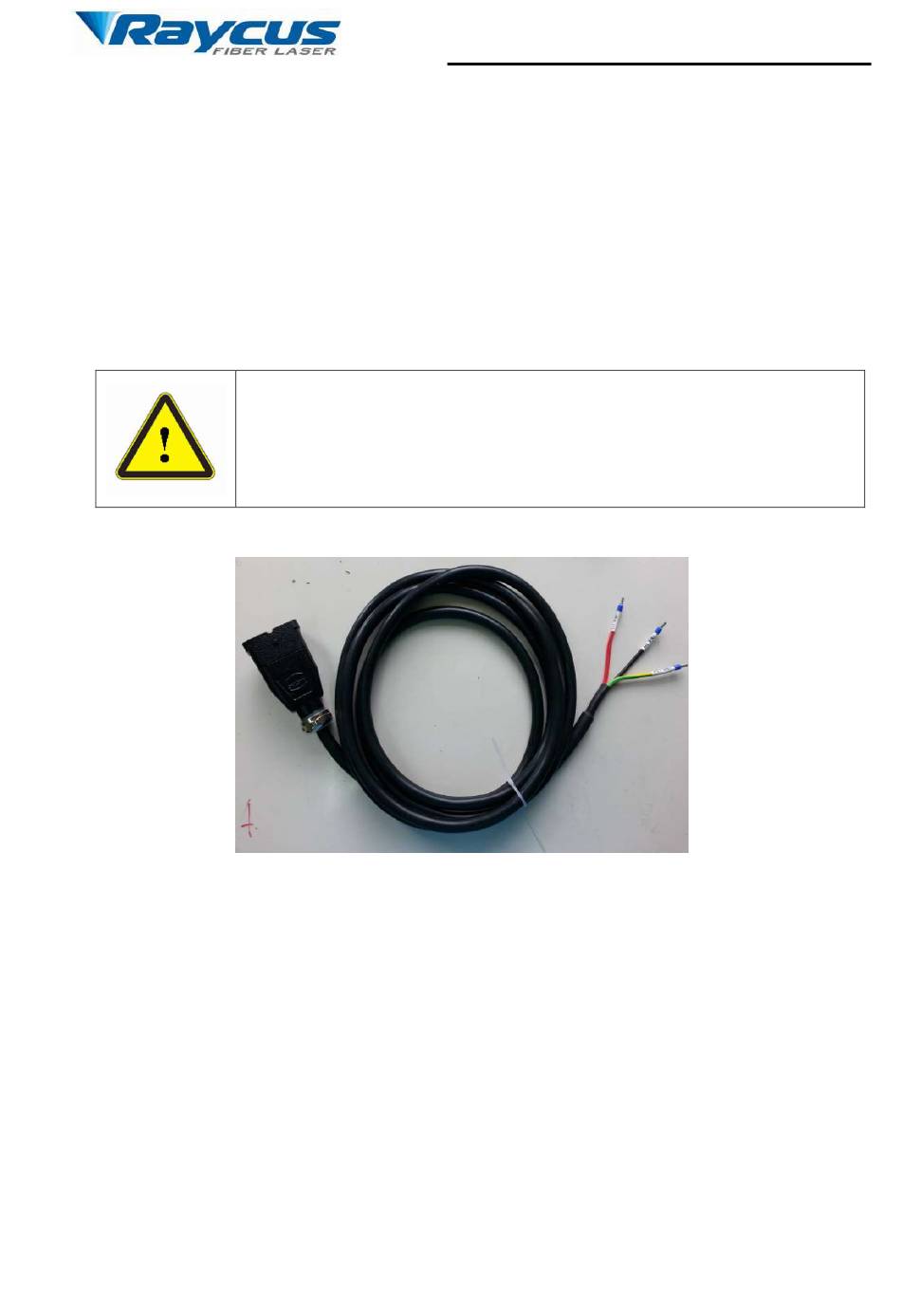

Figure 11: The Power Cord of the Laser
