Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide 100W~750W Ver: 1.0

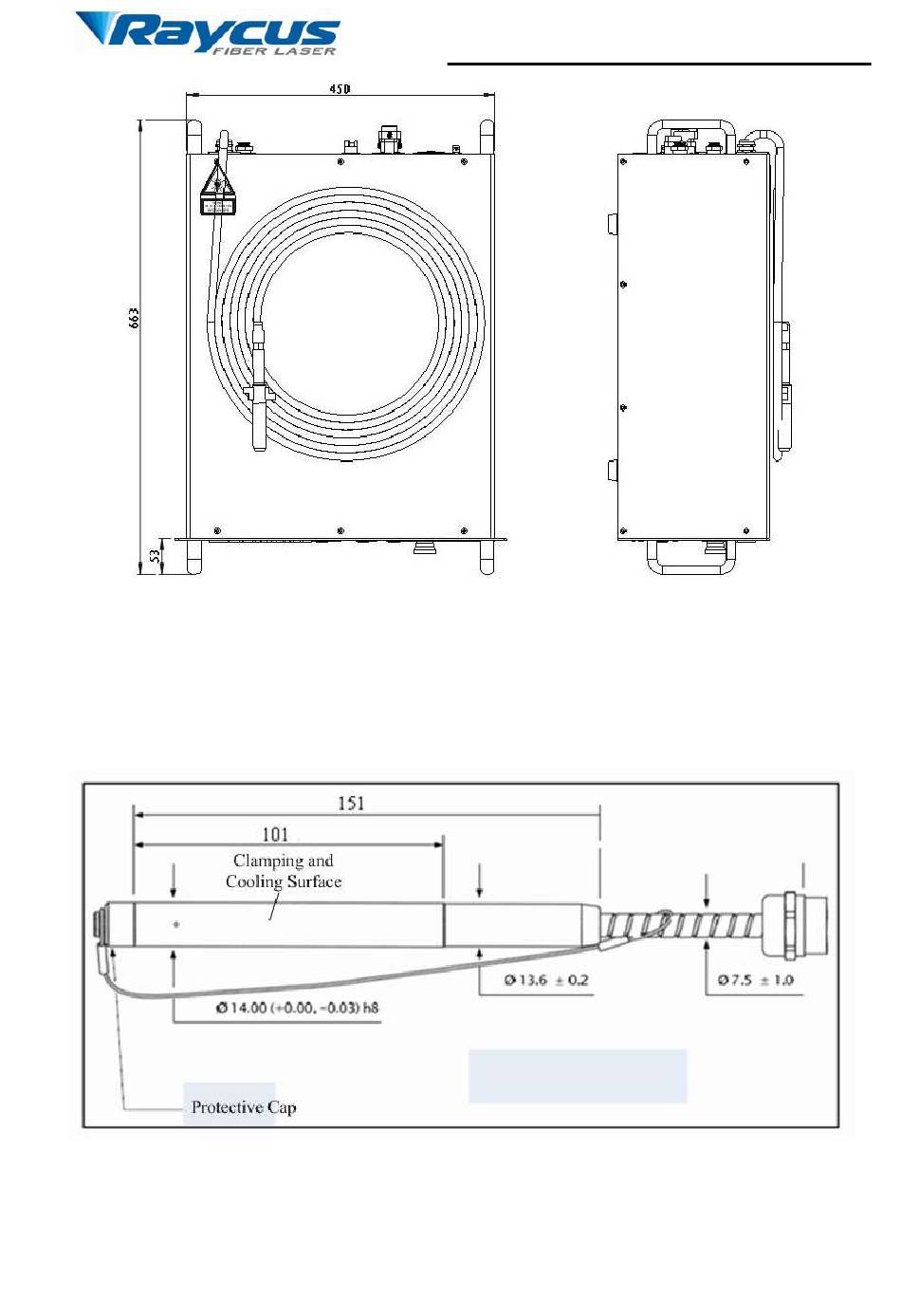

Figure 4: Top and Side view (unit: mm)
There are four types of output head: QCS, RFL-QCS, QBH and RFL-QBH.
The following figure shows the details of QCS output head.
Figure 5: QCS Output head (unit: mm)
The following figure shows dimensions of RFL-QCS output head.
2
