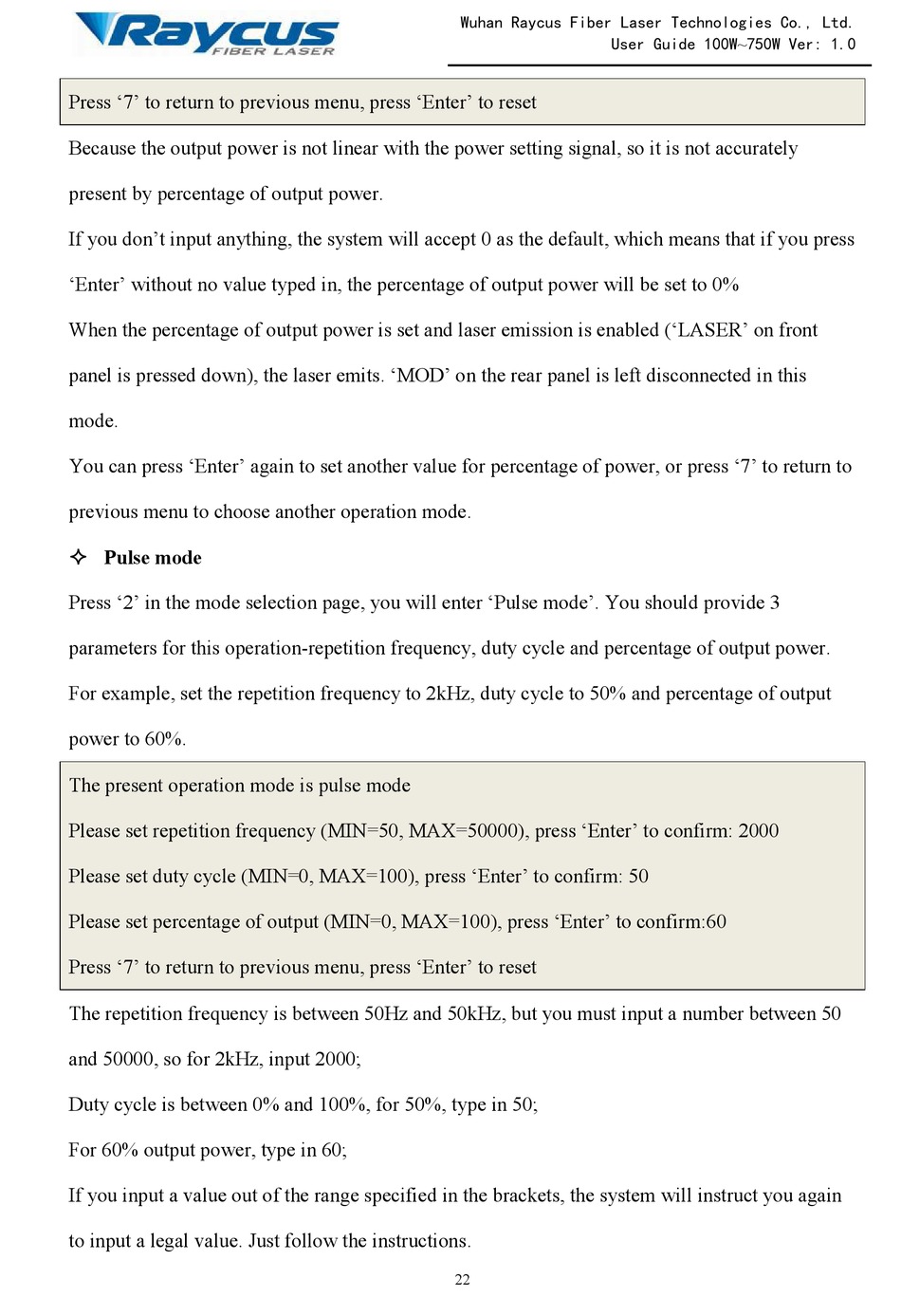

Raycus RFL-C Series User Manual page 35

Wuhan Raycus Fiber Laser Technologies Co., Ltd.
User Guide 100W~750W Ver: 1.0
Press '7' to return to previous menu, press 'Enter' to reset
Because the output power is not linear with the power setting signal, so it is not accurately
present by percentage of output power.
If you don't input anything, the system will accept 0 as the default, which means that if you press
'Enter' without no value typed in, the percentage of output power will be set to 0%
When the percentage of output power is set and laser emission is enabled ('LASER' on front
panel is pressed down), the laser emits. 'MOD' on the rear panel is left disconnected in this
mode.
You can press 'Enter' again to set another value for percentage of power, or press '7' to return to
previous menu to choose another operation mode.
 Pulse mode
Press '2' in the mode selection page, you will enter 'Pulse mode'. You should provide 3
parameters for this operation-repetition frequency, duty cycle and percentage of output power.
For example, set the repetition frequency to 2kHz, duty cycle to 50% and percentage of output
power to 60%.
The present operation mode is pulse mode
Please set repetition frequency (MIN=50, MAX=50000), press 'Enter' to confirm: 2000
Please set duty cycle (MIN=0, MAX=100), press 'Enter' to confirm: 50
Please set percentage of output (MIN=0, MAX=100), press 'Enter' to confirm:60
Press '7' to return to previous menu, press 'Enter' to reset
The repetition frequency is between 50Hz and 50kHz, but you must input a number between 50
and 50000, so for 2kHz, input 2000;
Duty cycle is between 0% and 100%, for 50%, type in 50;
For 60% output power, type in 60;
If you input a value out of the range specified in the brackets, the system will instruct you again
to input a legal value. Just follow the instructions.
