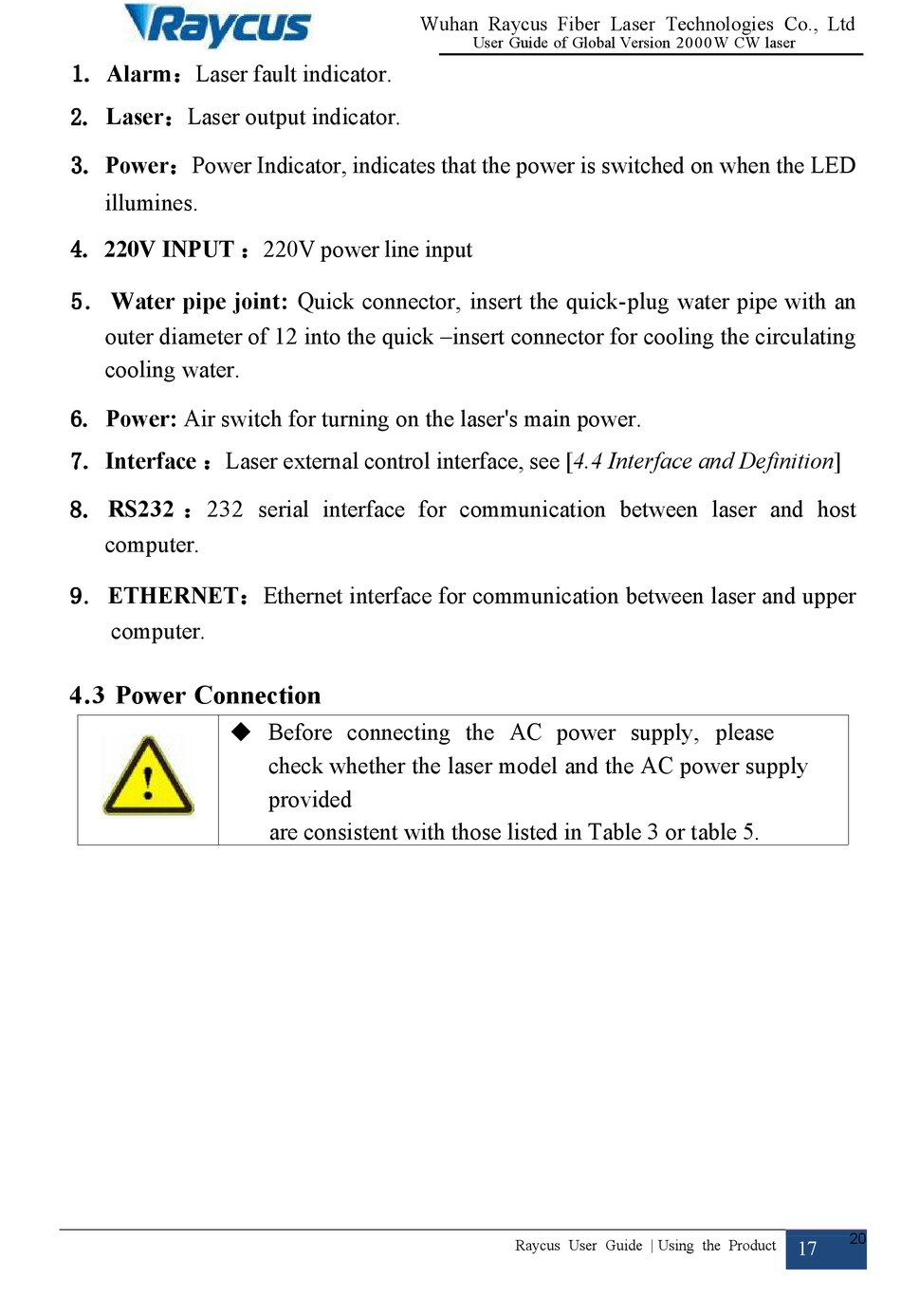

Alarm Laser fault indicator.
Laser Laser output indicator.
Power Power Indicator, indicates that the power is switched on when the LED
illumines.
220V INPUT
Water pipe joint: Quick connector, insert the quick-plug water pipe with an
outer diameter of 12 into the quick –insert connector for cooling the circulating
cooling water.
Power: Air switch for turning on the laser's main power.
Interface Laser external control interface, see [4.4 Interface and Definition]
RS232 232 serial interface for communication between laser and host
computer.
ETHERNET Ethernet interface for communication between laser and upper
computer.

4.3 Power Connection

 Before connecting the AC power supply, please
Wuhan Raycus Fiber Laser Technologies Co., Ltd
220V power line input
check whether the laser model and the AC power supply
provided
are consistent with those listed in Table 3 or table 5.
