Wuhan Raycus Fiber Laser Technologies Co., Ltd
User Guide of Global Version 1000 - 1500W CW laser
3 Installation
3. 1 Dimensions
3.1.1 Overall dimensions of Global Version 1000-1500W CW laser
The external dimensions of the Global Version 1000 W CW laser is the
same as that of Global Version 1500W CW laser. (As shown in Figure 2, take
the Global Version 1500W CW laser as an example.)

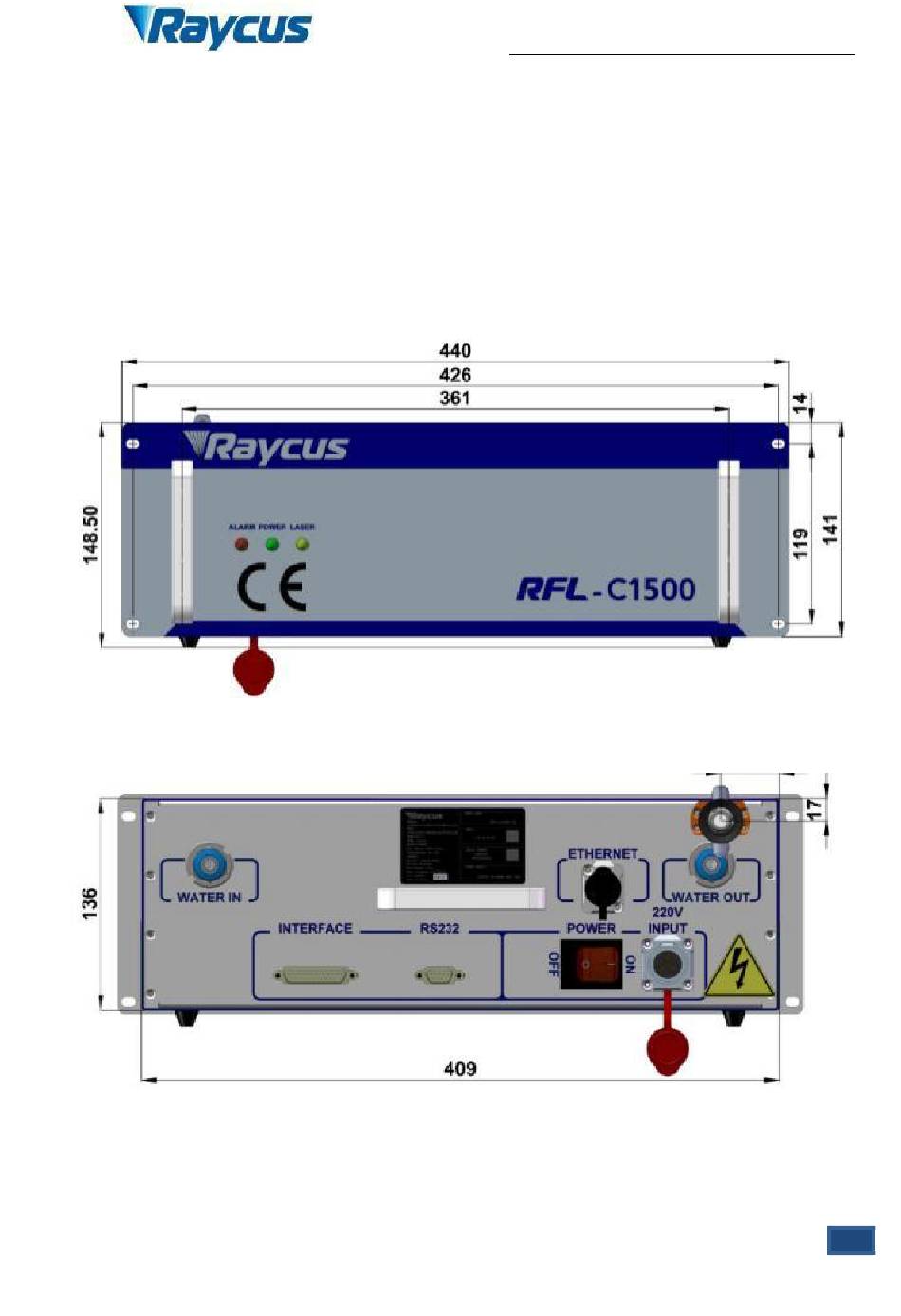

Figure 2 (a) Front view (Unit: mm)
Figure 2 (b) Rear view (unit: mm)
10
Raycus User Guide | Installation
