2.3

Control elements

Zr8-standard/Zr8-flat controller

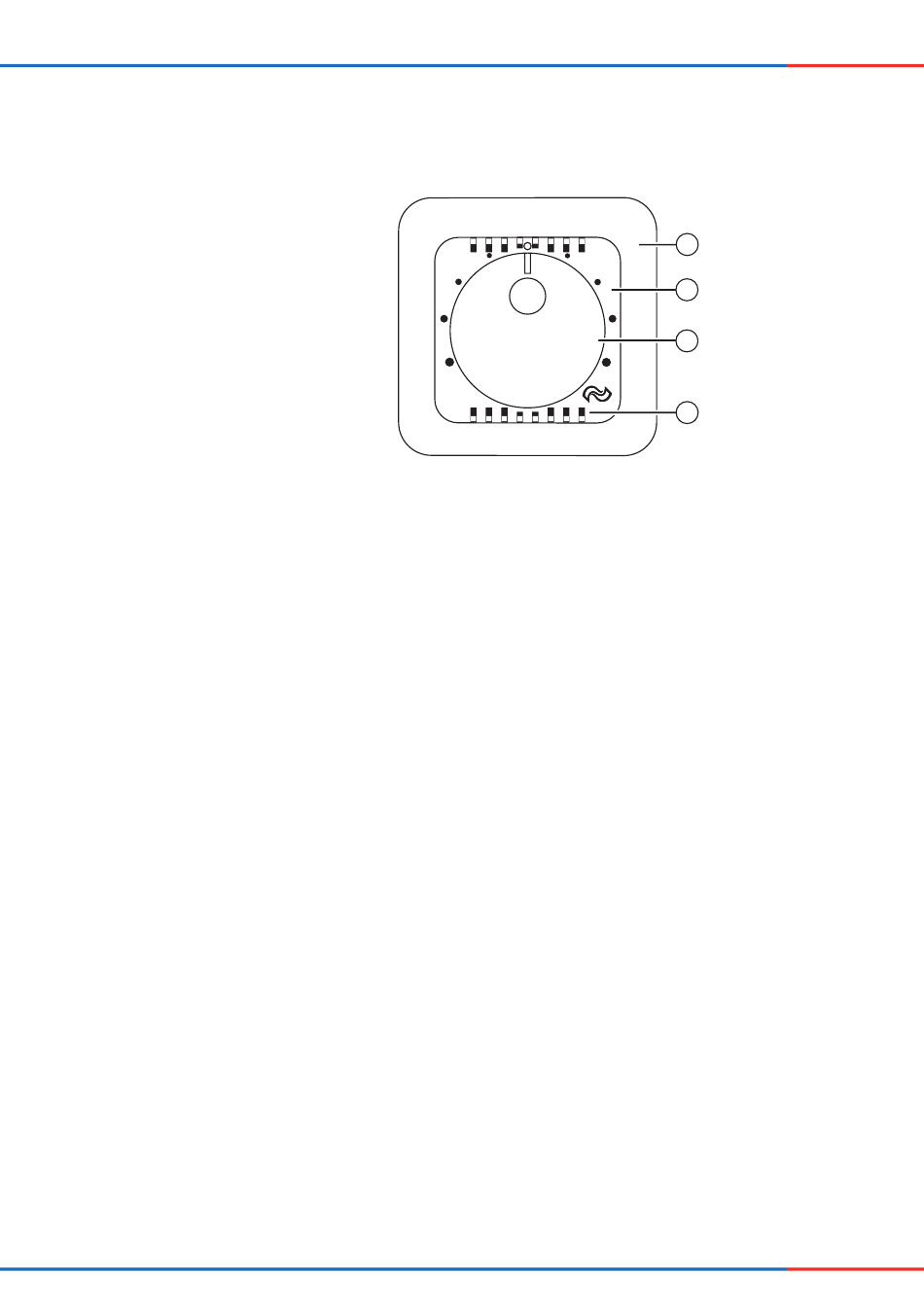

Fig. 8: Front view of ZR8 controller
1 Frame
2 Control unit cover
The ZR8 controller is an electronic unit for controlling up to two inVENTer
units. What sets it apart is its easy installation and simple operating concept.
It allows control of the inVENTer iV12-Smart ventilation system in three modes:
• Heat recovery
• Ventilation
• Pause function (ZR8-Flat only) or
OFF-Mode (ZR8-Standard only)
ZR8-Standard and ZR8-Flat controllers differ in terms of airlow at output level zero. Use of the
ZR8-Flat controller is recommended in rooms where the ventilation unit should not be switched
off in order to maintain ventilation to protect against moisture build-up.
features
• Control of the ventilation unit in three operating modes.
• Ininitely variable adjustment of the airlow with rotary button.
• Marking of the airlow at four output levels.
• LED display subject to the selected operatingmode.
• Synchronisation of multiple controllers.
• Integral thermal circuit breaker.
Versions
The ZR8 controller is available in two versions:
• ZR8-Standard
• ZR8-Flat
Detailed information can be found in the installation and operating instructions for the ZR8
controller.
inVENTer ® iV12-Smart ® /iV12-Smart ® Corner ventilation system
sysTem oVerVieW
1
2
3
4
3 Rotary button
4 Ventilation slots
•
