sysTem oVerVieW

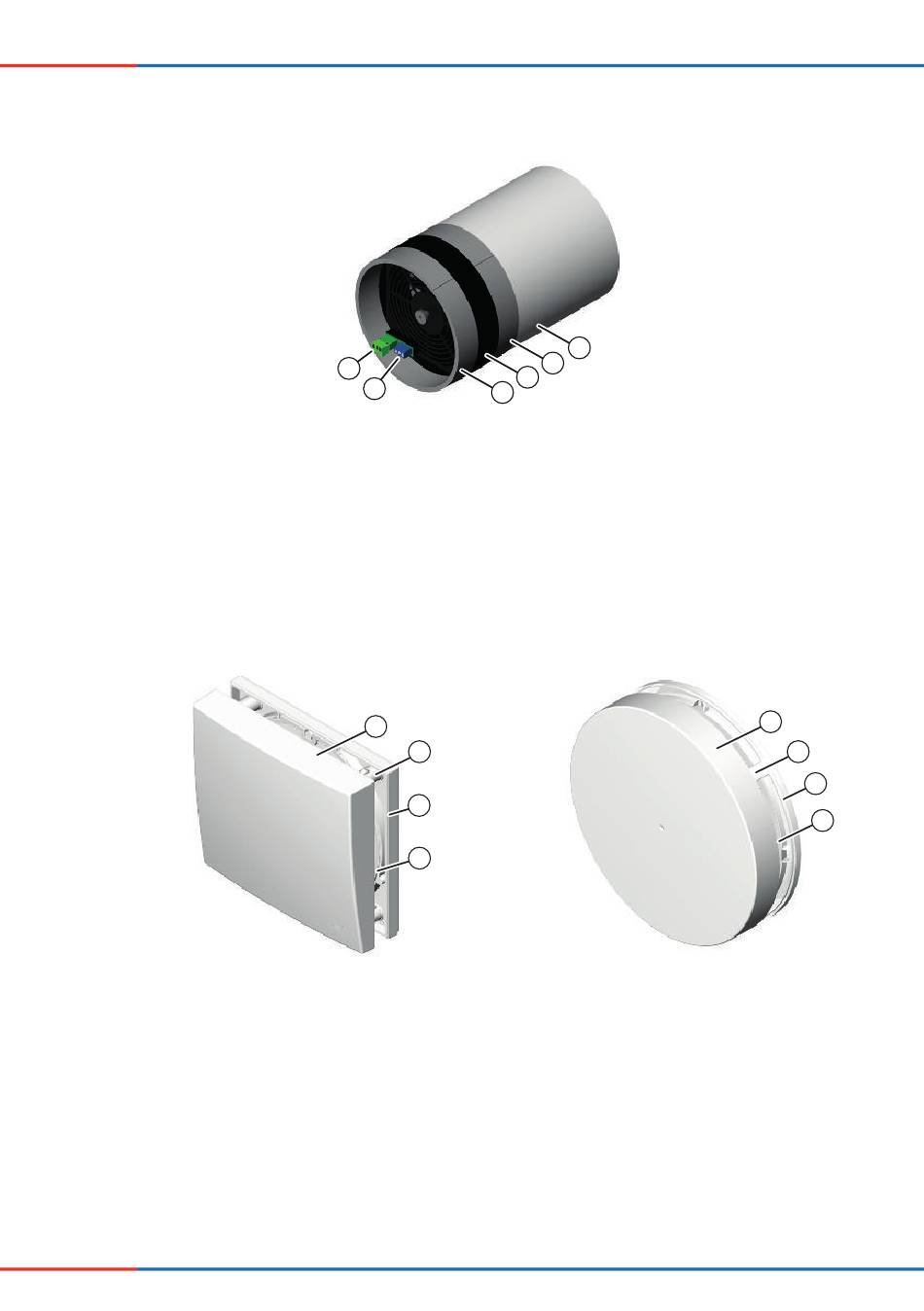

Thermal accumulator insert (with reversible fan)
Fig. 3: Thermal accumulator insert iV12-Smart with fan
1 Thermal accumulator with insulation
2 Felt strip
3 Reversible fan
inner covers
Inner cover V-220x200
Fig. 4: Inner covers
1 Panel of inner cover
2 Spacer
3 Base plate of inner cover
4 Dust ilter (pollen ilter optional)
inVENTer ® iV12-Smart
8
6
5
1
2
3
4
® /iV12-Smart ® Corner ventilation system
1
2
3
4
4 Felt strip
5 Fan mains terminal
6 Controller plug
Inner cover R-D290
•
Installation and operating instructions
1
2
3
4
