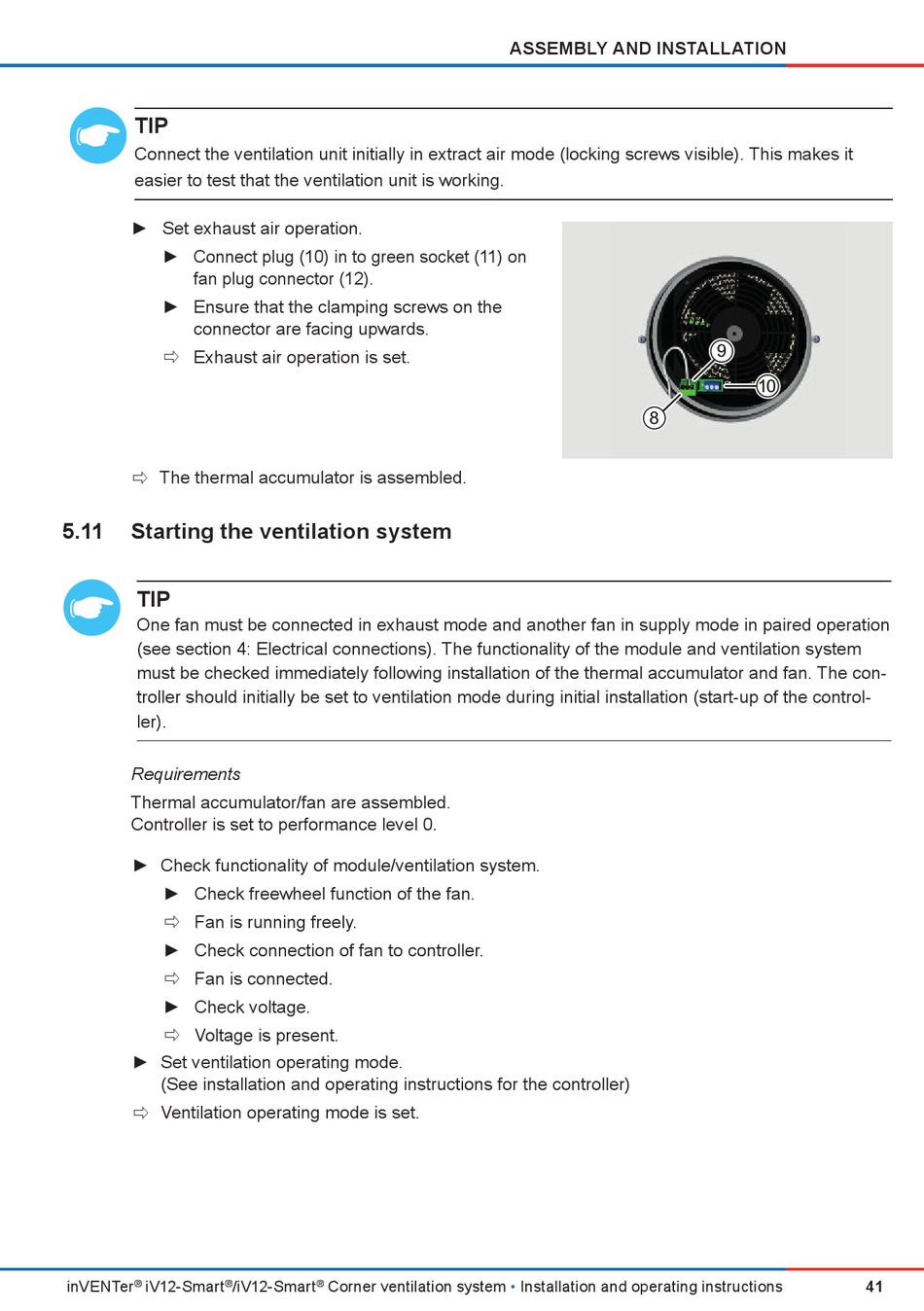

Starting The Ventilation System - inVENTer iV12-Smart Corner Installation And Operating Instructions Manual

TiP
Connect the ventilation unit initially in extract air mode (locking screws visible). This makes it
easier to test that the ventilation unit is working.
► Set exhaust air operation.
► Connect plug (10) in to green socket (11) on
fan plug connector (12).
► Ensure that the clamping screws on the
connector are facing upwards.
Exhaust air operation is set.
Ö
Ö
Ö
Ö
The thermal accumulator is assembled.
5.11

starting the ventilation system

TiP
One fan must be connected in exhaust mode and another fan in supply mode in paired operation
(see section 4: Electrical connections). The functionality of the module and ventilation system
must be checked immediately following installation of the thermal accumulator and fan. The con-
troller should initially be set to ventilation mode during initial installation (start-up of the control-
ler).
Requirements
Thermal accumulator/fan are assembled.
Controller is set to performance level 0.
► Check functionality of module/ventilation system.
► Check freewheel function of the fan.
Ö
Ö
Fan is running freely.
► Check connection of fan to controller.
Ö
Ö
Fan is connected.
► Check voltage.
Ö
Ö
Voltage is present.
► Set ventilation operating mode.
(See installation and operating instructions for the controller)
Ö
Ö
Ventilation operating mode is set.
inVENTer ® iV12-Smart ® /iV12-Smart ® Corner ventilation system
assembly anD insTallaTion
8
•
Installation and operating instructions
