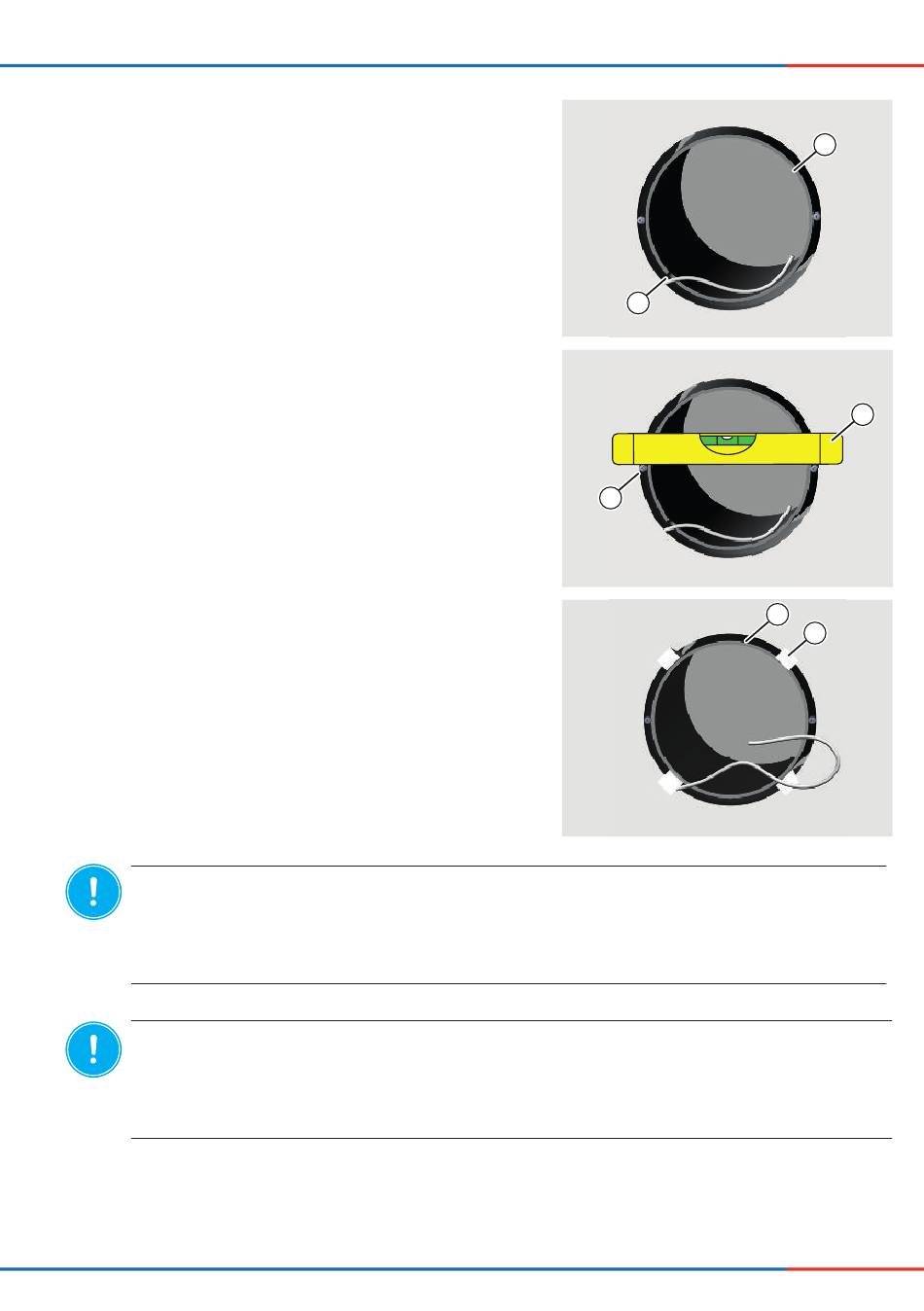

► Insert wall sleeve (1) from inside the room.
► Ensure that there is a recess (2) at the
bottom left for the controller cable at an angle
of 45°.
or
► Ensure that there is a recess (2) at the top
right for the controller cable at an angle
of 45°.
► Align the position of the ixings (4) horizontally
using a spirit level (3).
► Secure wall sleeve (5) with mounting wedges (6)
on the inside and outside.
► Ensure that the wall sleeve (5) is aligned with
a fall of 1 – 2° to the external wall.
noTe
Contamination of the wall sleeve.
Damage to the insulation of the thermal accumulator!
► Before illing the gap with foam, insert protective discs.
noTe
Deformation of the wall sleeve.
Thermal accumulator cannot be installed!
► Insert thermal accumulator or suitable material before foaming the free space.
