SYSTEM OVERVIEW: IV-COMPACT VENTILATION DEVICE
2.3

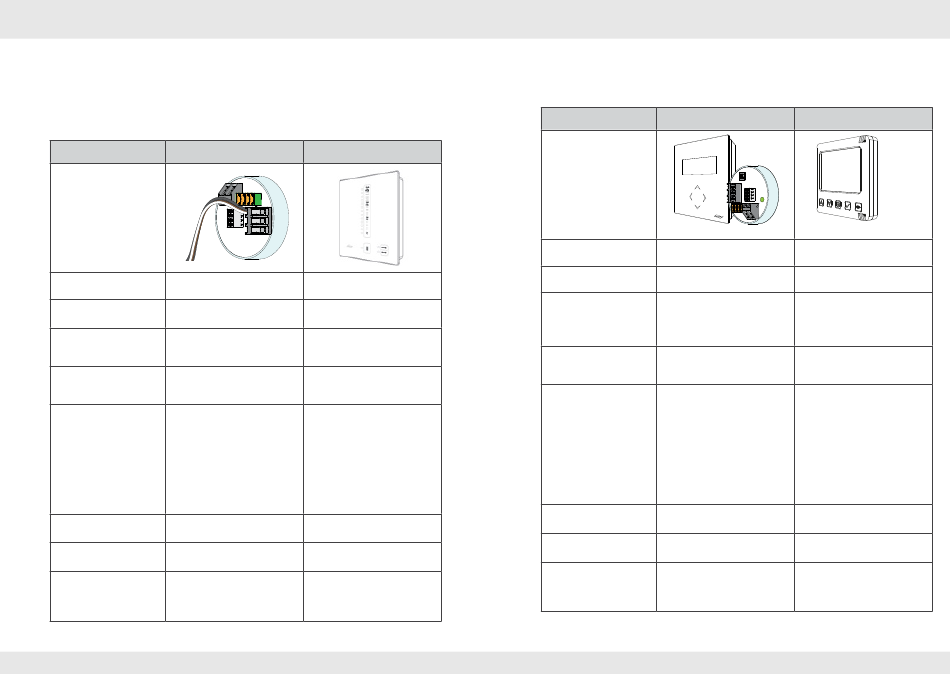

Control elements

The ventilation device is operated via an inVENTer system controller.
Depending on the controller, different operating modes and functions can be set.
Basic controls
Designation Pure
Number of controllable Max. 4
ventilation devices
Multi-zone control No
Operating concept • Switch
Operating modes • Heat recovery
• Unidirectional ventilation
• OFF (standard version only)
• Pause function (1 h)
Functions
Fan speed 3 levels, predefined
Device communication Cable
External interface 1 potential-free switching con-
tact per control module:
• Pressure switch (NC)
• Other sensors (NO)
12
12
sMove
s4: Max. 4
s8: Max. 8
No
• Touch
• Heat recovery
• Unidirectional ventilation
• OFF (standard version only)
• Pause function (1 ... 8 h)
• Boost function (15 min)
infinitely variable,
4 levels predefined
Cable
1 potential-free switching con-
tact per controller:
• Pressure switch (NC)
• Other sensors (NO)
iV-Compact ventilation device | Installation instructions
Multi-zone control
Designation MZ-Home
Bedieneinheit & Clust-Air-Modul
Number of controllable Max. 16
ventilation devices (excl. sensors)
Multi-zone control Max. 4 zones with max. 4 devic-
es [plus sensors] per zone
Operating concept • Touch
• Weekly timer
Operating modes • Heat recovery
• Unidirectional ventilation
• OFF
Functions • Pause function (1 ... 8 h)
(zonal)
• Dehumidification function with
variable air volume
current
Fan speed 4 power levels, freely selectable
Device communication Cable
External interface 1 potential-free switching contact
per Clust-Air module (max. 4)
• Pressure switch (NC/NO)
• Other sensors (NO)
For detailed information, see the controller's installation and operating instructions.
iV-Compact ventilation device | Installation instructions
SYSTEM OVERVIEW: IV-COMPACT VENTILATION DEVICE
inVENTer Connect
ON
1 2
Easy Connect e16
Max. 16
(incl. sensors)
Max. 4 zones; any number of
devices per zone
• Touch
• Ventilation profiles (time-con-
trolled)
• App control
• Heat recovery
• Unidirectional ventilation
• OFF
• Dehumidification function with
variable air volume
current and other demand
ventilation
• Pause function
(global and zonal)
• Boost function
(global and zonal)
• Cellar ventilation
• Summer ventilation
4 power levels, freely selectable
• 868 MHz wireless network
• Cable
Several different sensors
division and number of sensors per
zone arbitrary)
(zone
13
