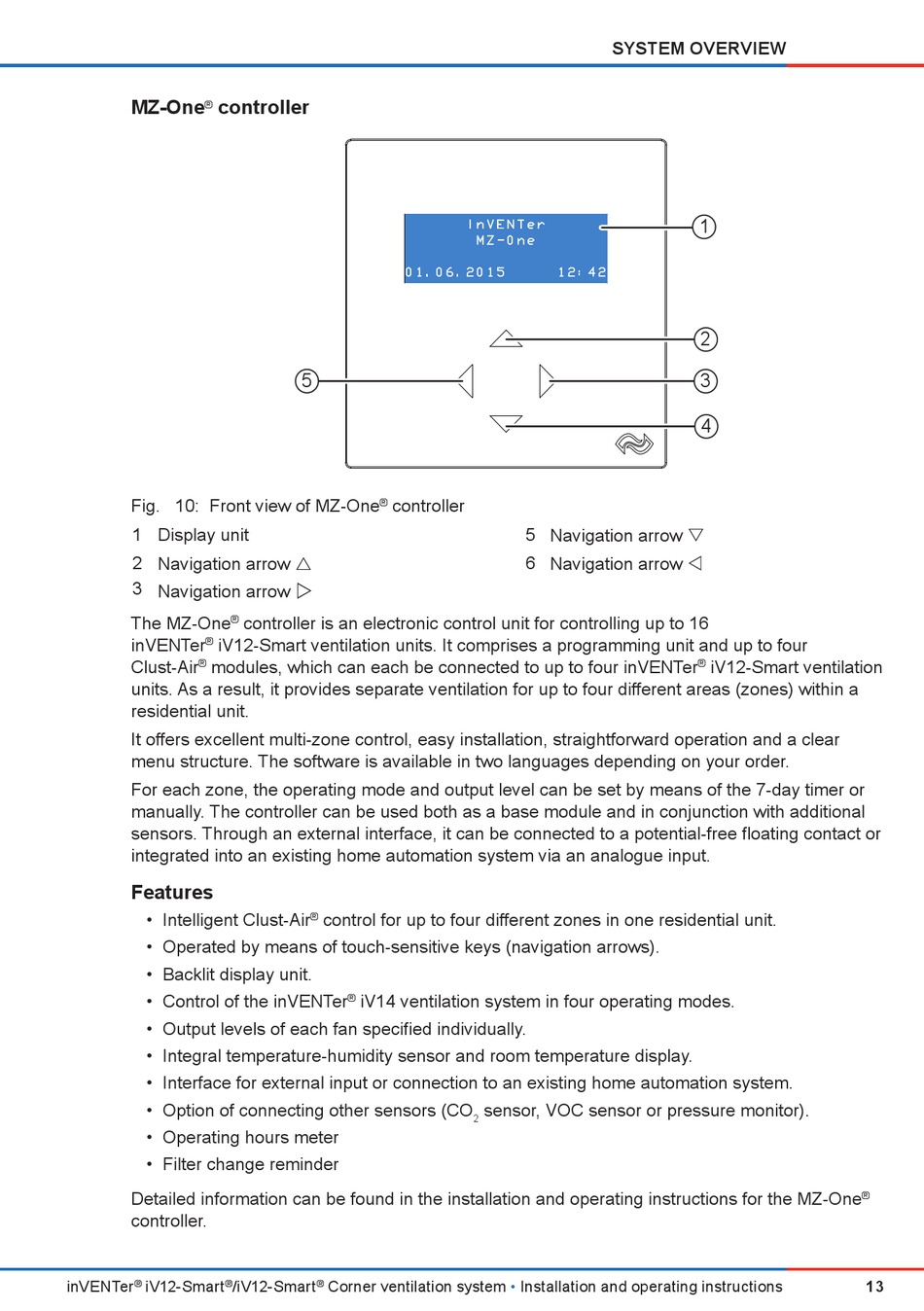

Fig. 10: Front view of MZ-One
1 Display unit
2 Navigation arrow 
3 Navigation arrow
The MZ-One ®
®
inVENTer iV12-Smart ventilation units. It comprises a programming unit and up to four
Clust-Air ® modules, which can each be connected to up to four inVENTer
units. As a result, it provides separate ventilation for up to four different areas (zones) within a
residential unit.
It offers excellent multi-zone control, easy installation, straightforward operation and a clear
menu structure. The software is available in two languages depending on your order.
For each zone, the operating mode and output level can be set by means of the 7-day timer or
manually. The controller can be used both as a base module and in conjunction with additional
sensors. Through an external interface, it can be connected to a potential-free loating contact or
integrated into an existing home automation system via an analogue input.
features
• Intelligent Clust-Air
• Operated by means of touch-sensitive keys (navigation arrows).
• Backlit display unit.
• Control of the inVENTer
• Output levels of each fan speciied individually.
• Integral temperature-humidity sensor and room temperature display.
• Interface for external input or connection to an existing home automation system.
• Option of connecting other sensors (CO
• Operating hours meter
• Filter change reminder
Detailed information can be found in the installation and operating instructions for the MZ-One
controller.
