Requirements
Masonry must be dry and load-bearing.
No load-bearing elements in the position of the planned hole/plaster or wall groove.

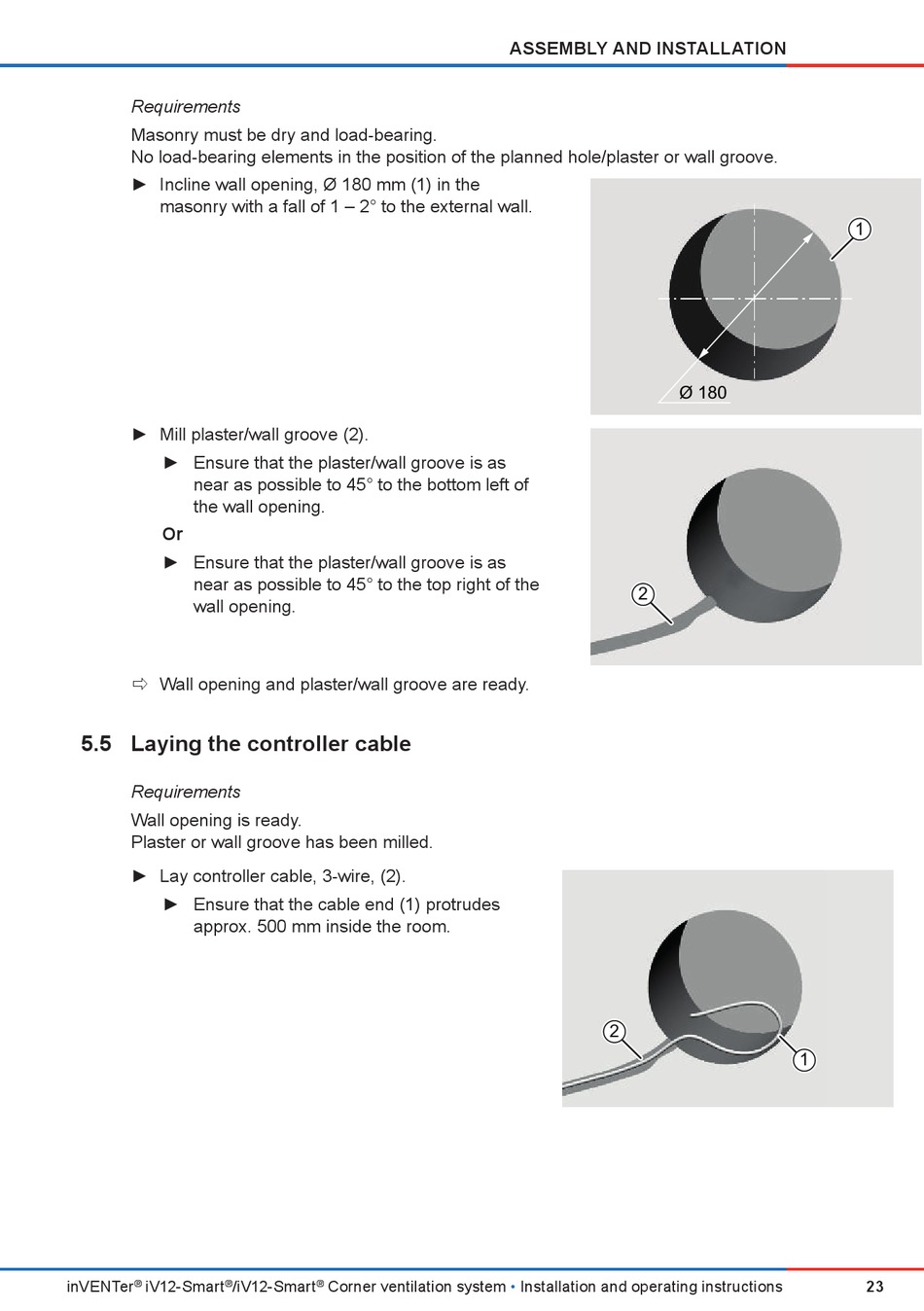

► Incline wall opening, Ø 180 mm (1) in the
masonry with a fall of 1 – 2° to the external wall.
► Mill plaster/wall groove (2).
► Ensure that the plaster/wall groove is as
near as possible to 45° to the bottom left of
the wall opening.
or
► Ensure that the plaster/wall groove is as
near as possible to 45° to the top right of the
wall opening.
Ö
Ö
Wall opening and plaster/wall groove are ready.

5.5 laying the controller cable

Requirements
Wall opening is ready.
Plaster or wall groove has been milled.
► Lay controller cable, 3-wire, (2).
► Ensure that the cable end (1) protrudes
approx. 500 mm inside the room.
inVENTer ® iV12-Smart ® /iV12-Smart ® Corner ventilation system
assembly anD insTallaTion
Ø 180
2
2
•
Installation and operating instructions
1
1
23
