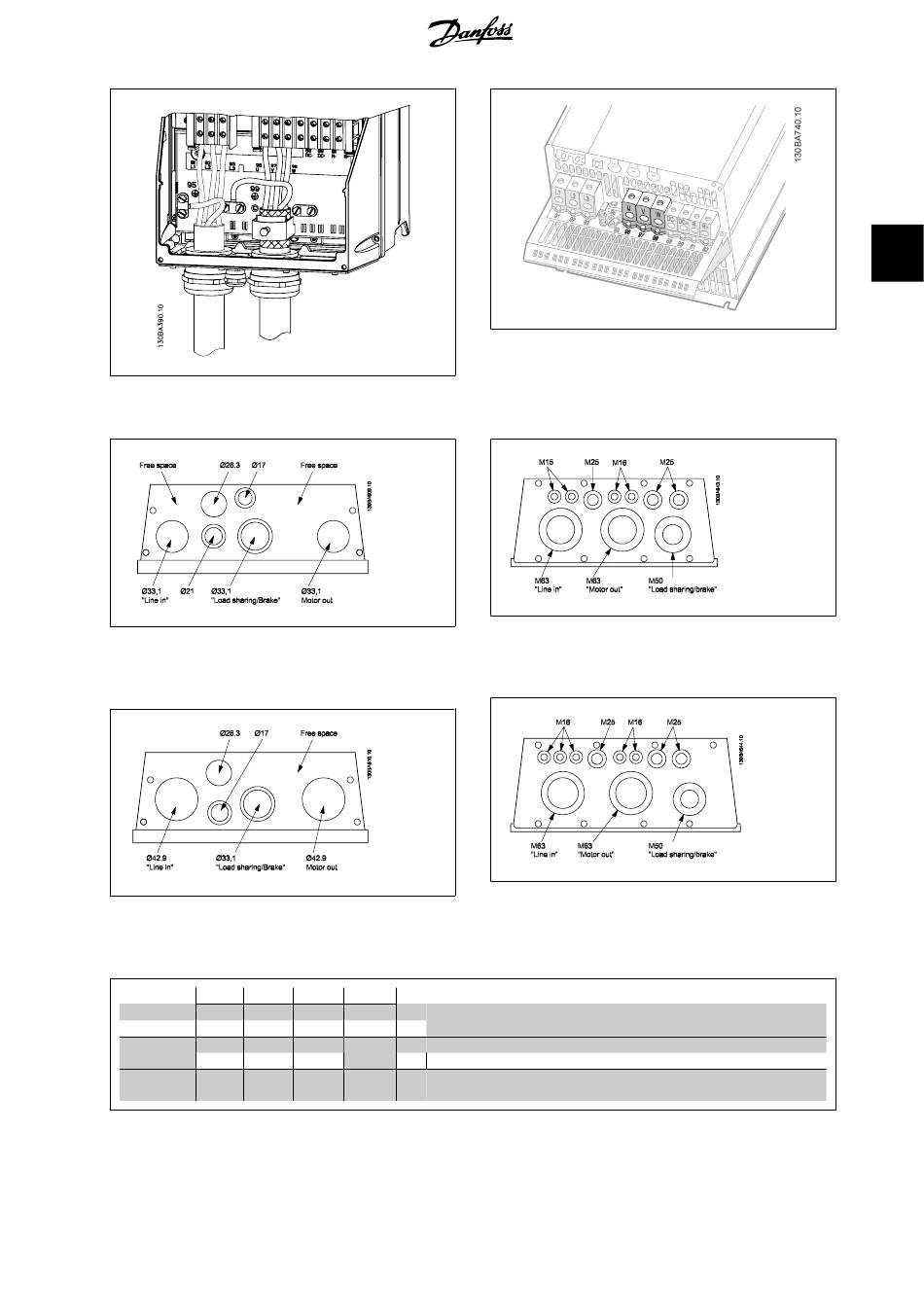

Illustration 3.14: Motor connection C1 and C2 (IP 21/ NEMA Type 1 and
IP 55/66/ NEMA Type 12) enclosure
Illustration 3.16: Cable entry holes for enclosure B1. The suggested use
of the holes are purely recommendations and other solutions are pos-
sible.
Illustration 3.17: Cable entry holes for enclosure B2. The suggested use
of the holes are purely recommendations and other solutions are pos-
sible.
Term. no. 96
U
U1
W2
U1
1) Protected Earth Connection
97 98 99
Motor voltage 0-100% of mains voltage.
V W 1)
PE
3 wires out of motor
V1 W1 Delta-connected
PE 1)
U2 V2 6 wires out of motor
V1 W1 1) Star-connected U2, V2, W2
PE
U2, V2 and W2 to be interconnected separately.
MG.33.AB.02 - VLT is a registered Danfoss trademark
Illustration 3.15: Motor connection for C3 and C4 enclosure.
Illustration 3.18: Cable entry holes for enclosure C1. The suggested use
of the holes are purely recommendations and other solutions are pos-
sible.
Illustration 3.19: Cable entry holes for enclosure C2. The suggested use
of the holes are purely recommendations and other solutions are pos-
sible.
