Scan Combiflex 800 Propane - Manual

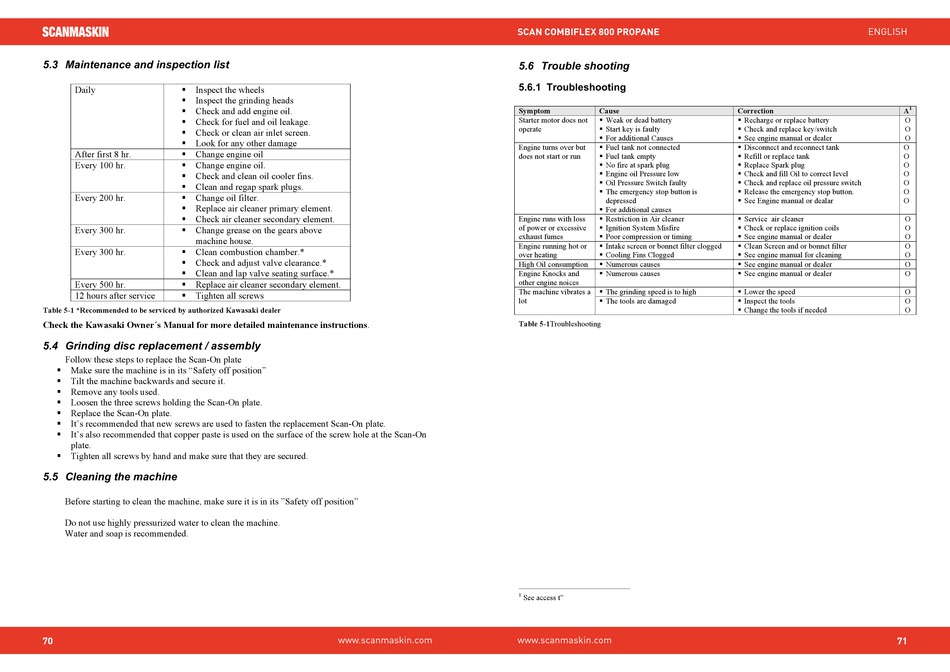

5.3 Maintenance and inspection list

Daily § Inspect the wheels
§ Inspect the grinding heads
§ Check and add engine oil.
§ Check for fuel and oil leakage.
§ Check or clean air inlet screen.
§ Look for any other damage
After first 8 hr. § Change engine oil
Every 100 hr. § Change engine oil.
§ Check and clean oil cooler fins.
§ Clean and regap spark plugs.
Every 200 hr. § Change oil filter.
§ Replace air cleaner primary element.
§ Check air cleaner secondary element.
Every 300 hr. § Change grease on the gears above
machine house.
Every 300 hr. § Clean combustion chamber.*
§ Check and adjust valve clearance.*
§ Clean and lap valve seating surface.*
Every 500 hr. § Replace air cleaner secondary element.
12 hours after service § Tighten all screws
Table 5-1 *Recommended to be serviced by authorized Kawasaki dealer
Check the Kawasaki Owner´s Manual for more detailed maintenance instructions.

5.4 Grinding disc replacement / assembly

Follow these steps to replace the Scan-On plate
§ Make sure the machine is in its "Safety off position"
§ Tilt the machine backwards and secure it.
§ Remove any tools used.
§ Loosen the three screws holding the Scan-On plate.
§ Replace the Scan-On plate.
§ It's recommended that new screws are used to fasten the replacement Scan-On plate.
§ It's also recommended that copper paste is used on the surface of the screw hole at the Scan-On
plate.
§ Tighten all screws by hand and make sure that they are secured.

5.5 Cleaning the machine

Before starting to clean the machine, make sure it is in its "Safety off position"
Do not use highly pressurized water to clean the machine.
Water and soap is recommended.
- 70 -
70
SCAN COMBIFLEX 800 PROPANE
www.scanmaskin.com www.scanmaskin.com
Scan Combiflex 800 Propane - Manual
5.6 Trouble shooting

5.6.1 Troubleshooting

Symptom Cause
Starter motor does not § Weak or dead battery
operate § Start key is faulty
§ For additional Causes
Engine turns over but § Fuel tank not connected
does not start or run § Fuel tank empty
§ No fire at spark plug
§ Engine oil Pressure low
§ Oil Pressure Switch faulty
§ The emergency stop button is
depressed
§ For additional causes
Engine runs with loss § Restriction in Air cleaner
of power or excessive § Ignition System Misfire
exhaust fumes § Poor compression or timing
Engine running hot or § Intake screen or bonnet filter clogged
over heating § Cooling Fins Clogged
High Oil consumption § Numerous causes
Engine Knocks and § Numerous causes
other engine noices
The machine vibrates a § The grinding speed is to high
lot § The tools are damaged
Table 5-1Troubleshooting
1
See access t"
- 71 -
ENGLISH
1
Correction A
§ Recharge or replace battery O
§ Check and replace key/switch O
§ See engine manual or dealer O
§ Disconnect and reconnect tank O
§ Refill or replace tank O
§ Replace Spark plug O
§ Check and fill Oil to correct level O
§ Check and replace oil pressure switch O
§ Release the emergency stop button. O
§ See Engine manual or dealar O
§ Service air cleaner O
§ Check or replace ignition coils O
§ See engine manual or dealer O
§ Clean Screen and or bonnet filter O
§ See engine manual for cleaning O
§ See engine manual or dealer O
§ See engine manual or dealer O
§ Lower the speed O
§ Inspect the tools O
§ Change the tools if needed O
71
