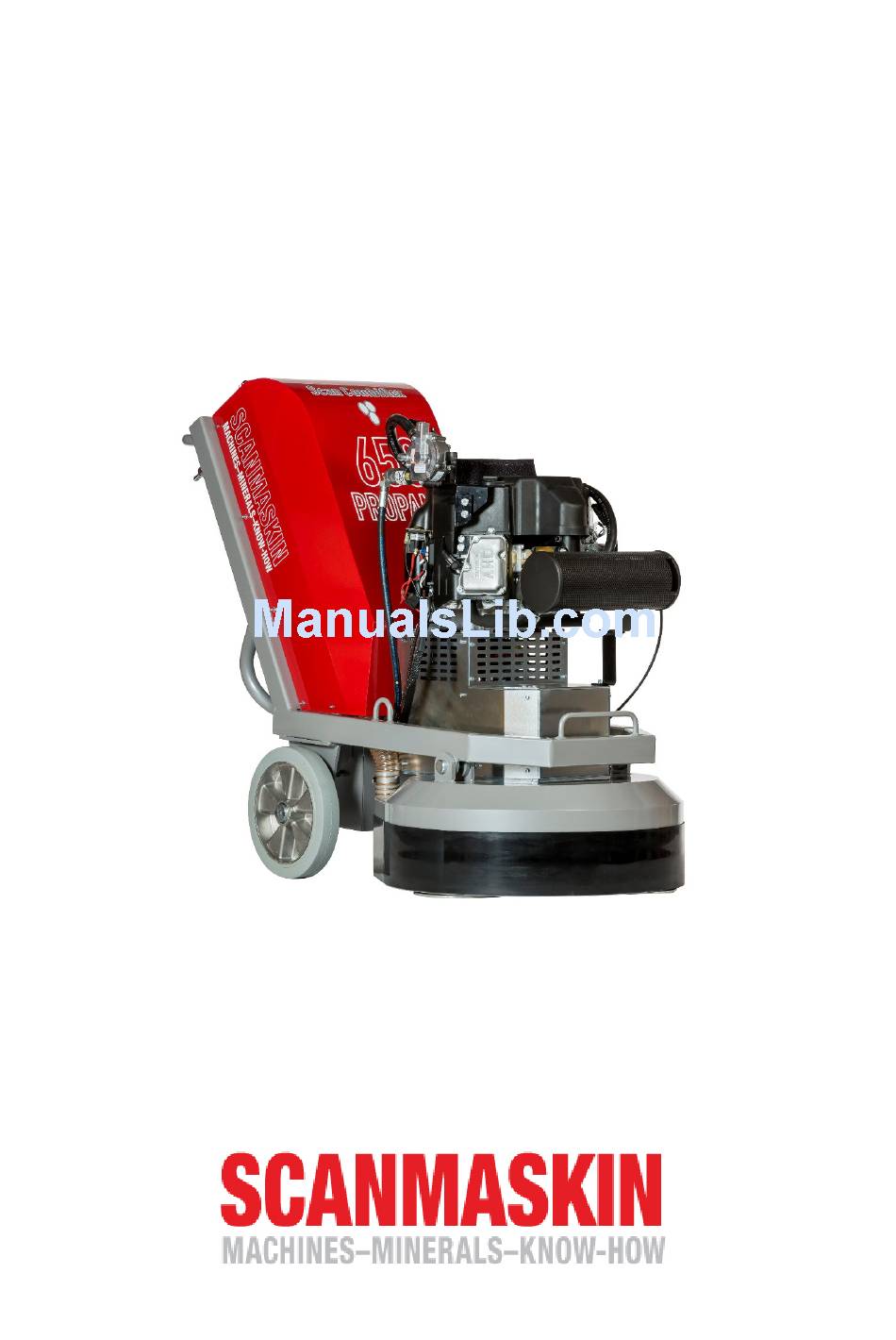

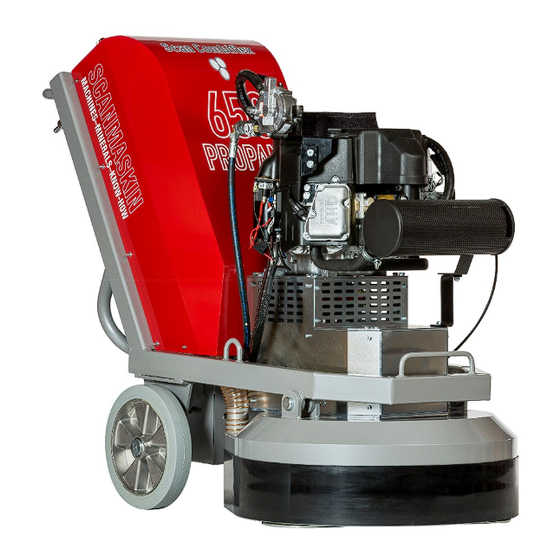

- Page 1 ScanCombiflex 650 PROPANE Manual...
- Page 2 ScanCombiflex 650 PROPANE - Manual www.scanmaskin.com Dear Customer! Thank you for choosing Scanmaskin as your supplier. We wish you all the best with your new ScanCombiflex™ 650 PROPANE and hope that it lives up to your expectations. Scanmaskin Sverige AB Claes-Göran Bergstrand...
- Page 3 ScanCombiflex 650 PROPANE - Manual Important Information! This Manual only concerns the floor grinding machines “ScanCombiflex 650 PROPANE” hereby referred to as “SC 650 PROPANE”. SC 650 PROPANE may only be used for grinding horizontal surfaces approved by Scanmaskin Sweden AB.
-
Page 4: Table Of Contents
ScanCombiflex 650 PROPANE - Manual Table of Contents Specifications ............................2 Power specifications ........................2 Mechanical specifications ......................3 1.2.1 Water connection ........................3 Tools ............................. 4 Range of application ........................4 Scope of supply ..........................5 Overview ............................6 Safety Regulations .......................... - Page 5 ScanCombiflex 650 PROPANE - Manual 4.12 Adjusting grinding speed ......................23 4.13 Safety off position ........................23 4.14 Grinding ..........................23 4.15 Changing tools ........................24 Maintenance ............................25 Precautions ..........................25 Daily inspection prior to operation .................... 25 Maintenance and inspection list ....................26 Grinding disc replacement / assembly ..................
-
Page 6: Specifications
ScanCombiflex 650 PROPANE - Manual 1 Specifications 1.1 Power specifications To find the specifications that apply to your machine, check the information plate at the back of the machine Engine Kawasaki FX603 18hp / 13,2kW 12VDC 45Ah Start battery Next to start motor... -
Page 7: Mechanical Specifications
ScanCombiflex 650 PROPANE - Manual 1.2 Mechanical specifications Model SC 650 PROPANE 26” / 650 mm Grinding diameter 8,3” / 210 mm Grinding plate diameter 600 – 960 RPM Grinding plate speed Mass 840lbs / 382 kg Gear barrel Synchronized... -
Page 8: Tools
Standard SC 650 PROPANE Figure 1-1 1.3 Tools The machine must be equipped with tools approved by Scanmaskin Sweden AB before operation. See “Grinding guide” for information about available tools and “4.15Changing tools” for information about how to change the tools. -
Page 9: Scope Of Supply
ScanCombiflex 650 PROPANE - Manual Typical applications • Removal of old coatings, carpets, putty from hard surfaces • Removal of undulated concrete surfaces • Preparation of the surface for coatings • Polishing of the surface • Removal of coating defects •... -
Page 10: Overview
ScanCombiflex 650 PROPANE - Manual 1.6 Overview Figure 1-3 Overview of SC 650 PROPANE Item Description Reference / art no. Handle 570627 Sprint to adjust handle 570039 Water connection 04.7Water connection Nameplate Dust connection 780049 (O-ring) Propane hose Propane tank... -
Page 11: Safety Regulations
ScanCombiflex 650 PROPANE - Manual 2 Safety Regulations Read this entire chapter carefully! Failure to comply with safety regulations may result in serious injuries or damages. 2.1 Legend Notation regarding safety Notation regarding electrical safety Notation regarding safety during transport... -
Page 12: Propane Safety
ScanCombiflex 650 PROPANE - Manual 2.3 Propane safety Propane is a flammable gas whose vapors are heavier than air. As in the case with gasoline, propane can explode if the proper cautions are not heeded. Propane is odorized with an agent having a distinct odor that is recognizable at very low concentrations. -
Page 13: Local Agencies And Regulations
ScanCombiflex 650 PROPANE - Manual 1. Stop the engine: Push the throttle to the stop position turn the key switch to the off position. 2. Shut off the service valve on the propane cylinder. 3. Move the floor machine to a well-ventilated area. -
Page 14: Organizational Measures
ScanCombiflex 650 PROPANE - Manual • OSHA For propane powered machines used indoors, the Occupational Health and Safety Administration (OSHA) has established a limit of 50 ppm CO for 8-hour time weighted average (TWA) in ambient air and is considering a limit of 800 ppm CO in exhaust flow. - Page 15 To perform maintenance work correctly it is imperative to be equipped with the proper tools for the task in question. Repairs may only be made by Scanmaskin Sweden AB certified service technicians. Some grinding work may generate sparks under certain circumstances. Personnel working with the machine must therefore be aware of the risk of fire and how to handle a fire situation properly.
-
Page 16: Personnel Qualification
ScanCombiflex 650 PROPANE - Manual 2.9 Personnel qualification Fundamental duties: • Work on the machine may only be undertaken by trained personnel. • Specify clearly the responsibilities of personnel for operation, setting up, servicing and maintenance work! • Make sure that only authorized personnel operate or work on the machine! •... -
Page 17: Electrical Safety
ScanCombiflex 650 PROPANE - Manual Do not switch off or remove the exhaust and or the ventilation devices whilst the machine is running! All persons in the proximity of the machine must wear ear and eye protection as well as safety shoes. -
Page 18: Refilling Propane Tanks
ScanCombiflex 650 PROPANE - Manual 2.13 Refilling propane tanks The proper filling of propane tanks is a subject so important that it warrants special attention. Propane tanks should only be filled by qualified propane dealers. • Most important, propane tanks should be filled no more than 80% of their rated capacity. -
Page 19: Definition Of The "Safety Off Position
ScanCombiflex 650 PROPANE - Manual 2.16 Definition of the “Safety off position” The machine is in a safe condition where it cannot be any hazard. How to set the machine in the Safety off position: 1. Turn off the machine, with minimum throttle and remove the Start key 2. -
Page 20: Safety Regarding Transport
ScanCombiflex 650 PROPANE - Manual 2.18 Safety regarding transport Always remove the tools before transport. The tools may fall of or damage the surface the machine is transported along. 2.18.1 Manual transport When transporting the machine manually be observant about ramps and/or edges. -
Page 21: Transport
ScanCombiflex 650 PROPANE - Manual 3 Transport 3.1 Precautions Read “2.18 Safety regarding transport” before attempting to transport the machine. 3.2 Manual transport Detach the tools according to the instructions in “4.15Changing tools”. Push the handle downwards to lift the gear barrel about 10 cm (4”) from the ground. -
Page 22: Operation
ScanCombiflex 650 PROPANE - Manual 4 Operation 4.1 Preparation Before first start-up make sure that the oil level is correct by checking the oil gauge filler. Choose engine oil that follows API Service Classification: SF, SG, SH, SJ or SL. -
Page 23: Using The Handle
ScanCombiflex 650 PROPANE - Manual Figure 4-1 Illustrates the rotation of the grinding heads versus the gear barrel. 4.4 Using the handle Figure 4-2 Secure the handle Figure 4- Figure 4-4 3 Handle upraised Handle in working position Figure 4-5... -
Page 24: Control Panel
ScanCombiflex 650 PROPANE - Manual Figure Description Secure the handle Secure the handle in three positions Handle upraised In this position it´s possible to lean the machine backwards and change grinding tools. Also the position to move around the machine leaning back. -
Page 25: Propane Tank
ScanCombiflex 650 PROPANE - Manual Description of the control panel. Table 4-1 4.6 Propane tank Figure 4-5 Propane tank . Item Part Description Valve Turn clockwise to close Quick connection Connection to engine Straps Secure propane tank Sight gauge Level of propane left 4.7 Water connection... -
Page 26: Gas Throttle
ScanCombiflex 650 PROPANE - Manual 4.8 Gas throttle Figure 4-6 Gas Throttle Description Hit nob for fast stopping Lift & turn to adjust speed 4.9 Start up See ”4.1 Preparation Before first start-up make sure that the oil level is correct by checking the oil gauge filler. -
Page 27: Stop
ScanCombiflex 650 PROPANE - Manual Make sure that the throttle nob is in its lower position, this is done by pushing it down. Turn the start key clockwise until the start motor engage. Normally the engine will start within 3 seconds. Do not run the electric starter continuously for more than 6 seconds, otherwise the battery may discharge quickly. -
Page 28: Changing Tools
ScanCombiflex 650 PROPANE - Manual 4.15 Changing tools Before changing tools, read “2.17 Safety regarding maintenance”. This illustration shows how to change the tools. Figure 4-7 How to fit the diamond segments on the Scan-On plate Insert the segment at the widest part of the slot... -
Page 29: Maintenance
ScanCombiflex 650 PROPANE - Manual 5 Maintenance 5.1 Precautions Set the machine into the Safety off position before beginning any work on the machine. See “2.16 Definition of the “Safety off position””. Read “2.11 Electrical safety” before beginning any maintenance work. -
Page 30: Maintenance And Inspection List
ScanCombiflex 650 PROPANE - Manual 5.3 Maintenance and inspection list Daily Inspect the wheels Inspect the grinding heads Check and add engine oil. Check for fuel and oil leakage. Check or clean air inlet screen. Look for any other damage After first 8 hr. -
Page 31: Troubleshooting
ScanCombiflex 650 PROPANE - Manual 5.6 Trouble shooting 5.6.1 Troubleshooting Symptom Cause Correction Starter motor does not Weak or dead battery Recharge or replace battery operate Start key is faulty Check and replace key/switch For additional Causes See engine manual or dealer... -
Page 32: Spare Parts
ScanCombiflex 650 PROPANE - Manual 6 Spare Parts Grinding head - 28 -... -
Page 33: Center Axis
ScanCombiflex 650 PROPANE - Manual Center axis 581087 - 29 -... - Page 34 ScanCombiflex 650 PROPANE - Manual 6.2 Grining spindle Figure 6.2 Grinding spindle - 30 -...
- Page 35 ScanCombiflex 650 PROPANE - Manual 6.3 Grinding head - 31 -...
-
Page 36: Reduction
ScanCombiflex 650 PROPANE - Manual 6.1 Reduction 581050 581051 560501 - 32 -... -
Page 37: Warranty
This product from Scanmaskin Sweden AB comes with a twelve month warranty. If the product does not function satisfactorily during this period, Scanmaskin will return the product to full working order for normal use which the product is intended for – with no charge for labour or spare parts, according to the following conditions: The warranty only applies to persons that have legal right to the equipment during the warranty period. -
Page 38: Eu Declaration
ScanCombiflex 650 PROPANE - Manual 8 EU Declaration Declaration of conformity CE Scanmaskin Sweden AB Manufacturer Heljesvägen 10 Address 437 36Lindome Sweden Grinding machine Product ScanCombiflex 650 PROPANE Name _________ Serialnumber Standards used including number 2006/42/EG Machine directives 2004/108/EC 2006/95/EG... -
Page 39: Alphabetical Reference
ScanCombiflex 650 PROPANE - Manual 9 Alphabetical reference Application range of ....................................5 typical ..................................... 5 Cleaning ....................................26 Contact information................................... 38 Control panel ..................................... 20 EU Declaration ..................................36 Grinding disc Replacement ..................................26 Maintenance Daily ..................................... 25 Inspection list ..................................26 Precautions ................................... -
Page 40: Contact Information
ScanCombiflex 650 PROPANE - Manual 10 Contact information Sweden (Head Office) Heljesvägen 10 Box 187 SE-437 22 Lindome Phone: +46 (0) 31 99 49 70 Fax: +46 (0) 31 99 48 70 E-mail: info@scanmaskin.se Website: www.scanmaskin.se Denmark Torvegade 22 DK-7330 Brande...
