Scan Combiflex 800 Propane - Manual

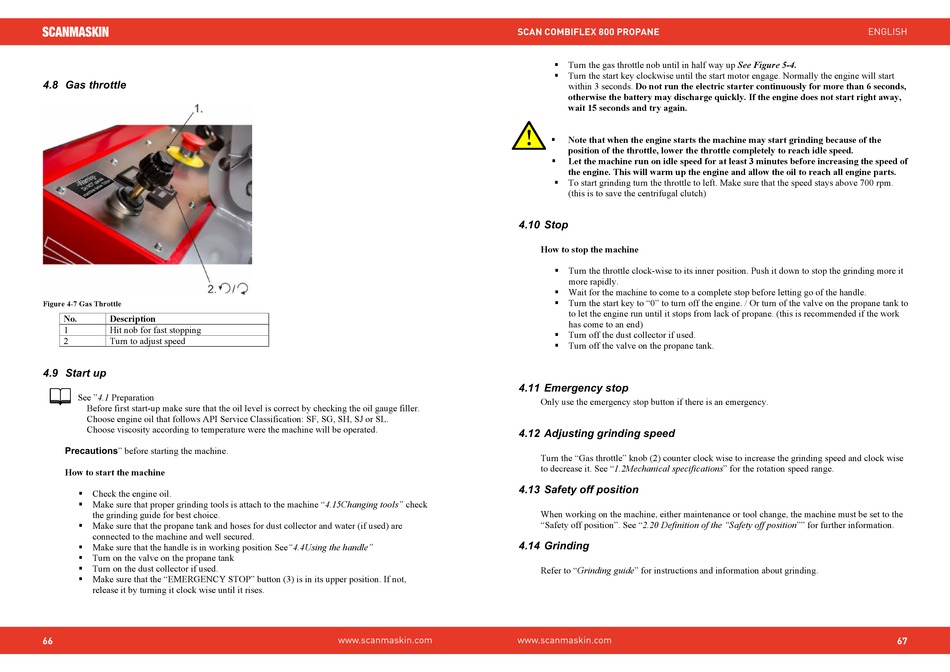

4.8 Gas throttle

Figure 4-7 Gas Throttle
No. Description
1 Hit nob for fast stopping
2 Turn to adjust speed

4.9 Start up

See "4.1 Preparation
Before first start-up make sure that the oil level is correct by checking the oil gauge filler.
Choose engine oil that follows API Service Classification: SF, SG, SH, SJ or SL.
Choose viscosity according to temperature were the machine will be operated.
Precautions" before starting the machine.
How to start the machine
§ Check the engine oil.
§ Make sure that proper grinding tools is attach to the machine "4.15Changing tools" check
the grinding guide for best choice.
§ Make sure that the propane tank and hoses for dust collector and water (if used) are
connected to the machine and well secured.
§ Make sure that the handle is in working position See"4.4Using the handle"
§ Turn on the valve on the propane tank
§ Turn on the dust collector if used.
§ Make sure that the "EMERGENCY STOP" button (3) is in its upper position. If not,
release it by turning it clock wise until it rises.
- 66 -
66
SCAN COMBIFLEX 800 PROPANE
www.scanmaskin.com www.scanmaskin.com
Scan Combiflex 800 Propane - Manual
§ Turn the gas throttle nob until in half way up See Figure 5-4.
§ Turn the start key clockwise until the start motor engage. Normally the engine will start
within 3 seconds. Do not run the electric starter continuously for more than 6 seconds,
otherwise the battery may discharge quickly. If the engine does not start right away,
wait 15 seconds and try again.
Note that when the engine starts the machine may start grinding because of the
§
position of the throttle, lower the throttle completely to reach idle speed.
Let the machine run on idle speed for at least 3 minutes before increasing the speed of
§
the engine. This will warm up the engine and allow the oil to reach all engine parts.
§ To start grinding turn the throttle to left. Make sure that the speed stays above 700 rpm.
(this is to save the centrifugal clutch)

4.10 Stop

How to stop the machine
§ Turn the throttle clock-wise to its inner position. Push it down to stop the grinding more it
more rapidly.
§ Wait for the machine to come to a complete stop before letting go of the handle.
§ Turn the start key to "0" to turn off the engine. / Or turn of the valve on the propane tank to
to let the engine run until it stops from lack of propane. (this is recommended if the work
has come to an end)
§ Turn off the dust collector if used.
§ Turn off the valve on the propane tank.

4.11 Emergency stop

Only use the emergency stop button if there is an emergency.

4.12 Adjusting grinding speed

Turn the "Gas throttle" knob (2) counter clock wise to increase the grinding speed and clock wise
to decrease it. See "1.2Mechanical specifications" for the rotation speed range.

4.13 Safety off position

When working on the machine, either maintenance or tool change, the machine must be set to the
"Safety off position". See "2.20 Definition of the "Safety off position"" for further information.

4.14 Grinding

Refer to "Grinding guide" for instructions and information about grinding.
