Service Manual – SC401, SCRUBTEC 344

Shop Measurements

The following tables contain some "real world" shop voltage measurements to help you recognize what
"normal" looks like All voltage values were measured with the black (Negative) voltmeter lead connected to
the main battery negative unless otherwise specified.

Main Machine Controller (EB1)

Battery volts at battery, key on = 24 24V
Power Supply

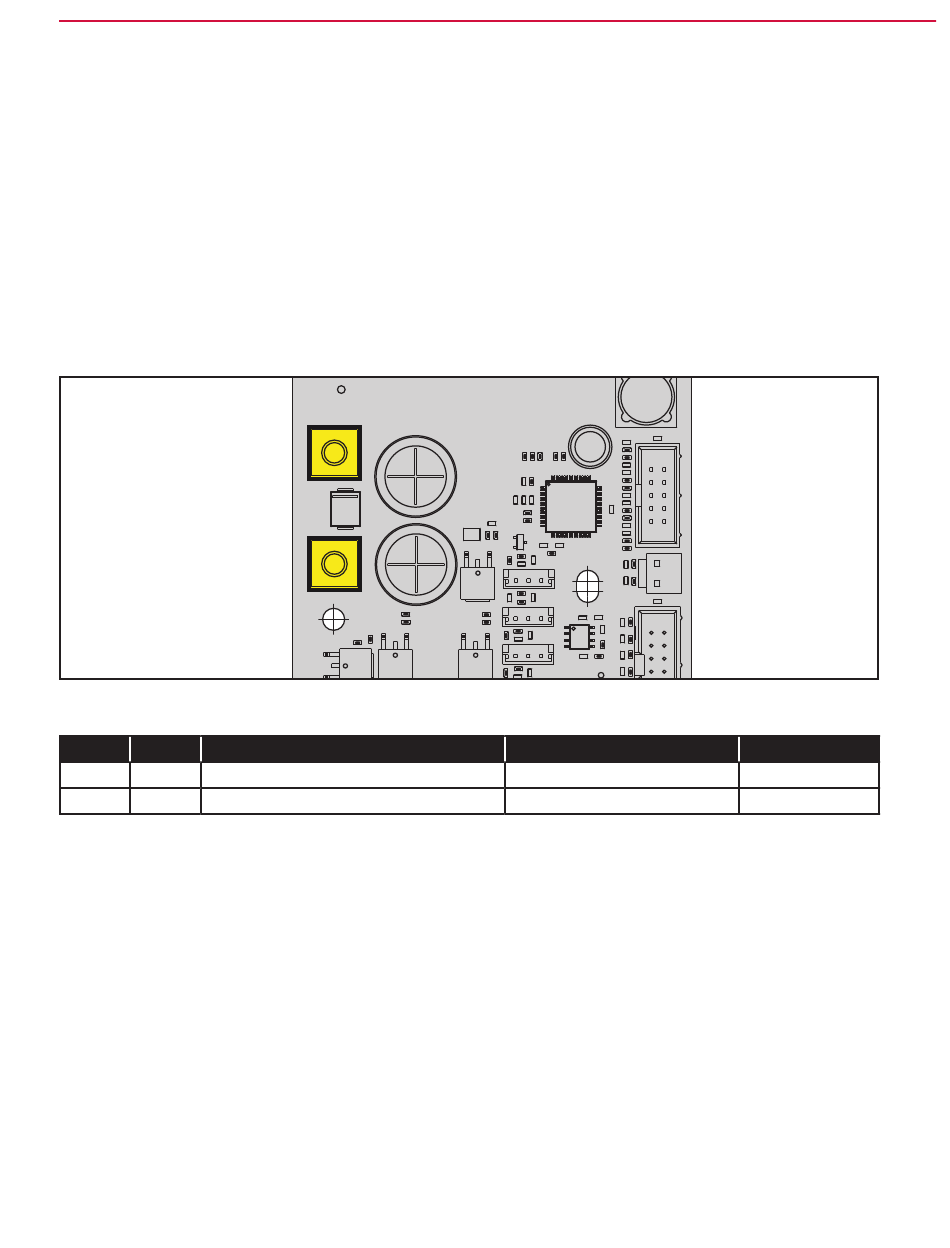

Figure 40:
PIN
Color
Description
Red
Main machine controller power supply + 23.83 V
B+
B-
Black
Main machine controller power supply - 0.039 V
+
-
04 - Control System - Battery
Measured
55
Comments
Vac ON
Vac ON
