Service Manual – SC401, SCRUBTEC 344

Container and Vacuum Motor Disassembly/Assembly

Disassembly
1 Disassemble the vacuum system motor unit as shown in the previous paragraph

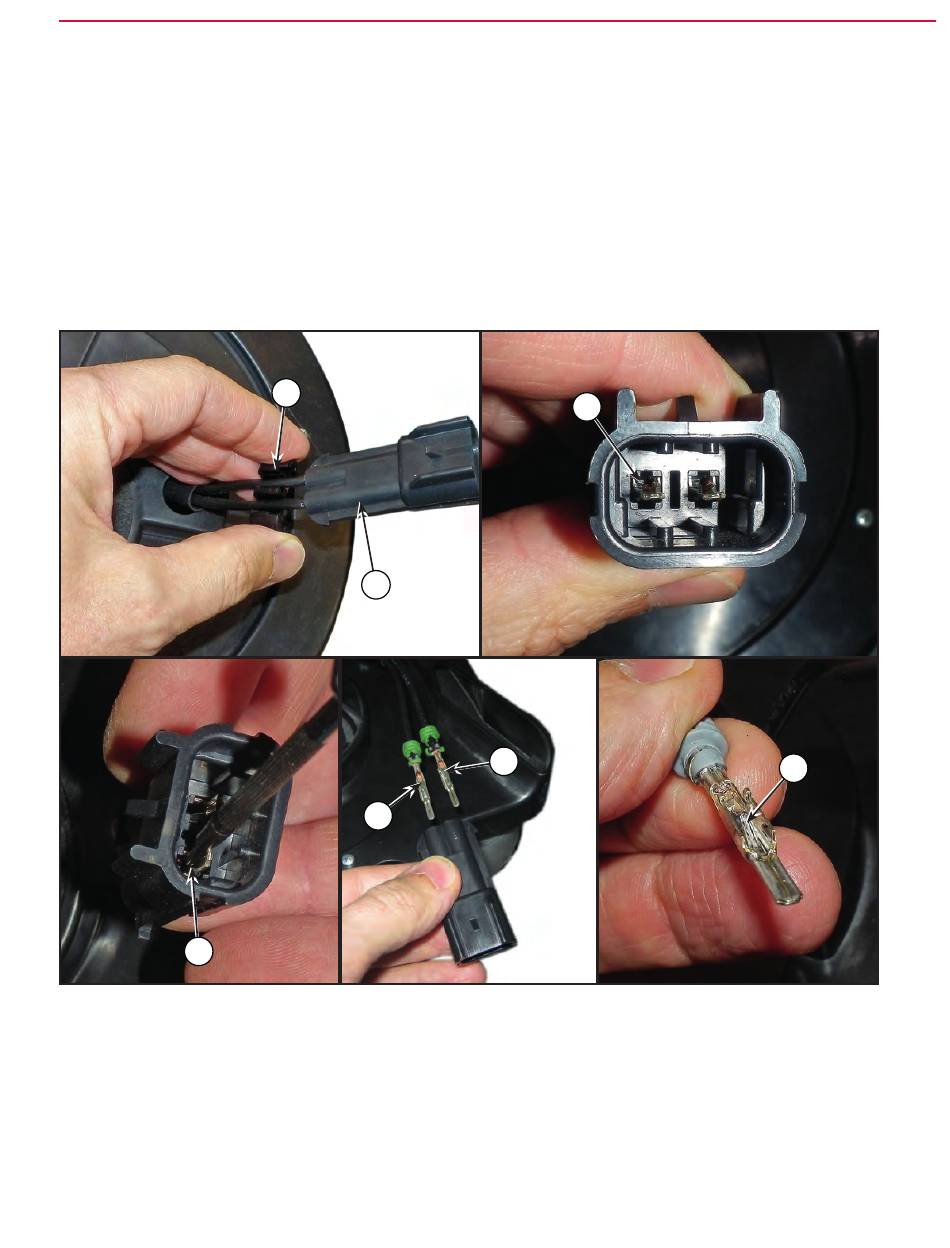

2 At the workbench, remove the terminals lock (A) from the connector (B)
3 With a little screwdriver (C) move the splane lock (D) for disengaging the terminals from the connector
4 Remove the two terminals (E)
5 Carefully, slightly lift the splane lock (D), previously pressed, to restore it
C
Figure 7:
A
B
E
D
E
40 - Recovery System 165
