Nilfisk-Advance SCRUBTEC 344 Series Service Manual page 168

Service Manual – SC401, SCRUBTEC 344
Container and Vacuum Motor Disassembly/Assembly (continues)
Assembly

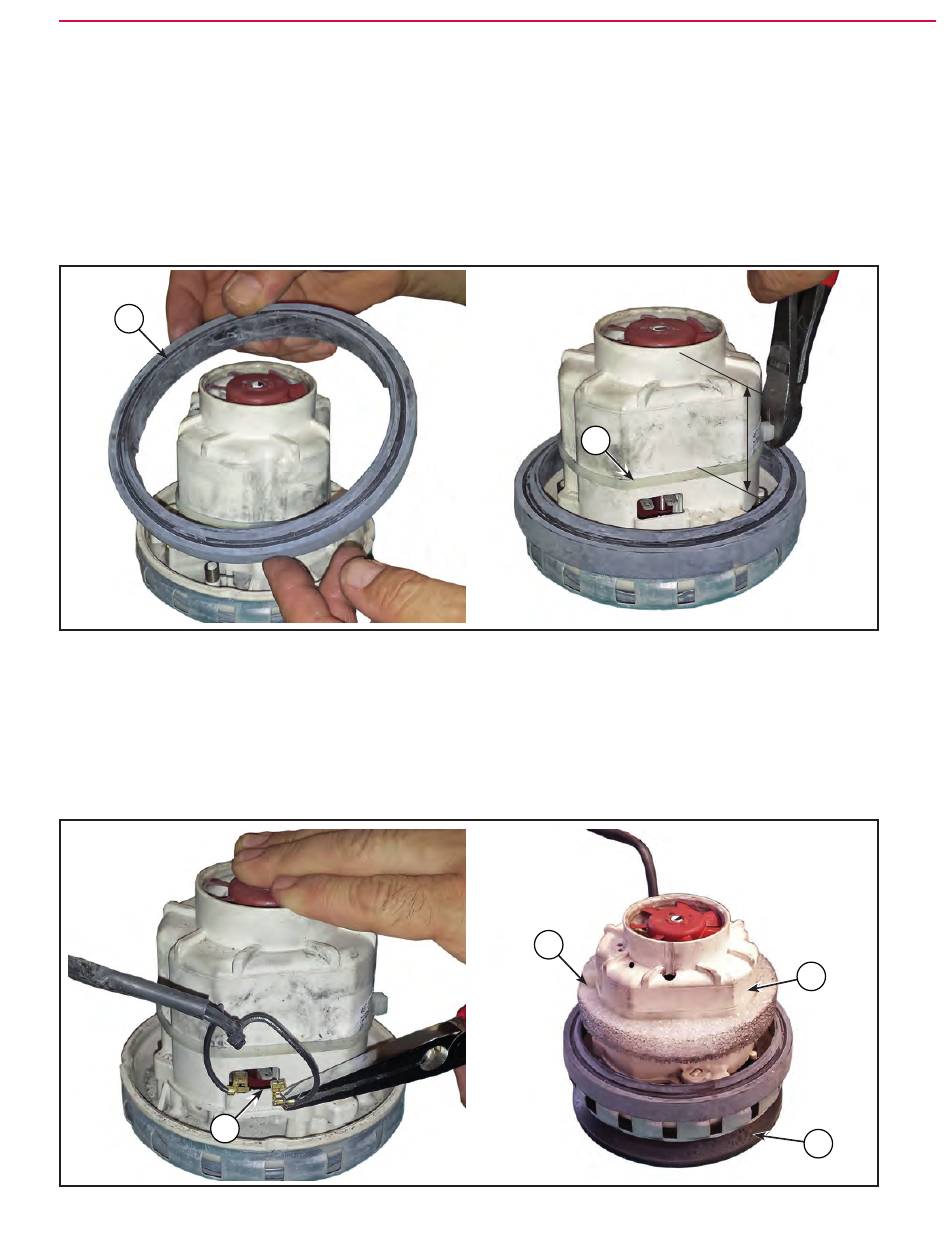

13 Position the gasket (Q) on the vacuum system motor Check that the gasket is reassembled with the
correct orientation (slots)
14 Install the clamp (R) The clamp must be positioned at 2 2 in (55 mm) from the upper surface, around
the entire circumference
Q
Figure 12:
15 Connect the power connections (S) and position the gasket (T) below the vacuum system motor Check
that the gasket is reassembled with the correct orientation
16 Position the sponge ring (U) flush against the clamp (R). Check that the wiring is inside the sponge ring
and that the sponge is correctly oriented
17 Position the clamp (W) together with the wiring
S
Figure 13:
2.2 in (55 mm)
R
U
40 - Recovery System 168
W
T
