Service Manual – SC401, SCRUBTEC 344

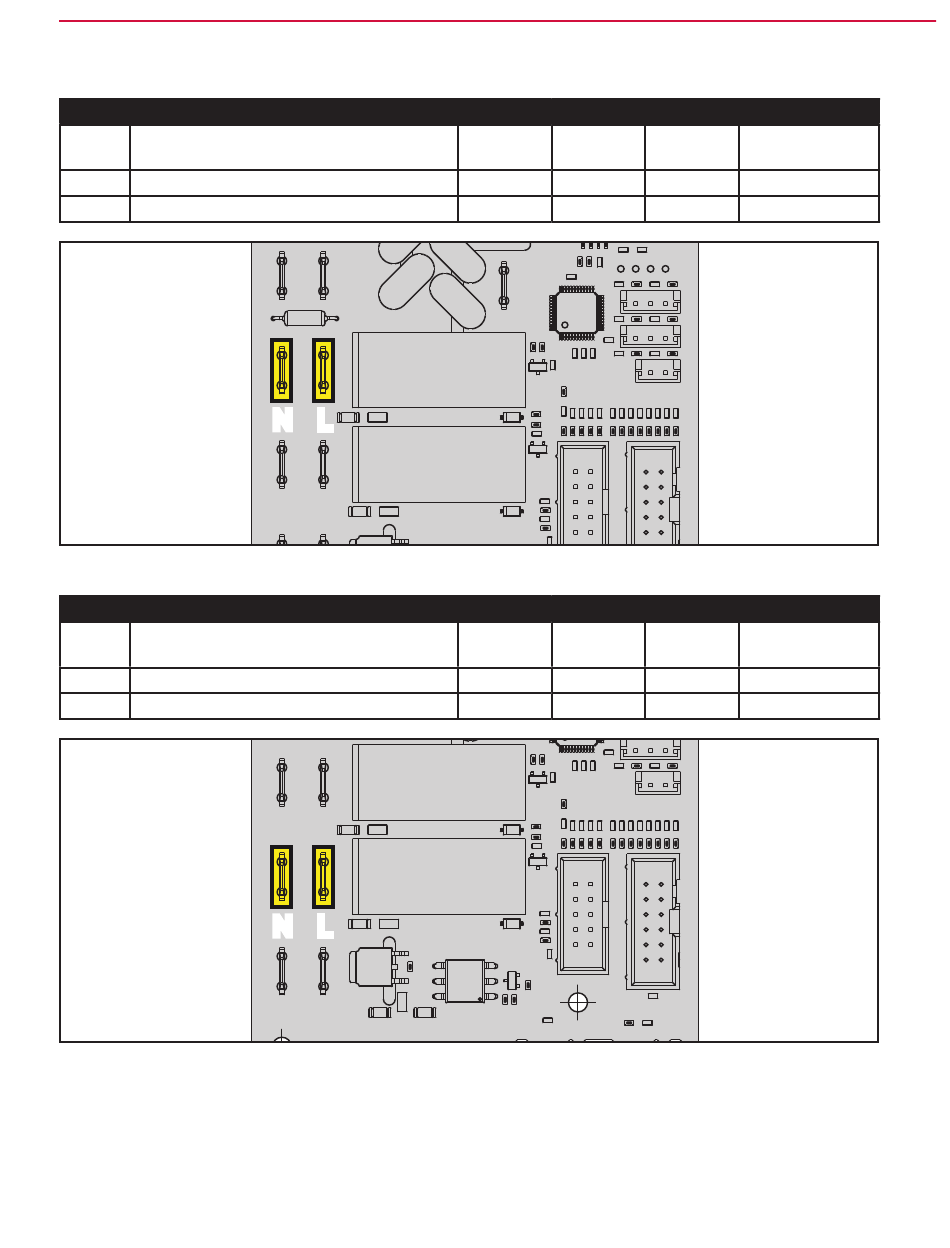

Main Machine Controller (EB1) Connectors (continues)
OUT1: type 2 x faston 6,3 x 0,8 mm
PIN Description
Brush output
1
Brush output
2
Figure 21:
OUT2: type 2 x faston 6,3 x 0,8 mm
PIN Description
Vacuum output
1
Vacuum output
2
Figure 22:
N L N L
N L N L
Controller
V ref.
in/out
Out 230Vac
Out 230Vac
Controller
V ref.
in/out
Out 230Vac
Out 230Vac
05 - Control System - Cord
I max. Connected to
M1+
15A
M1-
15A
I max. Connected to
M2+
5A
M2-
5A
