Hardware Installation
Connect to the System Adaptor Cable
2. Snap four protector caps over the top. This presses the wire into the
connector.
.
To
DEFINITY AUDIX
LAN connector

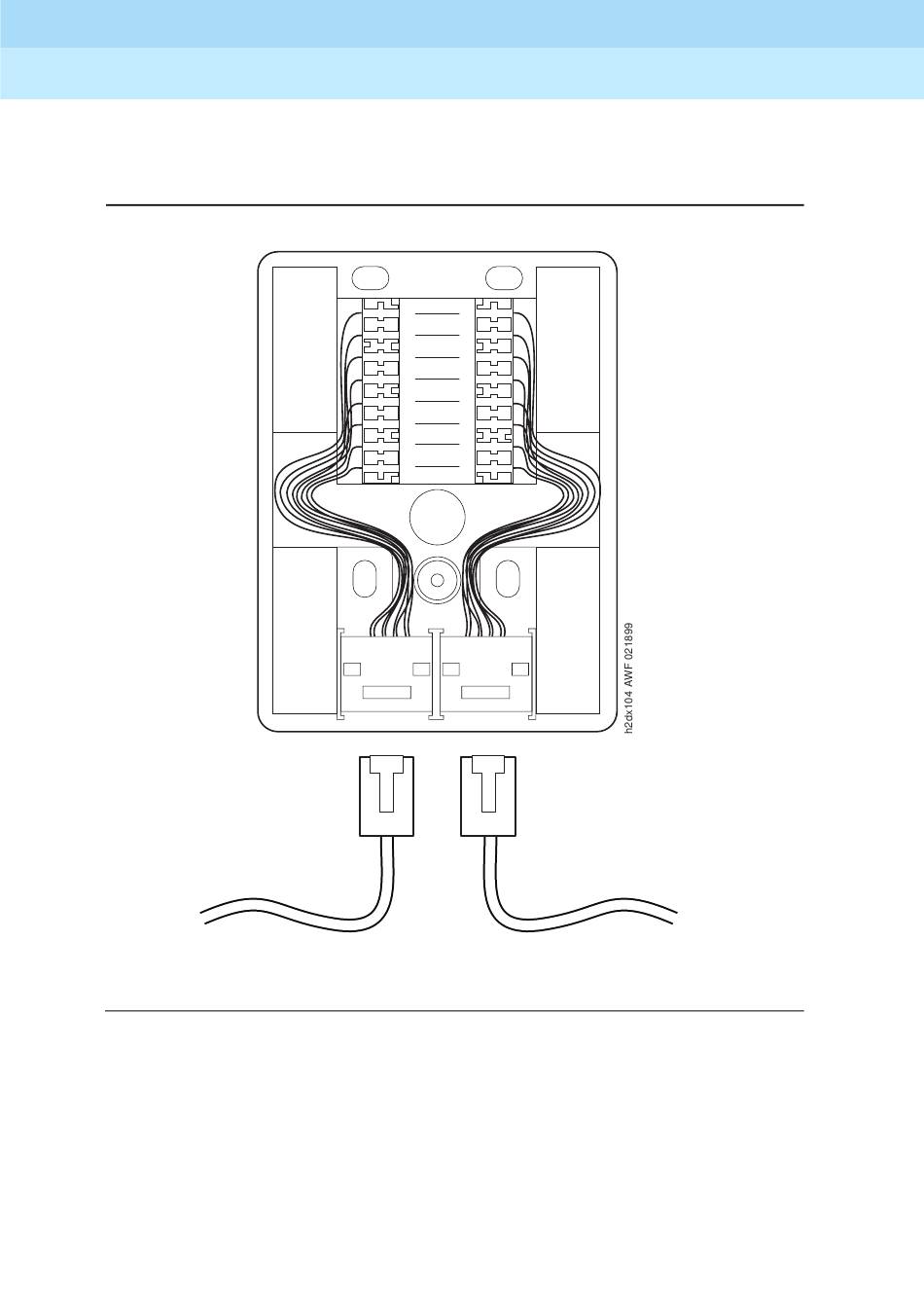

Figure 2-5. 104A Connecting Block
3. Use a D8W modular wall cord (up to 25 feet long) to connect the RJ45
connector from the DEFINITY AUDIX system to the 104A connecting
block. Make this connection whether or not you activate I
Manager right away.
If the customer intends to connect a LAN to the DEFINITY AUDIX system,
the customer must supply a 10BaseT twisted pair cable with a male RJ-45
connector. The customer is responsible for connecting this cable to the
104A connecting block and to the LAN.
8
7
6
5
4
3
2
1
WE
RJ-45
connectors
Lucent-provided
D8W cord
8
7
6
5
4
3
2
1
104A
10BaseT
Customer-provided
LAN connection
Issue 1
May 1999
2-12
Message
NTUITY
