Installation and Switch Administration for G3i/G3s/G3vs/R5vs/R5si/ProLogix
Switches, TN2181 Emulation, Display Set Integration 585-300-122
2
Hardware Installation
Install the DEFINITY AUDIX System Assembly
Hard disk drive

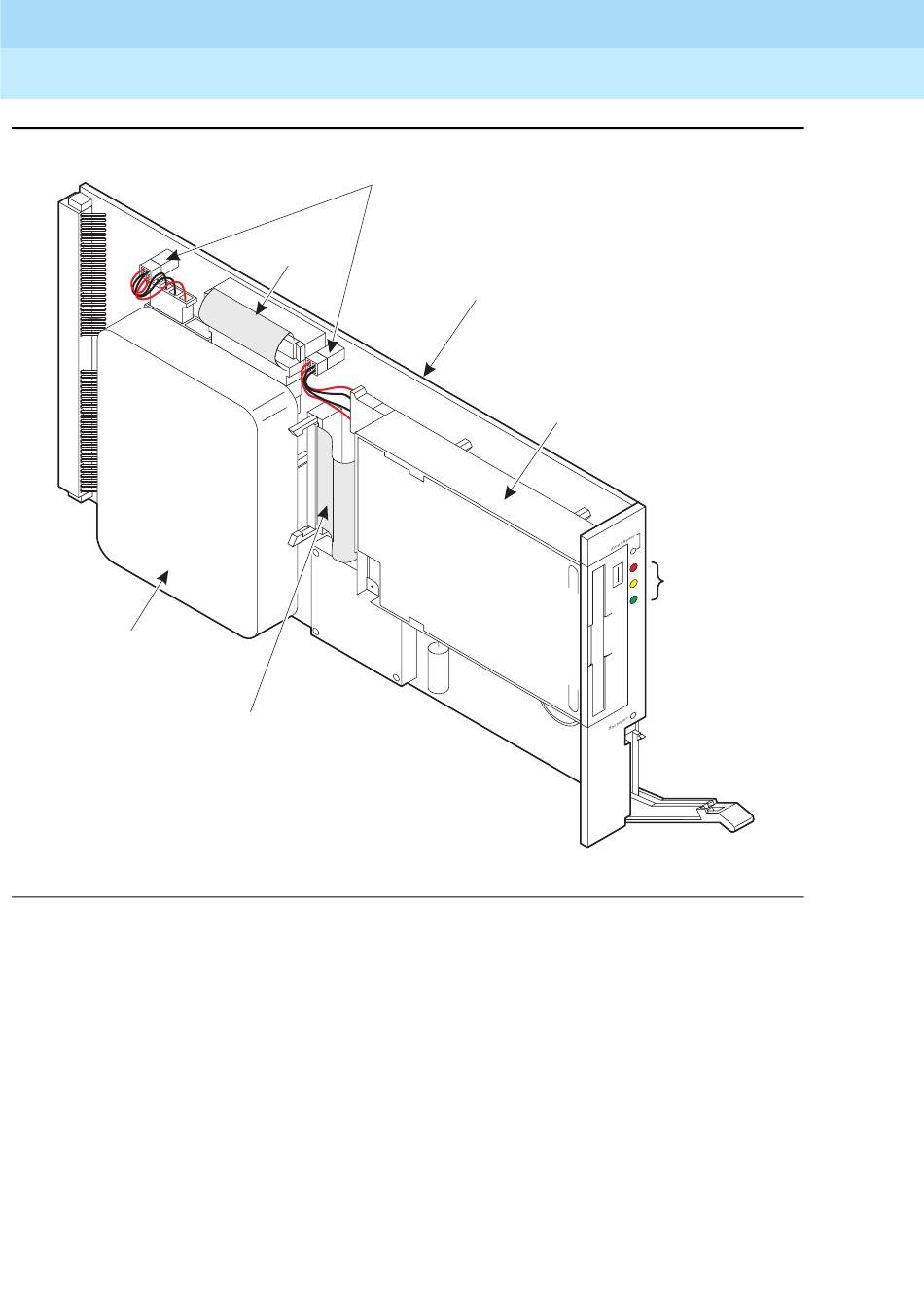

Figure 2-1. DEFINITY AUDIX System Assembly
H600-500
H600-502
H600-501
TN568
circuit pack
Magneto-optical
disk drive
ckdx568 KLC 110598
Issue 1
May 1999
2-3
LEDs
Securing
latch
