11.7 Cabinet spare parts

17
18
power supply
230 V 50 Hz
120 V 60 Hz
21
21
22
23
20
water drain
3/4" GAS F
No. Description
1 Pressure reducer
2 N.C. fill solenoid valve
3 Low pressure gauge, scale 0-12 bars,
rear fitting 1/4" GAS
4 LPS pressure transducer on low pressure inlet line
5 CE motor, 4 poles, 180 W power (for UA040DD%00)
CE motor, 4 poles, 370 W power (for UA080DD%00)
UL motor, 4 poles, 180 W power (for UA050DU%00)
UL motor, 4 poles, 370 W power (for UA090DU%00)
6 40-50 l/h pump kit, brass
80-90 l/h pump kit, brass
Valve and gasket kit for pump (for all humiFog
Direct models)
Replacement oil
7 High pressure gauge, scale 0-100 bars,
radial fitting 1/4" GAS
8 Pump high pressure switch (calibration 90 bars)
9 Temperature-controlled safety valve
10 RHP pressure transducer on high pressure outlet
line
"humiFog direct" +0300073EN rel. 1.2 - 02.05.2019
19 1
3
11
5
7 8

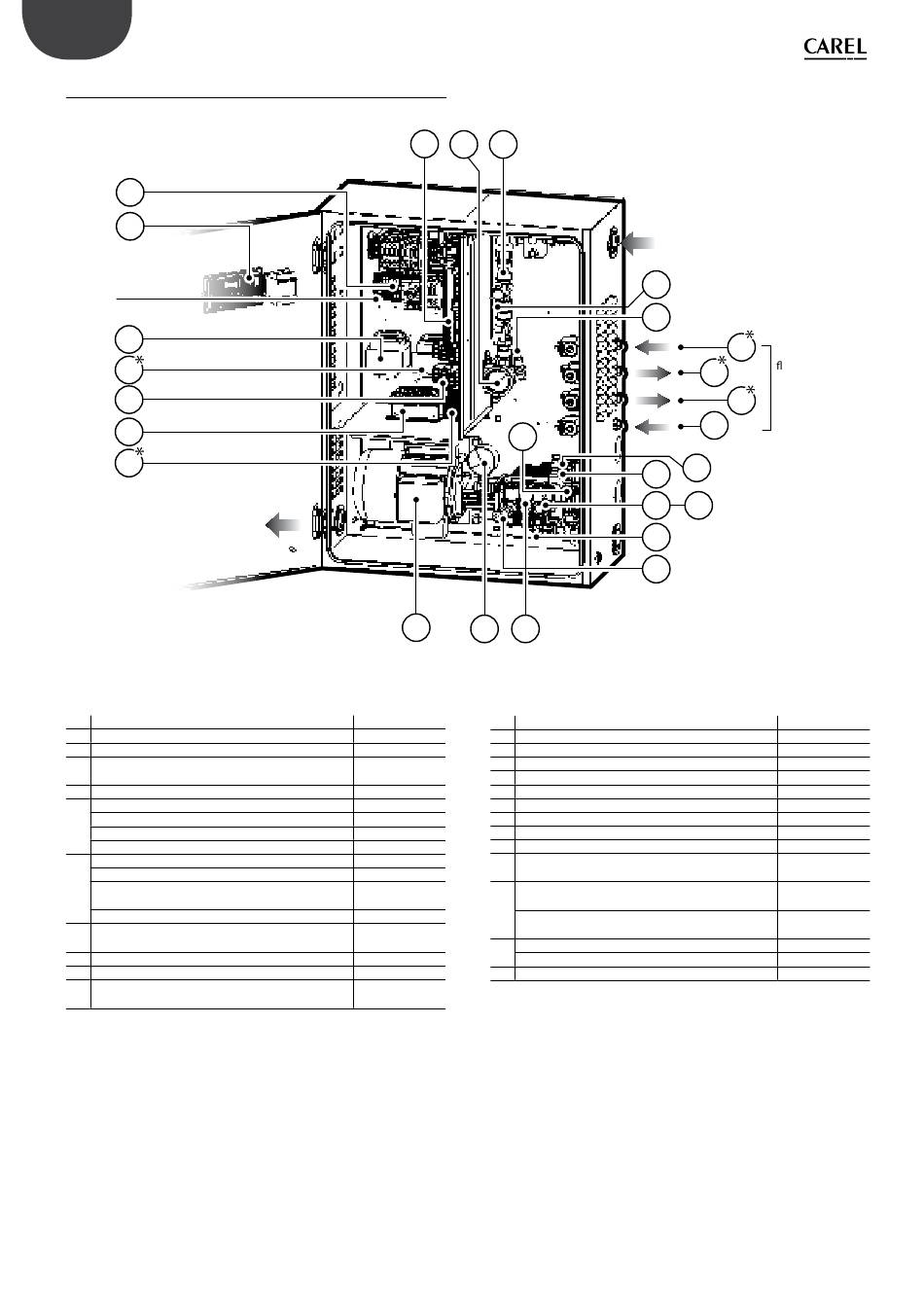

Fig. 11.c
Code No. Description
UAKRID0010
11 NTC probe for measuring bypass water temperature
ECKFSV0000
12 Mechanical overflow valve, brass
MCKMA12000
13 Pump drain solenoid valve, 1/8" GAS fitting
14 Bypass solenoid valve
15 N.C. fill solenoid valve
SPKT0011C3
16 N.O. return solenoid valve
UAKM018F51
17 Fuse kit (see paragraph 2.3.1)
UAKM037F51
18 pGDx display
UAKM018F52
UAKM037F52 19 c.pHC programmed for humiFog Direct
UAKP040M00 20 c.pCOe for humiFog Direct (two-zone cabinet
UAKP080M00
only, plug & play)
UAKVGO1501 21 Transformer for CE cabinet (1 for single zone,
2 for two-zone)
5024646AXX Transformer for UL cabinet (1 for single zone,
UAKMWHP001
2 for two-zone)
22 SSR relay, Vdc (1 for single zone, 4 for two-zone)
UAKPSHP000
SSR relay, Vac (one for all models)
1309549AXX 23 Pump motor cooling fan
UAKSPHPA00
40
water inlet
3/4" GAS F
2
4
16
2
ow
15
and return
M16x1.5
15
male
1
16
14
10
12 13
9
6
Code
NTC030WH01
Contact CAREL
UAKDRC00003
UAKFL00000
UAKFL00000
UAKDR00000
UAKFUSEDR0
HCTXDAR000
UAKCPHCD00
P+E0000000000
URKTR20000
Contact CAREL
UAKRES2411
UAKRES2401
1312545AXX
Tab. 11.c
