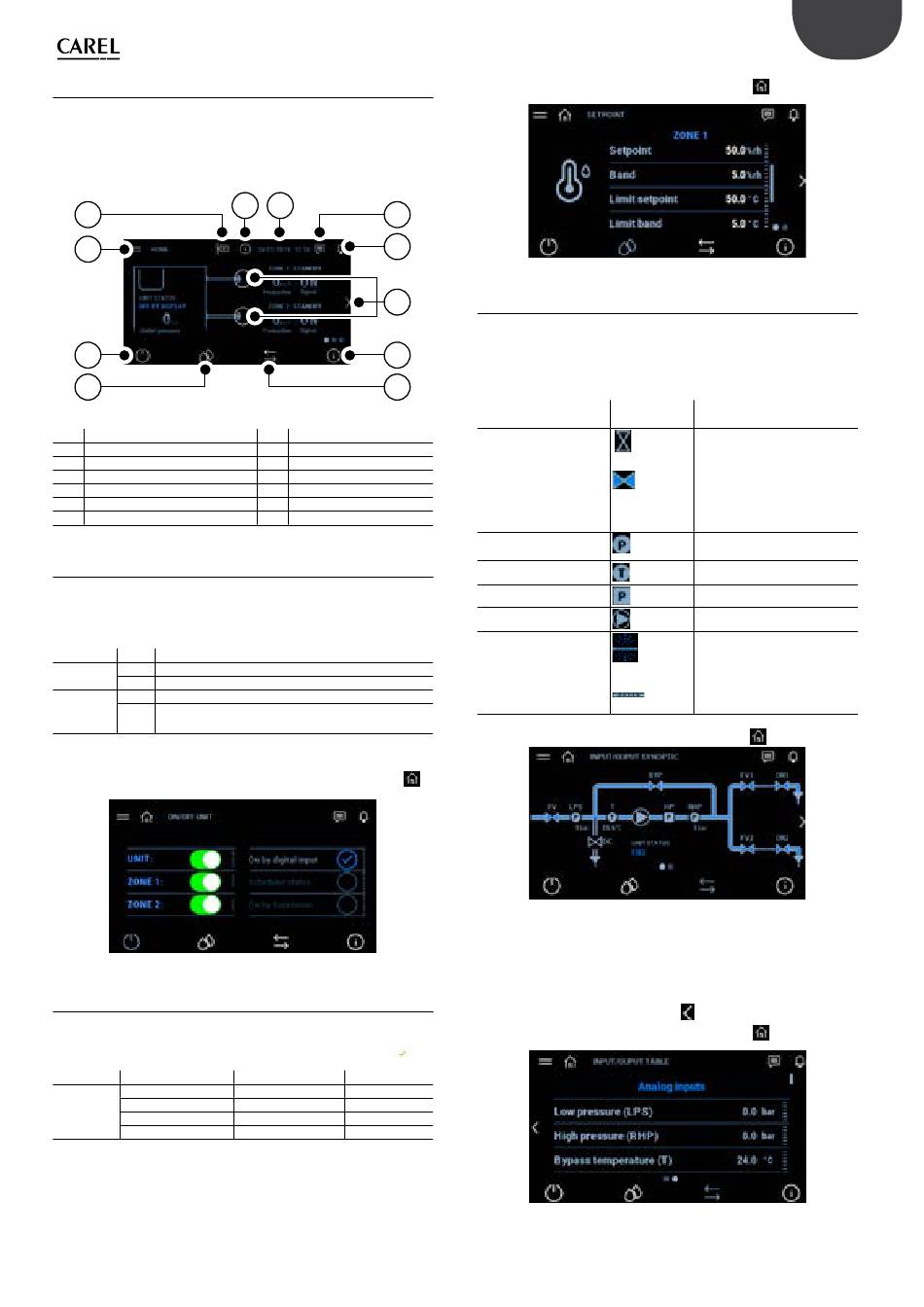

5.3 Touch display

HOME menu
The "HOME" menu includes information about the pumping station and
the zones, including current production, information on the probes and
unit status.
10
11
1
2
Fig. 5.d
Pos. Function
1
ON/OFF quick menu
2
Set point quick menu
3
Input/output quick menu
4
System information quick menu
5
Descriptive icon of zone status
6
Alarm list
5.3.1
ON/OFF quick menu
Pressing the ON/OFF quick menu icon accesses the screen for switching
the entire system or individual zones on and off. To switch on or off the
unit or zones (ON when the indicator is positioned to the right, OFF when
positioned to the left), press the button.
Message
Values Meaning
Unit
ON
Enables the pump to operate according to zone request
OFF
Switches the pumping unit OFF
Zone 1/2
START Enables atomisation in zone 1/2 according to the request
PAUSE Temporarily stop atomisation in zone 1/2
(visible only
if unit ON)
The menu also contains information on the type of system start-up
control signal. To return to the home menu, press the "HOME" icon
5.3.2
Set point quick menu
Press the icon to access the menu. The menu is used to modify the set
point and proportional control band. Press the white number to change
the value. Enter the desired value and press the confirm button (
Title
Message
Zone 1 set
Main probe set point
Main probe band
(Zone 2 set)
Limit probe set point
Limit probe band
To move from one area to another, or from one page to another, press
the right and left arrows on the display and repeat the same operations
to change the values.
8
9
7
6
5
4
3
Pos. Function
7
Notification centre
8
System date & time
9
Scheduler status
10
Master/Slave Network
11
Main menu
Tab. 5.b
Tab. 5.a
Fig. 5.e
Values
Default
0-100% rH 0-40 °C
50% rH 25 °C
0-10% rH
0-10 °C
5% rH
2 °C
0-100% rH 0-40 °C
80% rH 15 °C
0-10% rH 0-10 °C
5% rH
2 °C
Tab. 5.c
To return to the home menu, press the "HOME" icon
5.3.3
INPUT/OUTPUT quick menu
Press the icon to access the menu.
The input/output dashboard offers an intuitive and real-time view of the
system operating status, the values read by the humiFog direct cabinet
probes, the status of the mechanical components in the water circuit and
the water flow path.
Mechanical component I/O dashboard
Solenoid valve
Pressure sensor
Temperature sensor
Pressure switch
Pump
Nozzles
To return to the home menu, press the "HOME" icon
To switch to display the input/output values in table form, press the right
arrow.
If using wireless probes, to display the input/output values, press the
right arrow again.
Use the slider to scroll through the table.
To return to the previous display, press
To return to the home menu, press the "HOME" icon
).
19
Fig. 5.f
System components
symbol
FV: cabinet fill valve
BYP: bypass valve
(Valve closed)
DC: cabinet drain valve
FV1: zone 1 fill valve
DR1: zone 1 drain valve
(Valve open)
FV2: zone 2 fill valve
DR2: zone 2 drain valve
LPS: low pressure sensor
RHP: high pressure sensor
T: water temperature sensor
HP: high pressure switch
Cabinet pump
Zone nozzles
(Atomise ON
(Atomise OFF)
Fig. 5.g
Fig. 5.h
"humiFog direct" +0300073EN rel. 1.2 - 02.05.2019
ENG
Tab. 5.d
