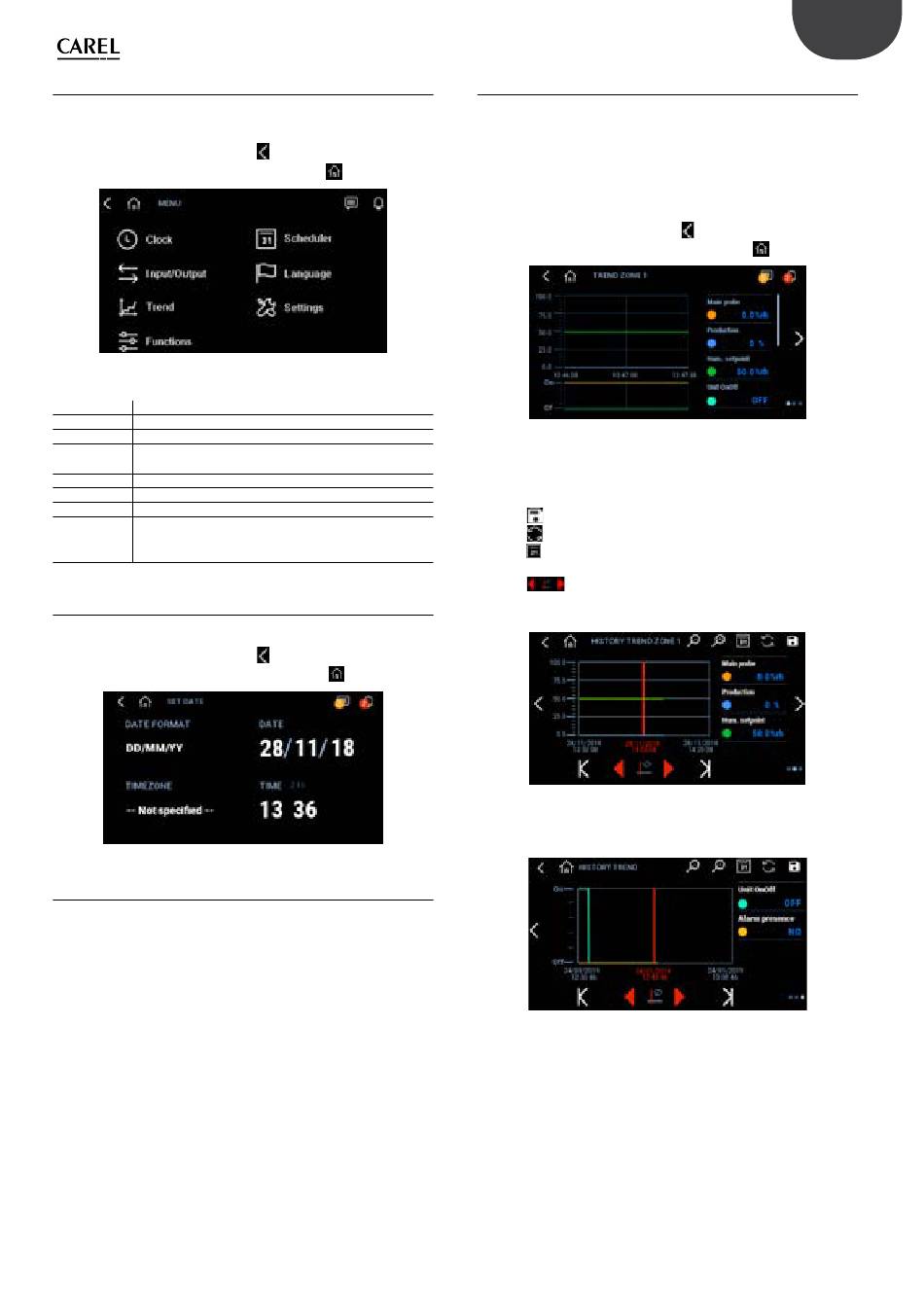

5.3.11 Main menu
Press the icon to access the main menu.
The menu provides access to the system items that are available without
entering a password.
To return to the previous display, press
To return to the home menu, press the "HOME" icon
Fig. 5.p
Description of the menus:
Menu Description
Clock Date and time setting
Input/Output Display the analogue and digital inputs/outputs
Graphs Display historical and real-time operation of the
humidifier
Functions Special and manual functions
Scheduler Manage scheduling of working time bands
Language Set the menu language
Settings Access advanced humidifier configuration (Installer
password 77). Menu: E. Settings. Change unit of measure
(Imperial/International)
5.3.12 Clock
Press the icon to access the function.
Press the text to change the desired parameters.
To return to the previous display, press
To return to the home menu, press the "HOME" icon
Fig. 5.q
5.3.13 Input/Output
Press the icon to access the function.
The same screen is displayed, which is also accessible from the input/
output quick menu.
5.3.14 Graphs
Press the icon to access the function.
The graphs function is used to view the values of some system analogue
and digital variables over a certain time frame.
Press the zone to be viewed.
On the first screen displayed, the real-time value of the analogue and
digital variables relating to the zone is plotted. The value of each variable
is shown numerically in the table to the right of the graphs.
To scroll through the displayed information, press the slider.
To return to the previous display, press
To return to the home menu, press the "HOME" icon
To move from one page to another, press the arrows on the right and left
of the display.
Moving to the right, the second screen displays the history of analogue
variables for the zone.
Press the icon to save the graph displayed to external memory.
Press the icon to restore the initial view.
Press the icon to select the length of the period to be viewed.
Press the arrows under the graph to change the period displayed.
Tab. 5.e
Press the
the red cursor. The value of the variables corresponding to the red cursor
is shown in the table on the right.
Moving to the right again, the history of the system's digital variables is
displayed on the third screen.
21
Fig. 5.r
icon to hide the variables, magnify the graph and move
Fig. 5.s
Fig. 5.t
