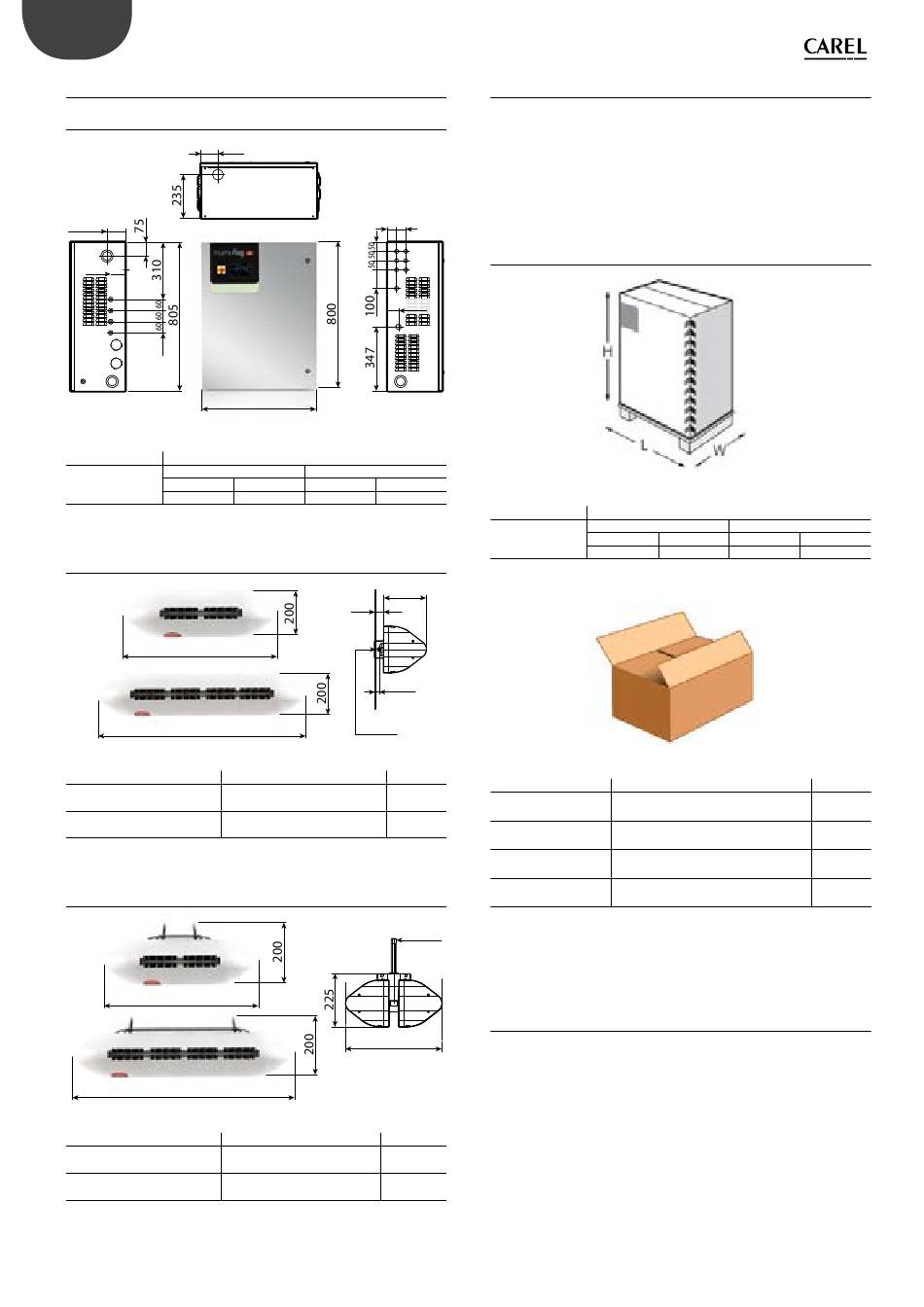

1.7 Dimensions and weights

1.7.1 Dimensions and weights of the cabinet
98,5
3/4"G f
80
M16x1.5M
M16x1.5M
M16x1.5M
M16x1.5M
Dimensions
UA040-UA050
630x300x800 mm
single zone
(24.8"x11.8"x31.5")
60 kg (132 lb) 64 kg (141 lb) 64 kg (141 lb) 68 kg (149 lb)
1.7.2 Dimensions and weights of the single blowers
640
940
P/N
DLA02xFx00
Single blower, 2 modules
DLA04xFx00
Single blower, 4 modules
1.7.3 Dimensions and weights of the double blowers
640
940
P/N
DLA04xBx00
Double blower, 2 modules
DLA08xBx00
Double blower, 4 modules
"humiFog direct" +0300073EN rel. 1.2 - 02.05.2019
93
3/4"G f
50 50
630
Fig. 1.f
Weight
UA080-UA090
two zones single zone two zones
180
19
17,5
IN/OUT
M16X1,5
Fig. 1.g
Dimensions [a x b x c] Weight
640 x 200 x 180 mm 4.5 kg
(25 x 8 x 7 inches) (9 lb)
940 x 200 x 180 mm 5.6 kg
(37 x 8 x 7 inches) (12 lb)
400
Fig. 1.h
Dimensions [a x b x c] Weight
640 x 200 x 400 mm 9.2 kg
(25 x 8 x 16 inches) (20 lb)
940 x 200 x 400 mm 15.5 kg
(37 x 8 x 16 inches) (34 lb)

1.8 Packaging and shipment

The cabinet is packaged and delivered on a wooden pallet with a
cardboard cover. The user is responsible for moving the cabinet near the
point of operation, removing the packaging and placing it in a position
ready for the water and electrical connections.
The blowers are delivered already assembled in cardboard boxes. The user
is responsible for removing the blower from the packaging, removing the
side plastic covers so as to make the water and electrical connections,
and then replacing the plastic covers before starting the system.
1.8.1 Dimensions and weights of the packages
60,5
Tab. 1.e
Dimensions
720x460x1020 mm
(28.5"x18"x40")
P/N
DLA02xFx00
front blower 2 mod
DLA04xFx00
front blower 4 mod
Tab. 1.f
DLA04xBx00
double blower 2 mod
DLA08xBx00
double blower 4 mod
Delivery and storage temperature must be between -10°C - 50°C and
IN/OUT humidity between 0% - 90% non-condensing.
M16X1,5

1.9 IP rating and standards

The IP rating of the cabinet is IP20.
The IP rating of the blowers is IP20.
The IP rating of the blowers is not a problem for installation, as all the
components inside have a higher IP rating.
The blowers can in fact be installed in rooms with very high humidity (up
to 95% non-condensing).
The unit is compliant with the Machinery Directive.
The unit is CE marked in the 230 Vac 50 Hz version in accordance with IEC
60335-1, IEC 60335-2, EN 60335, EN 61000-6-2 (2006) and EN 61000-6-4
(2007).
The unit is UL marked in the 120 Vac 60 Hz version in accordance with
Tab. 1.g
directive UL998.
10
Fig. 1.i
Weight
UA040-UA050
single zone two zones single zone
64 kg (141 lb) 68 kg (149 lb) 68 kg (149 lb) 72 kg (158 lb)
Fig. 1.j
Dimensions [L x W x H]
755 x 235 x 295 mm
(30 x 9 x 12 inches)
1050 x 235 x 295 mm
(41 x 9 x 12 inches)
755 x 470 x 295 mm
(30 x 18 x 12 inches)
1050 x 470 x 295 mm
(41 x 18 x 12 inches)
UA080-UA090
two zones
Tab. 1.h
Weight
5.7 kg
(12 lb)
7.4 kg
(16 lb)
11.4 kg
(25 lb)
18 kg
(39 lb)
