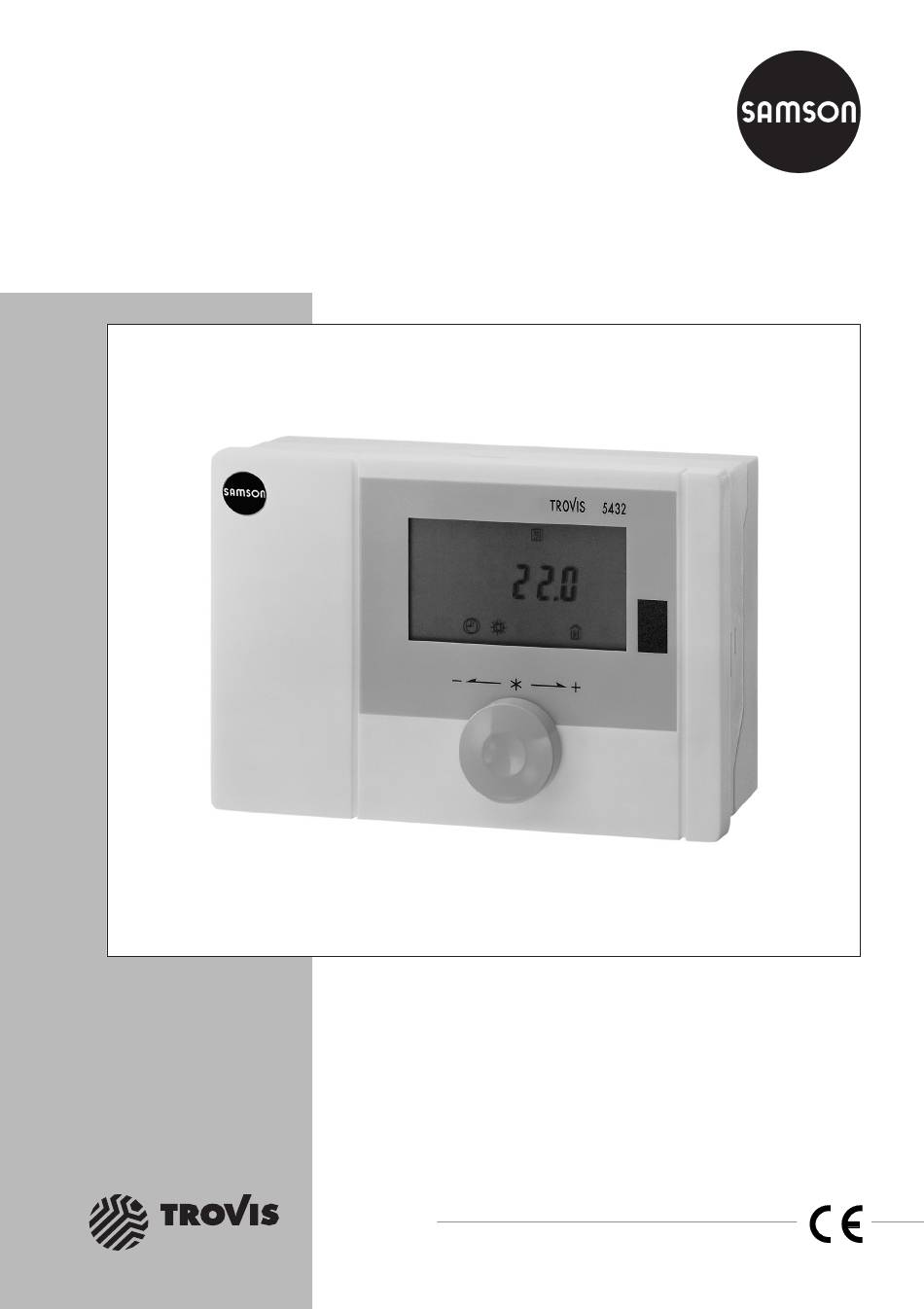

Automation System 5400
Heating and District Heating Controller
TROVIS 5432
®
Electronics from SAMSON
Mounting and
Operating Instructions
EB 5432 EN
Firmware version 2.1x
Edition July 2004
