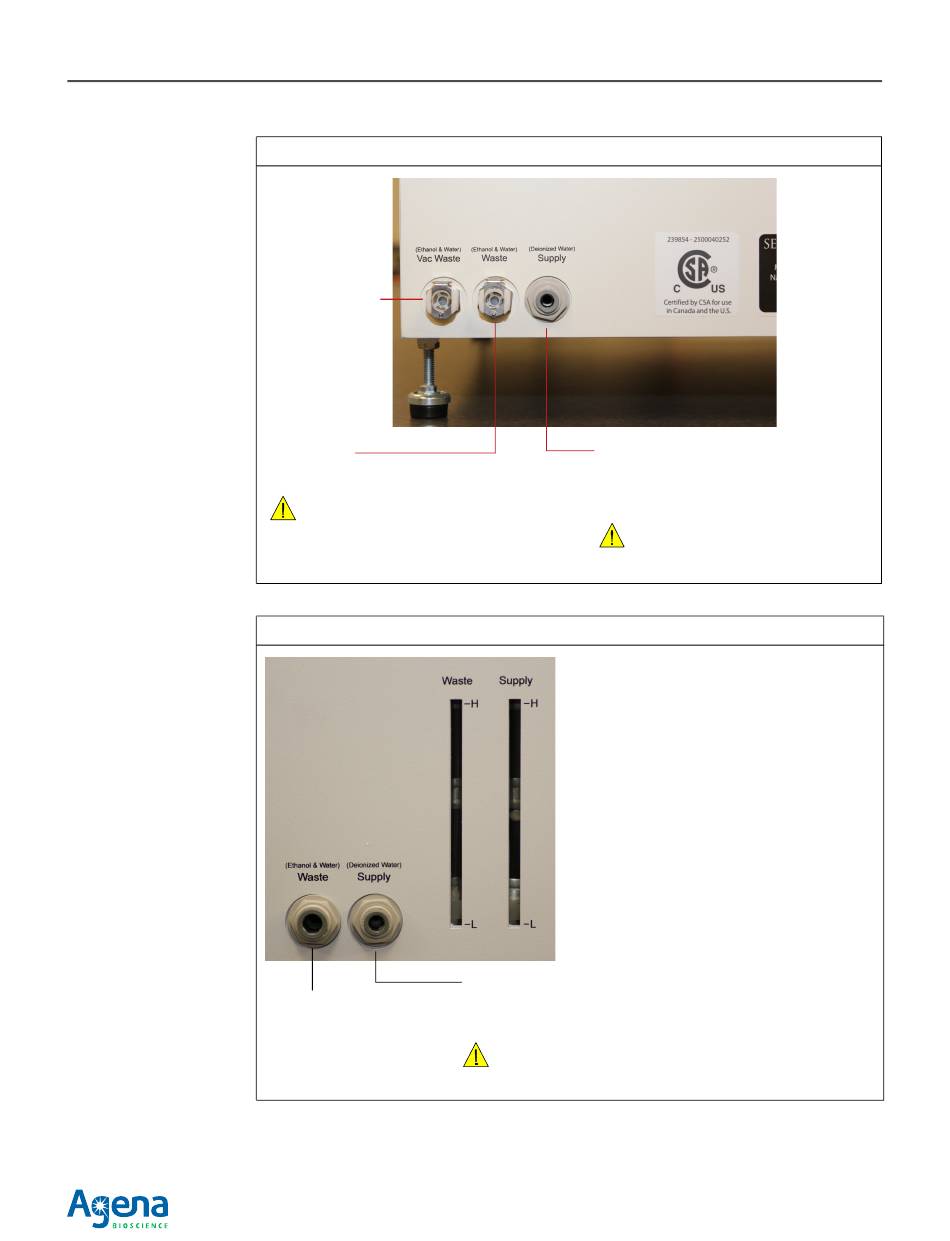

Figure 1.4 Instrument Left Side With 3 Ports
Vac Waste Port
Vacuum tank
drains through
this port.
Waste Port
Waste tank drains
through this port.
Warning: The water from the waste
ports may contain ethanol and
residual DNA sample. It must be
disposed of properly according to
local regulations.
Figure 1.5 Instrument Left Side With 2 Ports
Vac Waste Port
Vacuum tank drains
through this port.
MassARRAY® Nanodispenser RS1000 v2.1 User Guide
For Research Use Only. Not for use in diagnostic procedures.
Supply Port
Supply tank is filled through this port;
can also be used to connect external
supply tank.
Caution: Connect the supply port
to a Type 1, >18.2 MΩ water source
only.
Supply Port
Supply tank is filled through this port; can also
be used to connect external supply tank.
Caution: Connect the supply port to
a Type 1, >18.2 MΩ water source
only.
