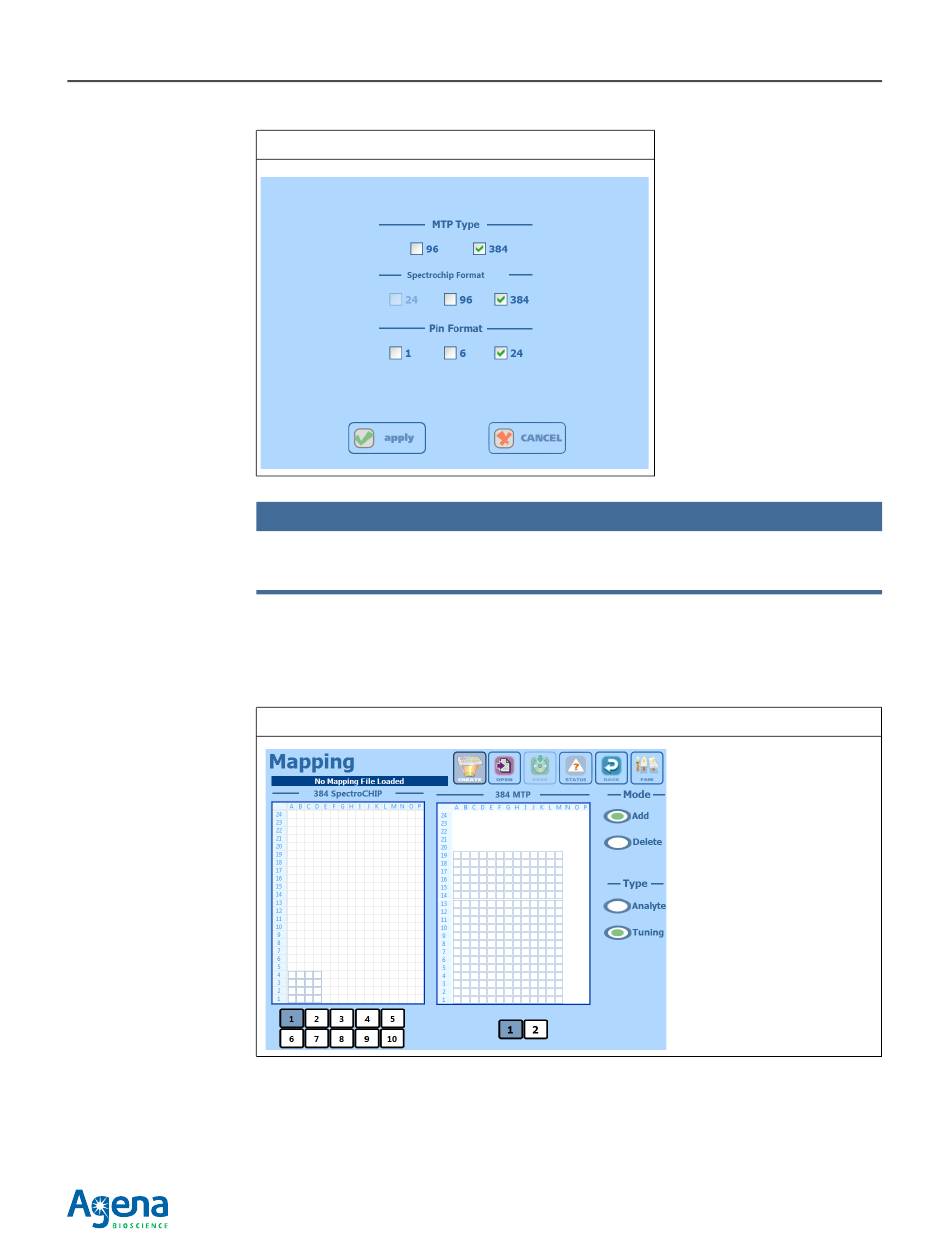

Figure 3.23 Creating a Method
NOTE
Select only "96 MTP" for a 6-pin instrument.The 96 MTP format may be used only on a 24-pin
instrument if the instrument has been adapted to 6-pin format. An adapter kit is required to adapt
a 24-pin instrument to the 1-pin or 6-pin format. For more information see
2. Tap apply.
The Mapping screen shows microtiter plate and SpectroCHIP Array diagrams that are
used to define how plate wells are mapped to SpectroCHIP Array pads
Figure 3.24 Screen for Mapping Microtiter Plate Wells to SpectroCHIP Arrays (24-pin Array)
MassARRAY® Nanodispenser RS1000 v2.1 User Guide
For Research Use Only. Not for use in diagnostic procedures.
Chapter 3 Methods and Mappings
Appendix A, page
(Figure
USG-CUS-059 Rev05
75
117.
3.24).
