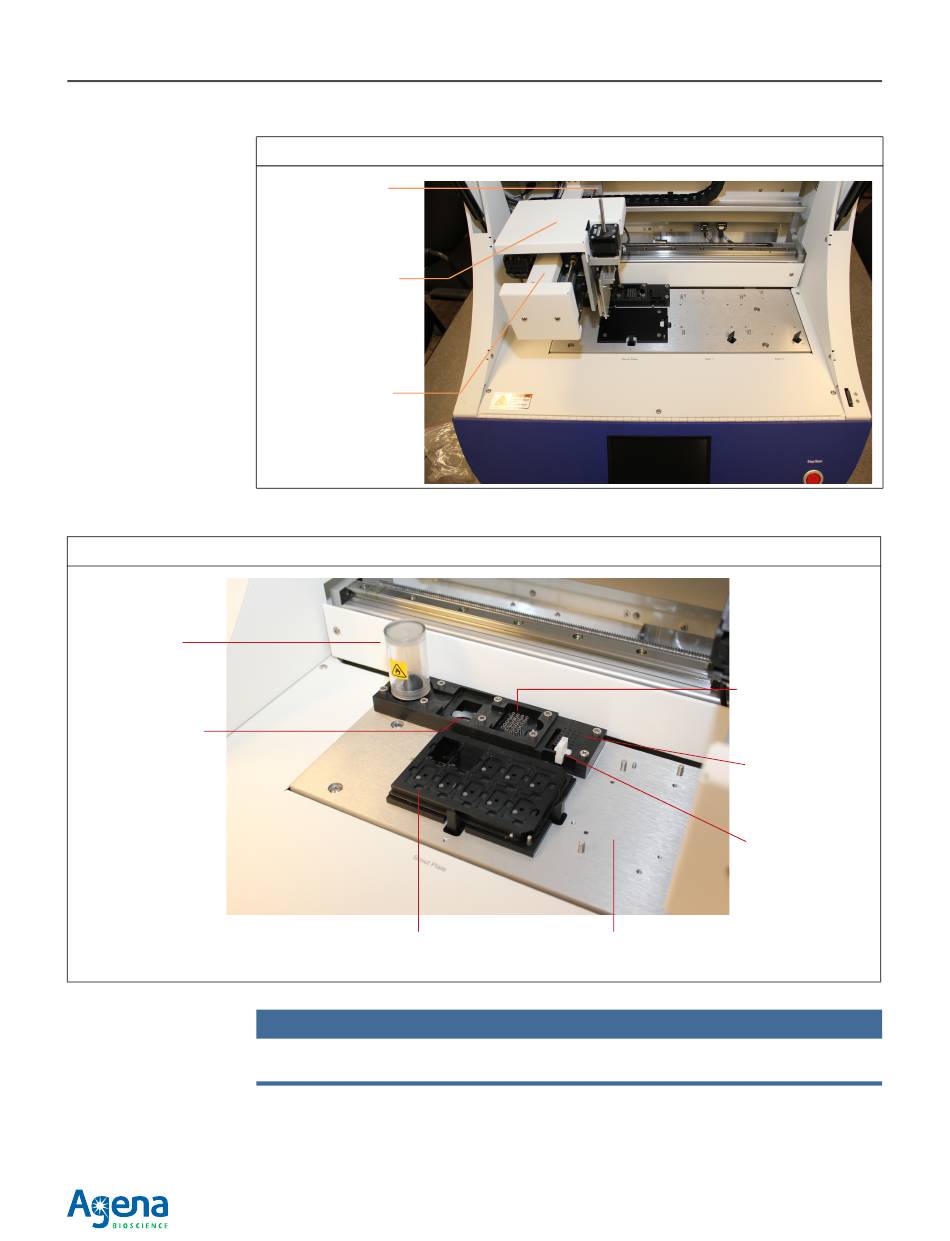

Figure 1.7 Overhead View of Instrument Deck
Ultrasonic Wash
Supply Bottle
Supplies solution to
the ultrasonic wash.
Ultrasonic Wash
Cleans pin array
using ultrasound
through fluid.
Figure 1.6 Overhead View of instrument
X-Axis Transport
Allows side-to-side
movement of pin array
assembly.
Pin Array Assembly
Contains the pin array
used to load and
dispense liquid; allows
up-and-down
movement.
Y-Axis Transport
Allows front to back
movement of pin array
assembly.
SCOUT Plate
Holds the SpectroCHIP Arrays
NOTE
On a 6-pin instrument, a 6-pin vacuum cover is installed on the dry station. Do not remove the
vacuum cover. See Figure A.4, page 119
MassARRAY® Nanodispenser RS1000 v2.1 User Guide
For Research Use Only. Not for use in diagnostic procedures.
Microtiter Plate Holders
for an illustration of the vacuum cover.
Rinse Station:
Flushes pin array
with Type 1, >18.2
MΩ water
Dry Station
Dries the pin array
using vacuum.
Calibrant
Reservoir
Holds calibrant
USG-CUS-059 Rev05
