b. Plunge the pins by pushing down on the plunge handle until the pin array body
contacts the risers on the pin protection block

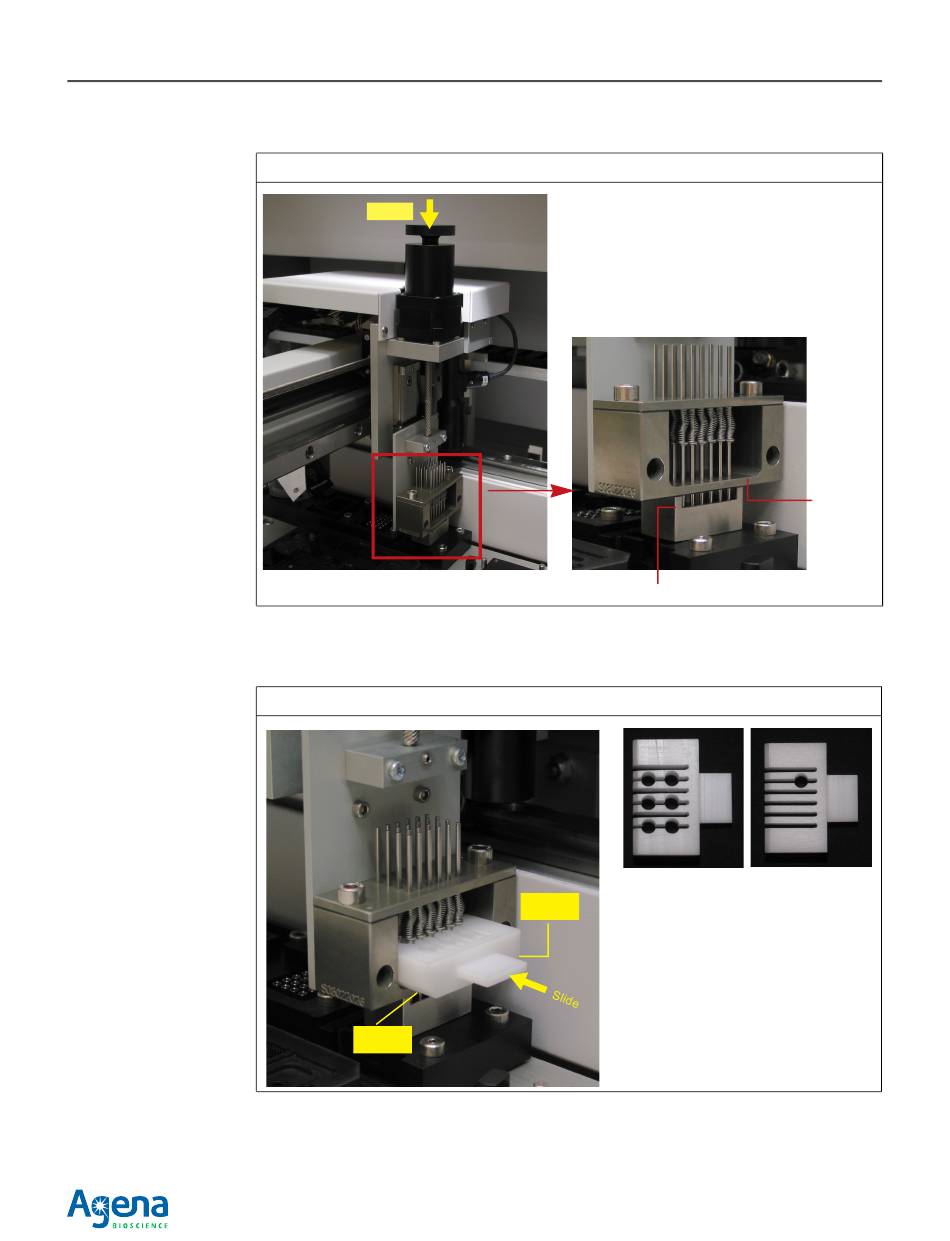

Figure A.10 Plunge the Pin Array
Push
c. Keep the pin array body pressed down against the pin protection block risers
while you slide the pin insert (6-pin or 1-pin) into the pin array until it stops
A.11 and Figure A.12).
Figure A.11 Slide the Pin Insert into the Pin Array
Chamfer
MassARRAY® Nanodispenser RS1000 v2.1 User Guide
For Research Use Only. Not for use in diagnostic procedures.
Appendix A Changing the Pin Format
(Figure A.10).
Riser
6-pin insert
(6 holes)
Chamfer
The pin inserts have chamfered
(beveled) corners on one side.
This side should be on the
bottom. This is the only way an
insert will fit into the pin array.
123
Pin array
body
(Figure
1-pin insert (1
hole)
