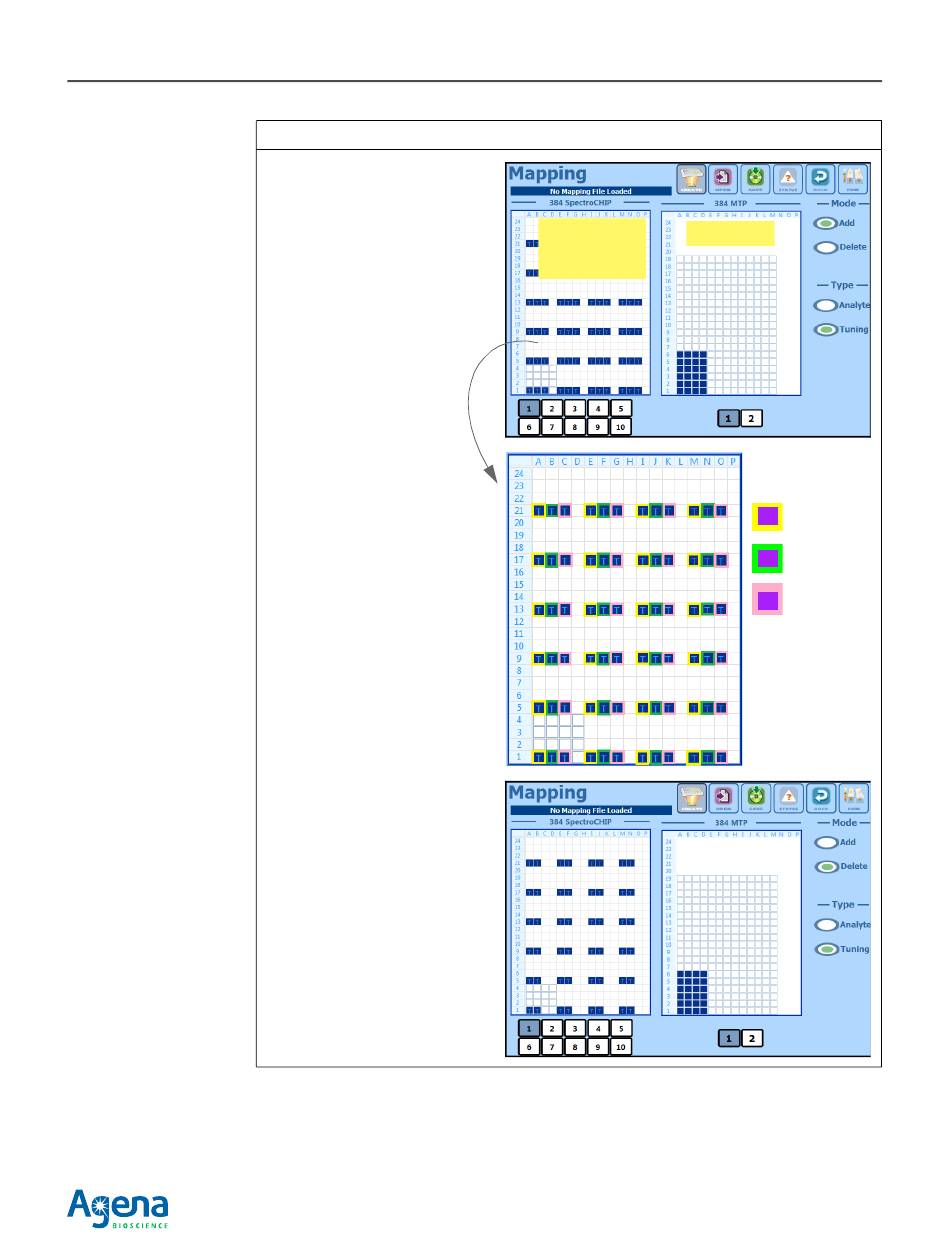

Figure 3.31 One Group of Plate Wells Mapped to Multiple Groups of SpectroCHIP Array Pads
In this example, one group of plate
wells (6 x 4 grid) is mapped to three
groups of SpectroCHIP Array pads.
For illustrative purposes, the
three SpectroCHIP Array groups
are distinguished here using
colored borders.
If the mapping to the first group of
SpectroCHIP Array pads is
removed, the other two groups
are still mapped to the plate
wells.
MassARRAY® Nanodispenser RS1000 v2.1 User Guide
For Research Use Only. Not for use in diagnostic procedures.
Chapter 3 Methods and Mappings
Plate wells
SpectroCHIP
Array pads
81
Group 1
Group 2
Group 3
