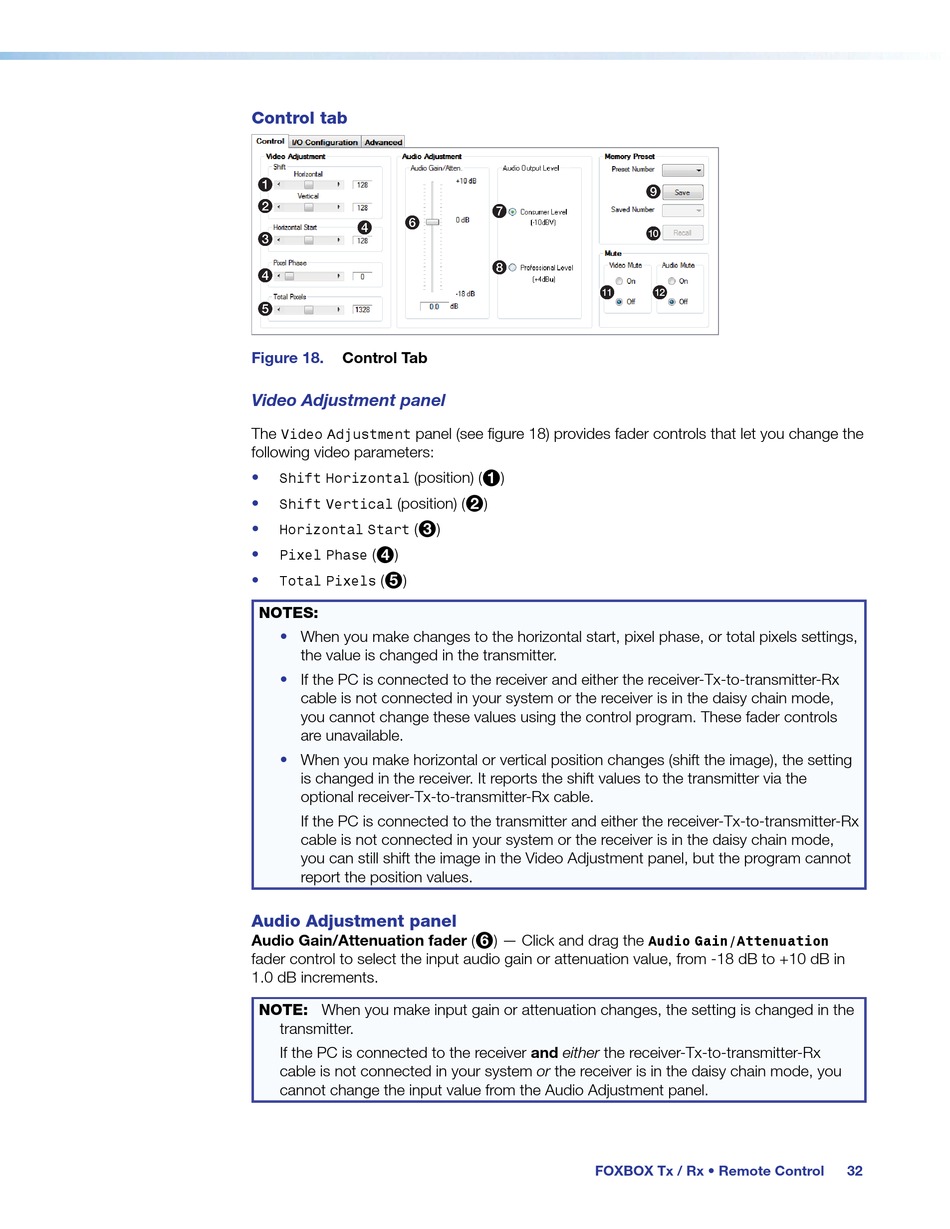

Extron electronics FOXBOX Tx VGA MM User Manual page 40

Control tab
1 1 1 1 1 1 1 1 1 1
2 2 2 2 2 2 2 2 2 2
6 6 6 6 6 6 6 6 6 6
4 4 4 4 4 4 4 4 4 4
3 3 3 3 3 3 3 3 3 3
4 4 4 4 4 4 4 4 4 4
5 5 5 5 5 5 5 5 5 5
Figure 18. Control Tab
Video Adjustment panel
The panel (see figure 18) provides fader controls that let you change the
Video Adjustment
following video parameters:
• (position) (
Shift Horizontal
(position) (
•
Shift Vertical
• (
3
Horizontal Start
• ( )
Pixel Phase 4
( )
•
Total Pixels 5
NOTES:
• When you make changes to the horizontal start, pixel phase, or total pixels settings,
the value is changed in the transmitter.
• If the PC is connected to the receiver and either the receiver-Tx-to-transmitter-Rx
cable is not connected in your system or the receiver is in the daisy chain mode,
you cannot change these values using the control program. These fader controls
are unavailable.
• When you make horizontal or vertical position changes (shift the image), the setting
is changed in the receiver. It reports the shift values to the transmitter via the
optional receiver-Tx-to-transmitter-Rx cable.
If the PC is connected to the transmitter and either the receiver-Tx-to-transmitter-Rx
cable is not connected in your system or the receiver is in the daisy chain mode,
you can still shift the image in the Video Adjustment panel, but the program cannot
report the position values.
Audio Adjustment panel
Audio Gain/Attenuation fader (
fader control to select the input audio gain or attenuation value, from -18 dB to +10 dB in
1.0 dB increments.
NOTE: When you make input gain or attenuation changes, the setting is changed in the
transmitter.
If the PC is connected to the receiver and either the receiver-Tx-to-transmitter-Rx
cable is not connected in your system or the receiver is in the daisy chain mode, you
cannot change the input value from the Audio Adjustment panel.
7 7 7 7 7 7 7 7 7 7
8 8 8 8 8 8 8 8 8 8
£ £ £ £ £ £ £ £ £ £
)
1
)
2
)
) — Click and drag the
6
FOXBOX Tx / Rx • Remote Control
9 9 9 9 9 9 9 9 9 9
¢ ¢ ¢ ¢ ¢ ¢ ¢ ¢ ¢ ¢
¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤ ¤
Audio Gain/Attenuation
32
