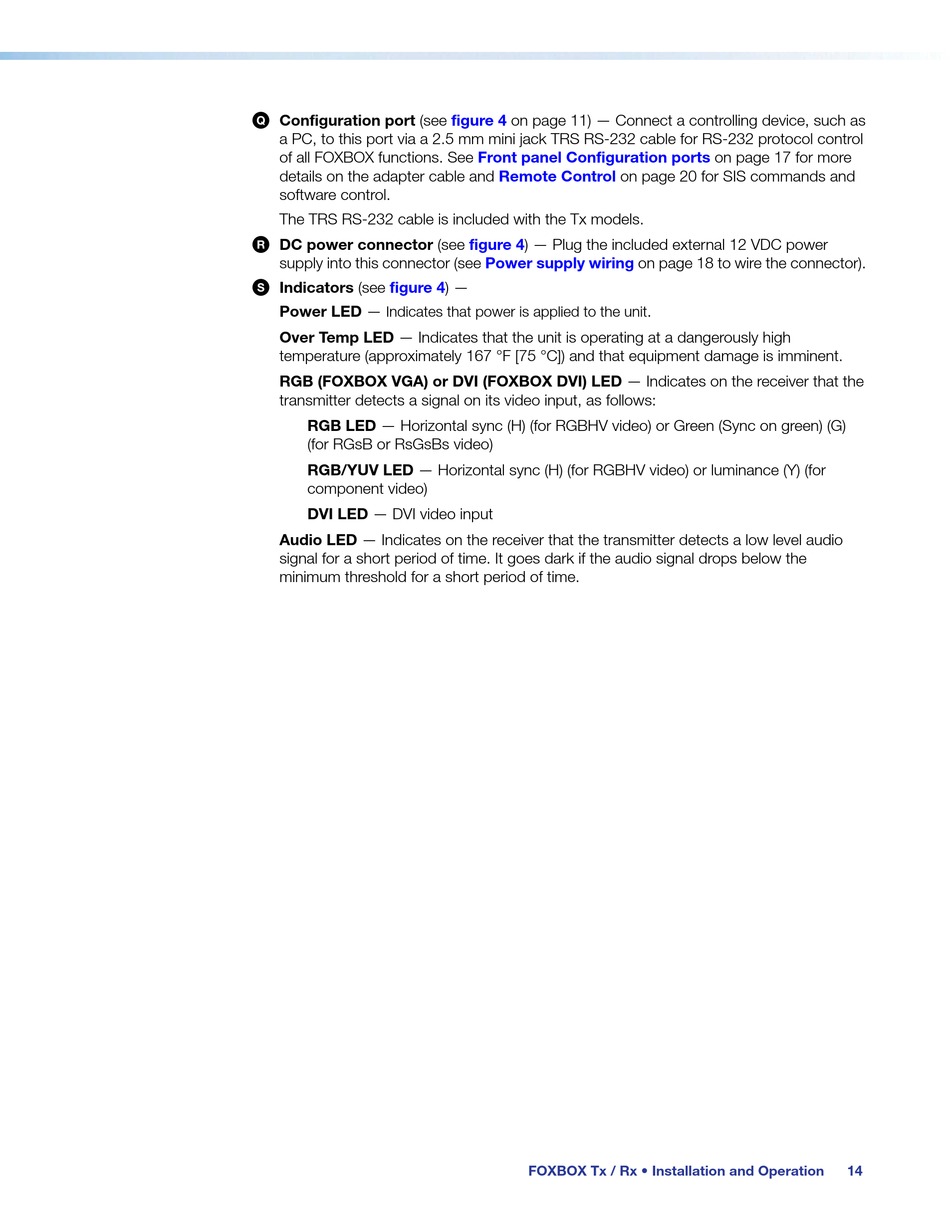

Extron electronics FOXBOX Tx VGA MM User Manual page 22

Configuration port (see
Q
a PC, to this port via a 2.5 mm mini jack TRS RS-232 cable for RS-232 protocol control
of all FOXBOX functions. See
details on the adapter cable and
software control.
The TRS RS-232 cable is included with the Tx models.
DC power connector (see
R
supply into this connector (see
Indicators (see figure
S
Power LED — Indicates that power is applied to the unit .
Over Temp LED — Indicates that the unit is operating at a dangerously high
temperature (approximately 167 °F [75 °C]) and that equipment damage is imminent.
RGB (FOXBOX VGA) or DVI (FOXBOX DVI) LED — Indicates on the receiver that the
transmitter detects a signal on its video input, as follows:
RGB LED — Horizontal sync (H) (for RGBHV video) or Green (Sync on green) (G)
(for RGsB or RsGsBs video)
RGB/YUV LED — Horizontal sync (H) (for RGBHV video) or luminance (Y) (for
component video)
DVI LED — DVI video input
Audio LED — Indicates on the receiver that the transmitter detects a low level audio
signal for a short period of time. It goes dark if the audio signal drops below the
minimum threshold for a short period of time.
figure 4 on page 11) — Connect a controlling device, such as
Front panel Configuration ports
Remote Control
figure 4) — Plug the included external 12 VDC power
Power supply wiring
4) —
FOXBOX Tx / Rx • Installation and Operation
on page 17 for more
on page 20 for SIS commands and
on page 18 to wire the connector).
14
