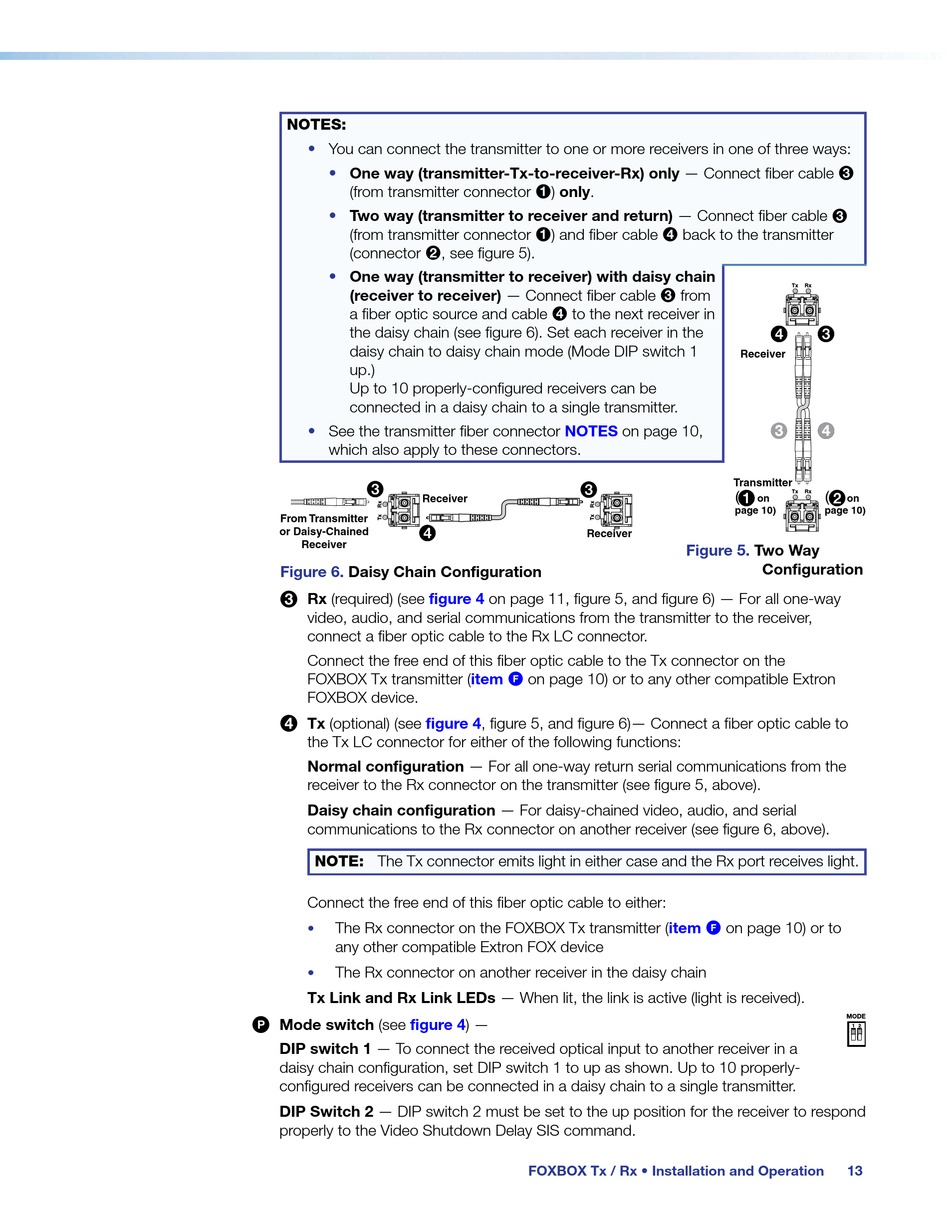

NOTES:
You can connect the transmitter to one or more receivers in one of three ways:
One way (transmitter-Tx-to-receiver-Rx) only — Connect fiber cable
(from transmitter connector
Two way (transmitter to receiver and return) — Connect fiber cable
(from transmitter connector
(connector
2
One way (transmitter to receiver) with daisy chain
(receiver to receiver) — Connect fiber cable
a fiber optic source and cable
the daisy chain (see figure 6). Set each receiver in the
daisy chain to daisy chain mode (Mode DIP switch 1
up.)
Up to 10 properly-configured receivers can be
connected in a daisy chain to a single transmitter.
See the transmitter fiber connector
which also apply to these connectors.
3 3
Receiver
From Transmitter
or Daisy-Chained
4 4
Receiver
Figure 6.
Daisy Chain Configuration
Rx (required) (see
figure 4
3
video, audio, and serial communications from the transmitter to the receiver,
connect a fiber optic cable to the Rx LC connector.
Connect the free end of this fiber optic cable to the Tx connector on the
FOXBOX Tx transmitter
FOXBOX device.
Tx (optional) (see
figure
4
the Tx LC connector for either of the following functions:
Normal configuration — For all one-way return serial communications from the
receiver to the Rx connector on the transmitter (see figure 5, above).
Daisy chain configuration — For daisy-chained video, audio, and serial
communications to the Rx connector on another receiver (see figure 6, above).
NOTE: The Tx connector emits light in either case and the Rx port receives light.
Connect the free end of this fiber optic cable to either:
The Rx connector on the FOXBOX Tx transmitter
any other compatible Extron FOX device
The Rx connector on another receiver in the daisy chain
Tx Link and Rx Link LEDs — When lit, the link is active (light is received).
Mode switch (see
figure
P
DIP switch 1 — To connect the received optical input to another receiver in a
daisy chain configuration, set DIP switch 1 to up as shown. Up to 10 properly-
configured receivers can be connected in a daisy chain to a single transmitter.
DIP Switch 2 — DIP switch 2 must be set to the up position for the receiver to respond
properly to the Video Shutdown Delay SIS command.
) only.
1
) and fiber cable
1
, see figure 5).
to the next receiver in
4
NOTES
3 3
Receiver
on page 11, figure 5, and figure 6) — For all one-way
(item
on page 10) or to any other compatible Extron
F
4, figure 5, and figure 6)— Connect a fiber optic cable to
4) —
FOXBOX Tx / Rx • Installation and Operation
back to the transmitter
4
Tx
from
3
4 4
Receiver
on page 10,
Transmitter
(
Tx
1 1
on
page 10)
Figure 5.
Two Way
Configuration
(item
on page 10) or to
F
3
3
Rx
3 3
(
Rx
2 2
on
page 10)
MODE
1 2
13
