BACnet MS/TP Communication Data Bus Fundamentals
ECLYPSE

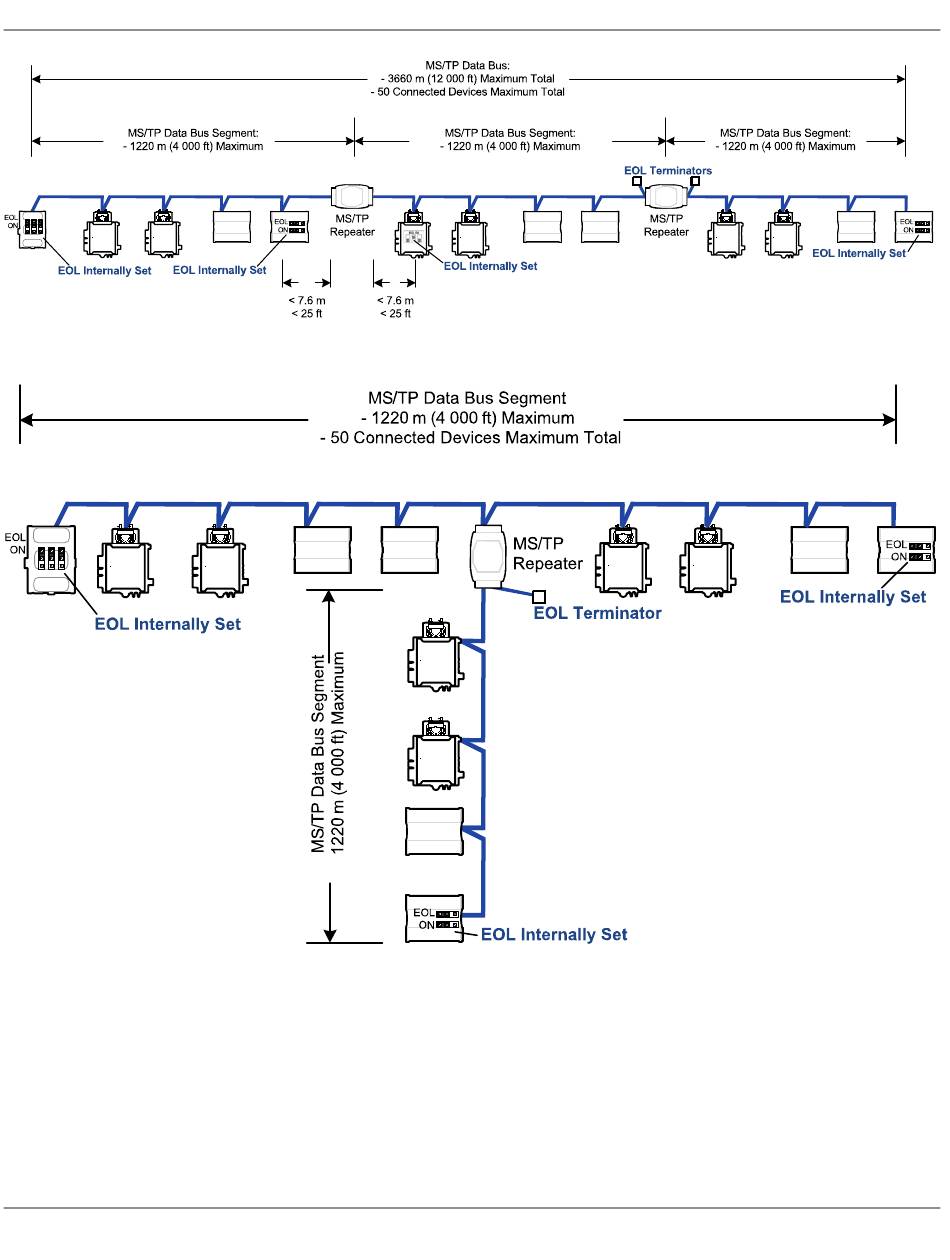

Figure 97: Using a Repeater to Extend the Range of the LAN
A repeater can be used to create a spur as shown below.
ECLYPSE
Figure 98: Adding a Spur by Using a Repeater
A repeater is counted as a device on each data bus to which it is connected.
When third party devices are connected to a data bus segment, the number of devices that can be connected to that data
bus segment may be reduced. See
Device
Loading.
nLight ECLYPSE
99
