ECLYPSE Web Interface
Diagnostics
BACnet MS/TP and Modbus RTU communications are made by connecting directly to separate RS-485 ports. On-board
RS-485 Port is the controller's onboard RS-485 port.
The following Diagnostics tab provides information on live values passing through the RS-485 ports. By default, the live
values are displayed. You can stop and restart the streaming of the live values using the Stop Live Values/Start Live Val-
ues button.

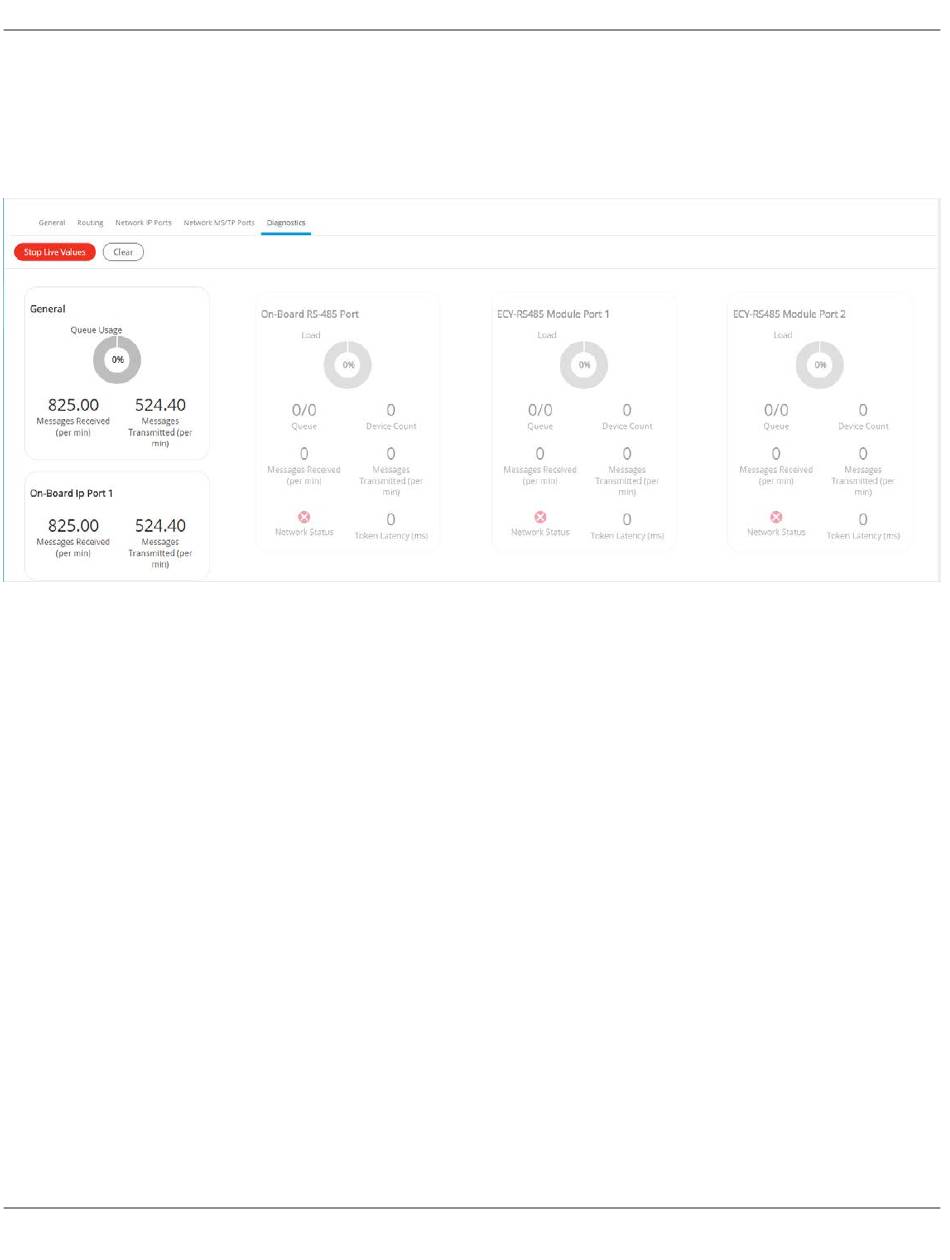

Figure 41: BACnet Diagnostics
nLight ECLYPSE
51
