ECLYPSE Web Interface
Item
Disable Throughput
Enable Throughput
Device Target
Ip Address Target
Start
Clear
Throughput (Mbps)
Signal avg (dBm)
RX rate (Mbps)

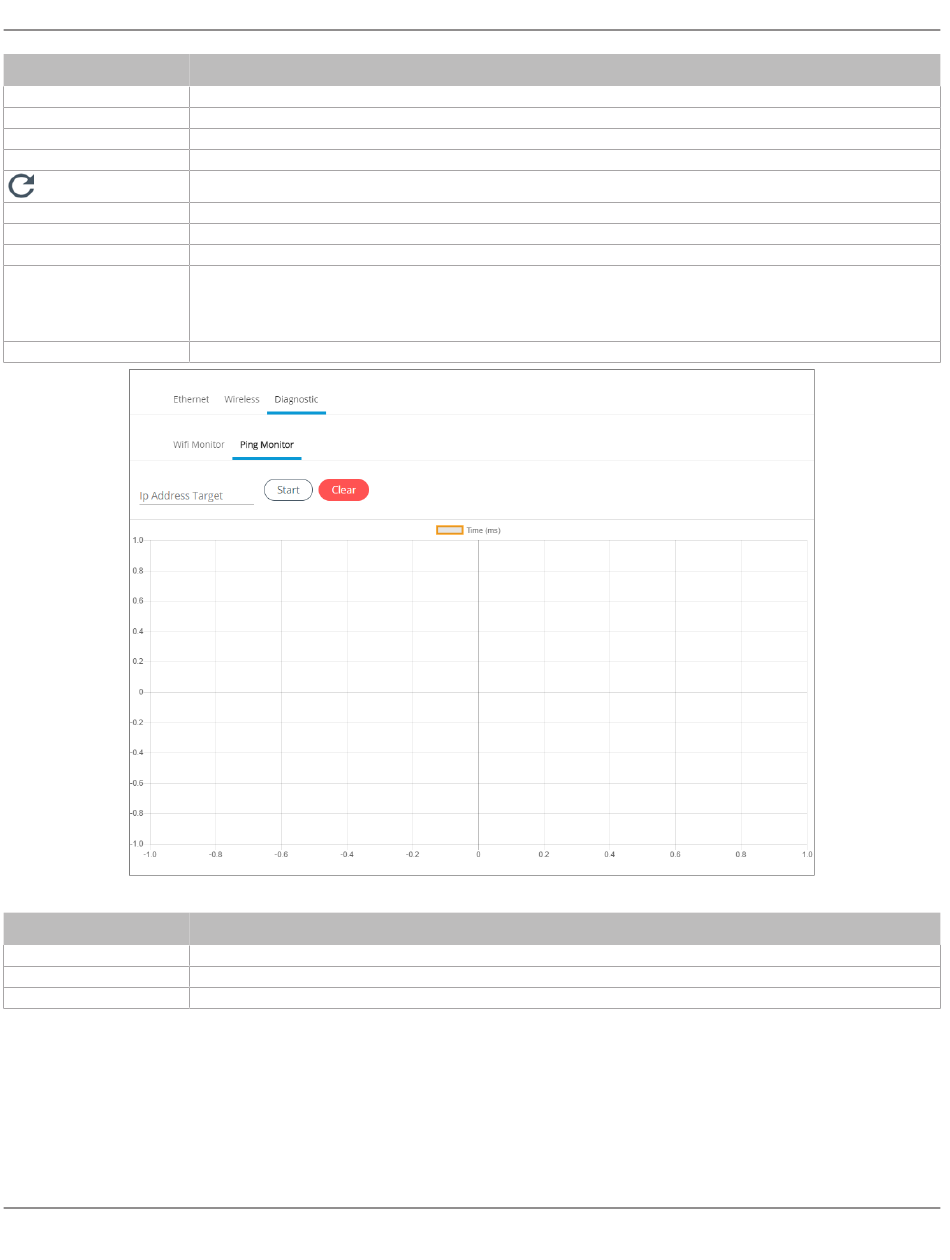

Figure 35: Network Diagnostics – Ping Monitor
Item
Ip Address Target
Start
Clear
nLight ECLYPSE
Description
Disables the Wi-Fi Monitoring throughput client service. For Wi-Fi monitor to work, this must be started.
Activates the Wi-Fi Monitoring throughput client service. For Wi-Fi monitor to work, this must be started.
Select the corresponding controller's MAC address in the Device Target list.
Enter the corresponding controller's IP address for its Wi-Fi interface in Ip Address Target.
Click to refresh the information in the Device Target list.
Starts graphing the monitored data
Clears the graph
Transmit datarate to the target
Current average received signal strength.
Note: Signal strength is measured in negative units where the stronger the signal, the closer it is to zero. A weaker signal
strength will have a more negative number. For example, a receive signal strength of -35 dBm is much stronger than a
receive signal strength of -70 dBm.
Receiving data rate from the target
Description
Enter the corresponding controller's IP address for its Wi-Fi interface in Ip Address Target.
Starts graphing the monitored data
Clears the graph
