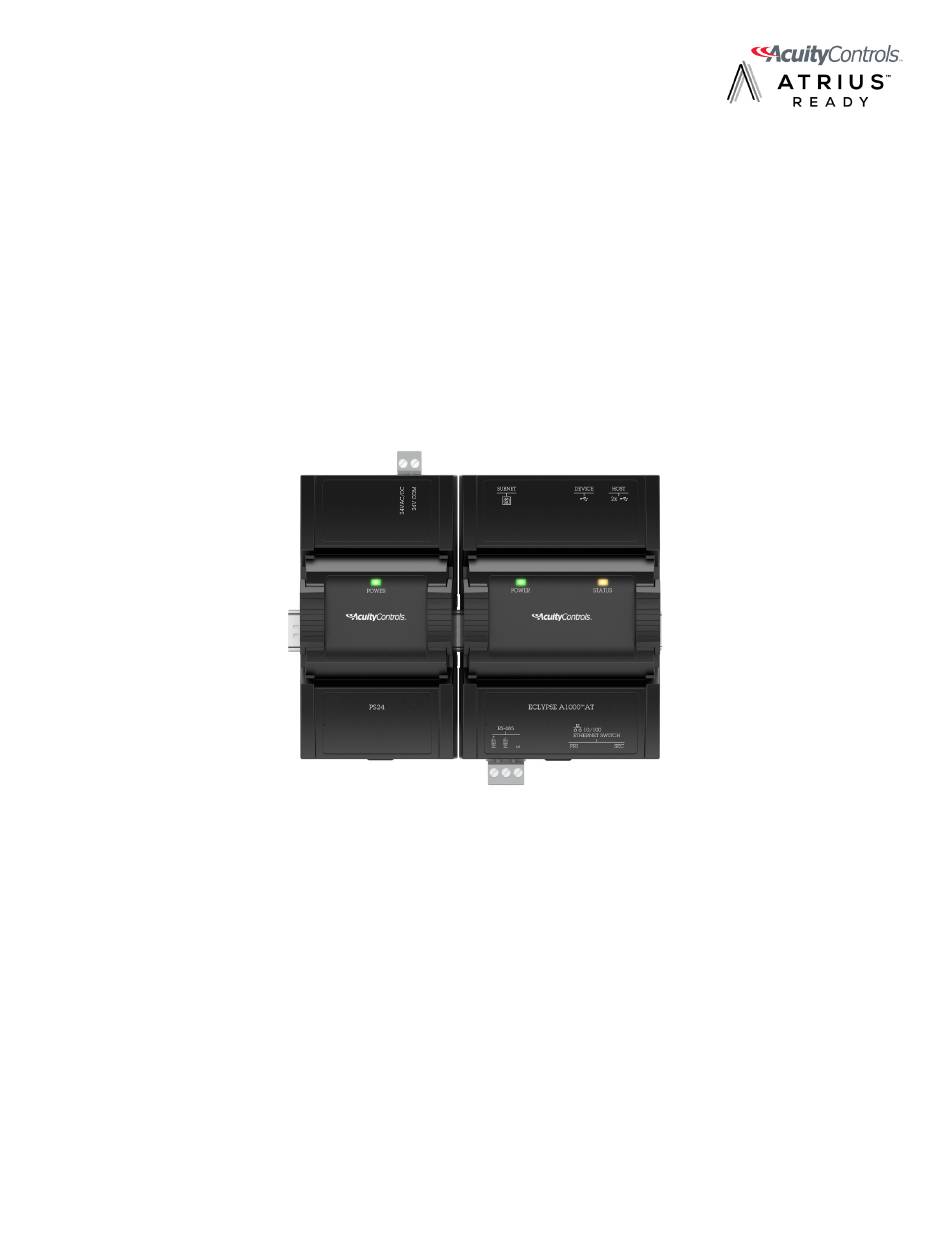

- Page 1 ECLYPSE® A1000 Asset Tracking ECYA1000AT Installation Guide Acuity Brands | One Lithonia Way Conyers, GA 30012 Phone: 800.535.2465 www.acuitycontrols.com © 2017-2019 Acuity Brands Lighting, Inc. All rights reserved. 03/29/19 A1000AT_IG_10_EN 1 of 10...
-
Page 2: Table Of Contents
Table of Contents 1.0 - Introduction ................................. 3 2.0 - Mounting Instructions ..............................5 3.0 - Power Supply Information ............................6 4.0 - Communications Wiring .............................. 7 5.0 - Configuring the Controller ............................7 6.0 - Additional Information ..............................8 7.0 - Sub-gigahertz Assets Adapter Mounting Instructions .................... -
Page 3: Introduction
1.0 - Introduction 1.1 Product Description This document describes the installation procedures for the ECLYPSE A1000AT. The ECLYPSE A1000AT Any type of modification to any Acuity product will void the product’s manages and controls a network of asset tags as part of warranty. - Page 4 1.0 - Introduction 1.4 General Wiring Recommendations 1.5 Module Enclosure Dimensions Any type of modification to any Acuity product will void the product’s warranty. 3.57" 90.67 0.4" 1.09 Inter-Connection Gap: 0.01" 0.40 0.83 21.08 • All wiring must comply with electrical wiring diagrams as well as national and local electrical codes.
-
Page 5: Mounting Instructions
2.0 - Mounting Instructions 2.1 Mounting Positions 1. Before mounting a module, separate the front assembly from the back plate of each module to be mounted: push the two latches up to unlock a The controller‘s mounting orientation must be horizontal module’s front assembly as shown below. -
Page 6: Power Supply Information
3.0 - Power Supply Information 3.1 Power Supply Module (24V) Wiring Voltage: 24VAC/DC; ± 15%, Class 2 AC Power For terminal block connector wiring best practices, see Source General Wiring Recommendations. (Mains) DC Power Source This is a Class 2 Product. Use a Class 2 transformer only (rated between 60 and 100VA at 24VAC) for each power supply module. -
Page 7: Communications Wiring
4.0 - Communications Wiring Controllers are uniquely identified on the network by their MAC address. This identifier is printed on a label located on the side of the controller and on its shipping box. Get a printed copy of the building’s floor plan. During controller installation, peel the MAC address stickers off of the shipping box and put it on the floor plan where the controller has been installed. -
Page 8: Additional Information
5.0 - Configuring the Controller The controller’s factory-default hostname is 2. In the Web browser’s address bar, enter the eclypse-xxxxxx.local where xxxxxx is the last 6 characters controller’s IP address and click go. of the MAC address printed on a sticker located on the 3. -
Page 9: Sub-Gigahertz Assets Adapter Mounting Instructions
6.0 - Additional Information 6.3 North American Emissions Compliance United States Canada This Class (B) digital apparatus meets all the require- Changes or modifications not expressly approved by ments of the Canadian Interference-Causing Equipment Acuity could void the user's authority to operate the Regulations. - Page 10 7.0 - Sub-gigahertz Assets Adapter Mounting Instructions transmission. Metallic parts, such as reinforcement in walls, machinery, office furniture, etc. are major sources INTERNAL TOOTH of field strength dampening. Furthermore, supply areas LOCK WASHER and elevators shafts should be considered as complete transmission screens.
