ECLYPSE Web Interface

Routing

This enables the routing of BACnet packets between BACnet MS/TP controllers connected to the ECLYPSE Controller's
RS-485 port and BACnet/IP controllers connected to the ECLYPSE Controller's Ethernet Switch ports. For example, rout-
ing must be enabled for a Server to discover the BACnet MS/TP controllers connected to the ECLYPSE Controller's
RS-485 port.

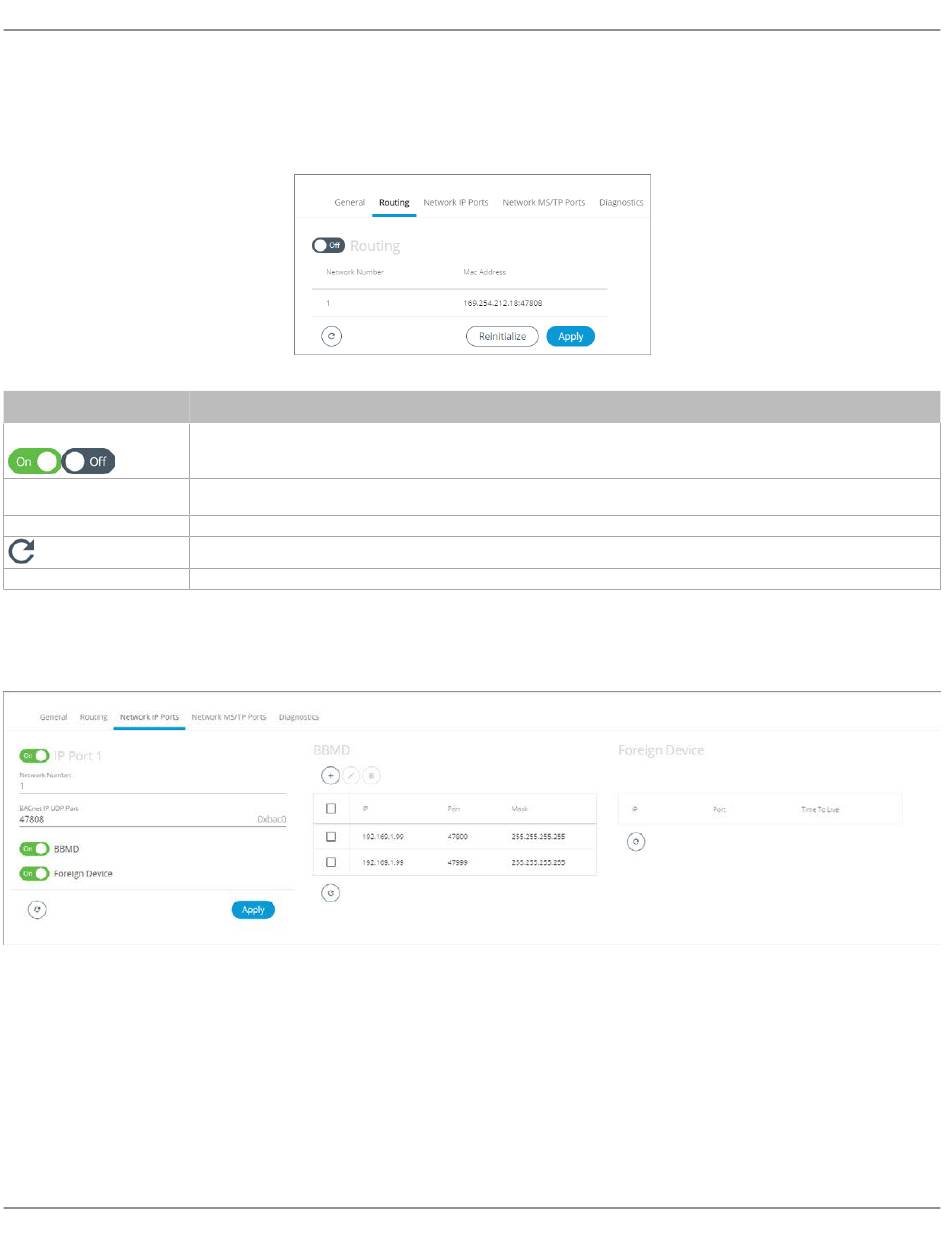

Figure 37: BACnet Routing Configuration
Item
On / Off
Network Number
Mac Address
Apply

Network IP Ports

This sets the IP network configuration parameters (on-board port) as well as the BACnet Broadcast Management Device
(BBMD) and Foreign Device for intranetwork connectivity.
Figure 38: BACnet IP Configuration - Network IP Ports
nLight ECLYPSE
Description
Enables/disable the routing of BACnet packets between BACnet MS/TP controllers connected to the ECLYPSE
Controller's RS-485 port and BACnet/IP controllers connected to the ECLYPSE Controller's Ethernet Switch ports.
Network number that identifies a LAN for routing purposes. All controllers with the same network number are members of
the same logical BACnet network. See
Device Mac address
Click to refresh the information in the list.
Click Apply to apply and save the changes.
Device Addressing.
