ECLYPSE Web Interface

nLight ECLYPSE BACnet Points

BACnet points for all nLight devices are automatically generated in the ECLYPSE controller once the network scan is
launched.
To optimize the automatic BACnet point generation, there is a filter function in the ECLYPSE web interface that will filter
certain types of nLight resources to be skipped in the BACnet resources creation process.
As an option, you can also customize the active and inactive text that is associated with certain objects directly from the
web interface.
To benefit from this feature, once the SensorView configuration is done and before configuring the ECLYPSE BACnet re-
sources, go on the ECLYPSE web interface and click on the nLight Icon from the navigation pane.

BACnet Object Mapping

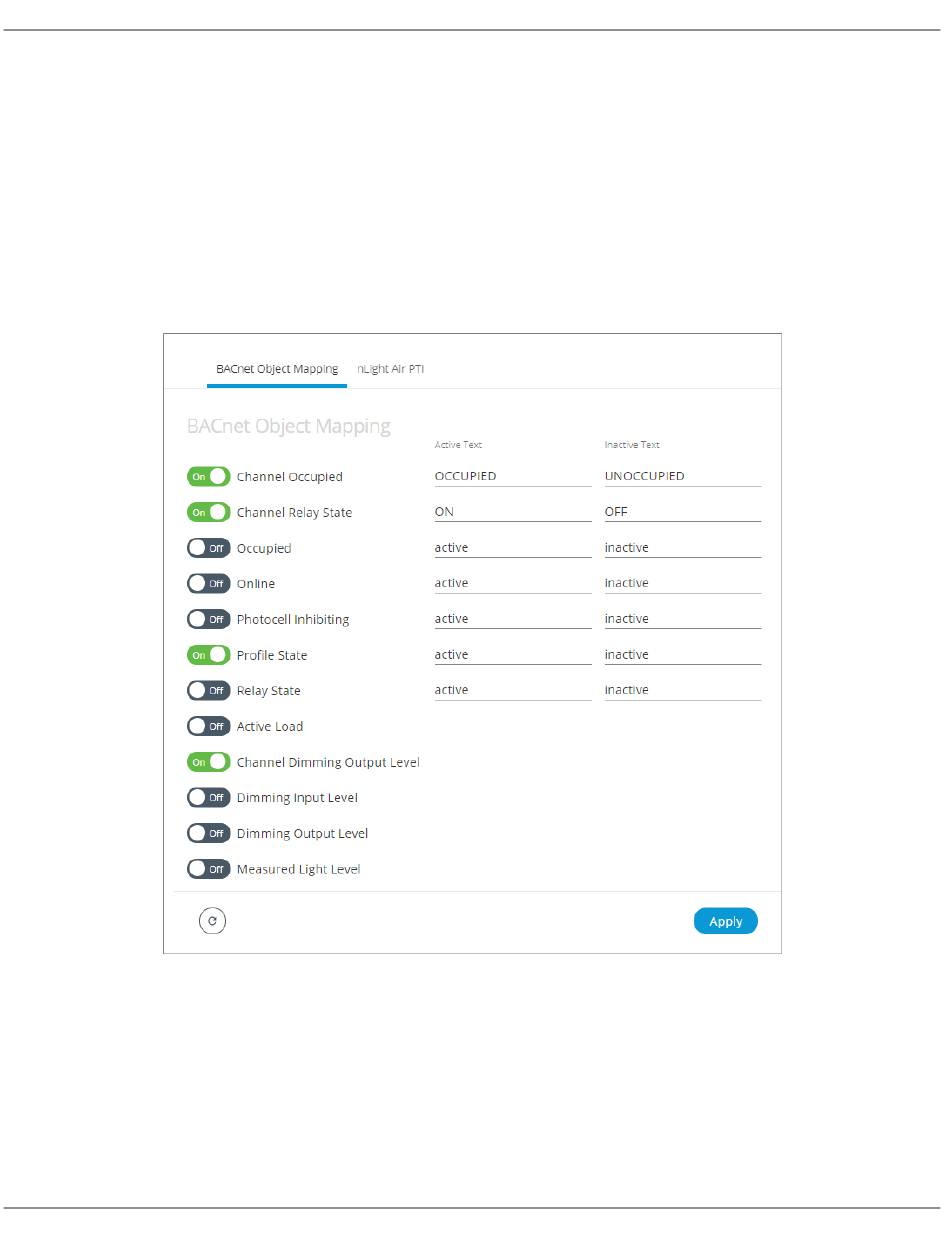

Figure 83: BACnet Object Mapping
Once the BACnet Object Mapping page is open, toggle to the ON position all of the resources you want included the nLight
devices scan. The unwanted device points will be automatically filtered and will not appear in the devices points under the
nLight BACnet Data tree in ENVYSION.
