Network Settings

The Network menu is used to configure the ECLYPSE controller's network interface and setup the wired and wireless net-
work configuration parameters. The available menus are:

Ethernet

£
Wireless
£
Diagnostic
£
Ethernet
The Ethernet screen is used for any wired IP connections that are made through either one of the controller's Ethernet
Switch Pri(mary) connector or Ethernet Switch Sec(ondary) connector. See
The Wired IP parameters can be auto-configured when the connected network has a working DHCP server. The alterna-
tive is to manually configure the controller's IP parameters.

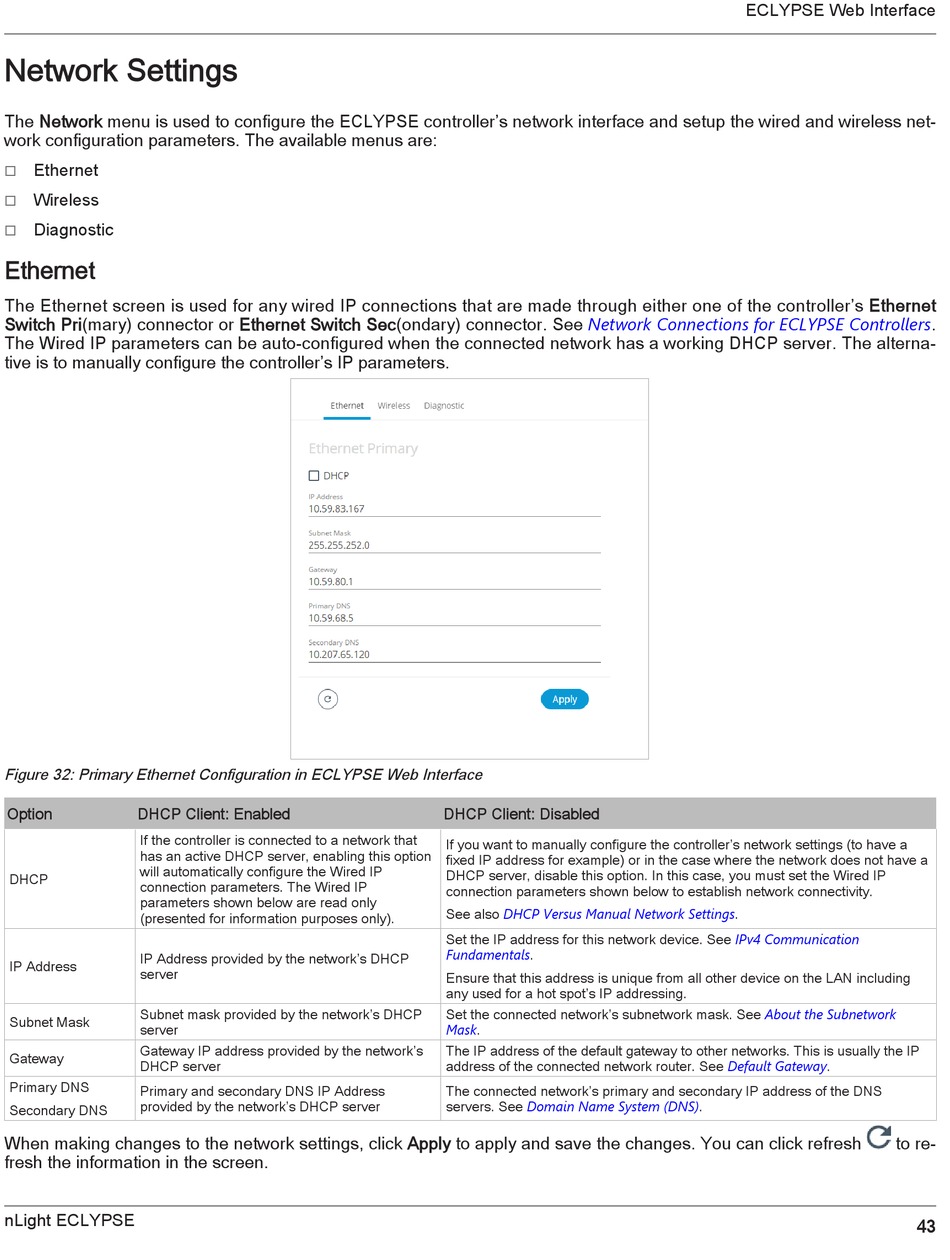

Figure 32: Primary Ethernet Configuration in ECLYPSE Web Interface
Option DHCP Client: Enabled
If the controller is connected to a network that
has an active DHCP server, enabling this option
will automatically configure the Wired IP
DHCP
connection parameters. The Wired IP
parameters shown below are read only
(presented for information purposes only).
IP Address provided by the network's DHCP
IP Address
server
Subnet mask provided by the network's DHCP
Subnet Mask
server
Gateway IP address provided by the network's
Gateway
DHCP server
Primary DNS
Primary and secondary DNS IP Address
provided by the network's DHCP server
Secondary DNS
When making changes to the network settings, click Apply to apply and save the changes. You can click refresh
fresh the information in the screen.
nLight ECLYPSE
Network Connections for ECLYPSE
DHCP Client: Disabled
If you want to manually configure the controller's network settings (to have a
fixed IP address for example) or in the case where the network does not have a
DHCP server, disable this option. In this case, you must set the Wired IP
connection parameters shown below to establish network connectivity.
See also DHCP Versus Manual Network
Set the IP address for this network device. See
Fundamentals.
Ensure that this address is unique from all other device on the LAN including
any used for a hot spot's IP addressing.
Set the connected network's subnetwork mask. See
Mask.
The IP address of the default gateway to other networks. This is usually the IP
address of the connected network router. See
The connected network's primary and secondary IP address of the DNS
servers. See Domain Name System
ECLYPSE Web Interface
Settings.
IPv4 Communication
About the Subnetwork
Default Gateway.
(DNS).
Controllers.
to re-
