First Time Connection to an ECLYPSE Controller

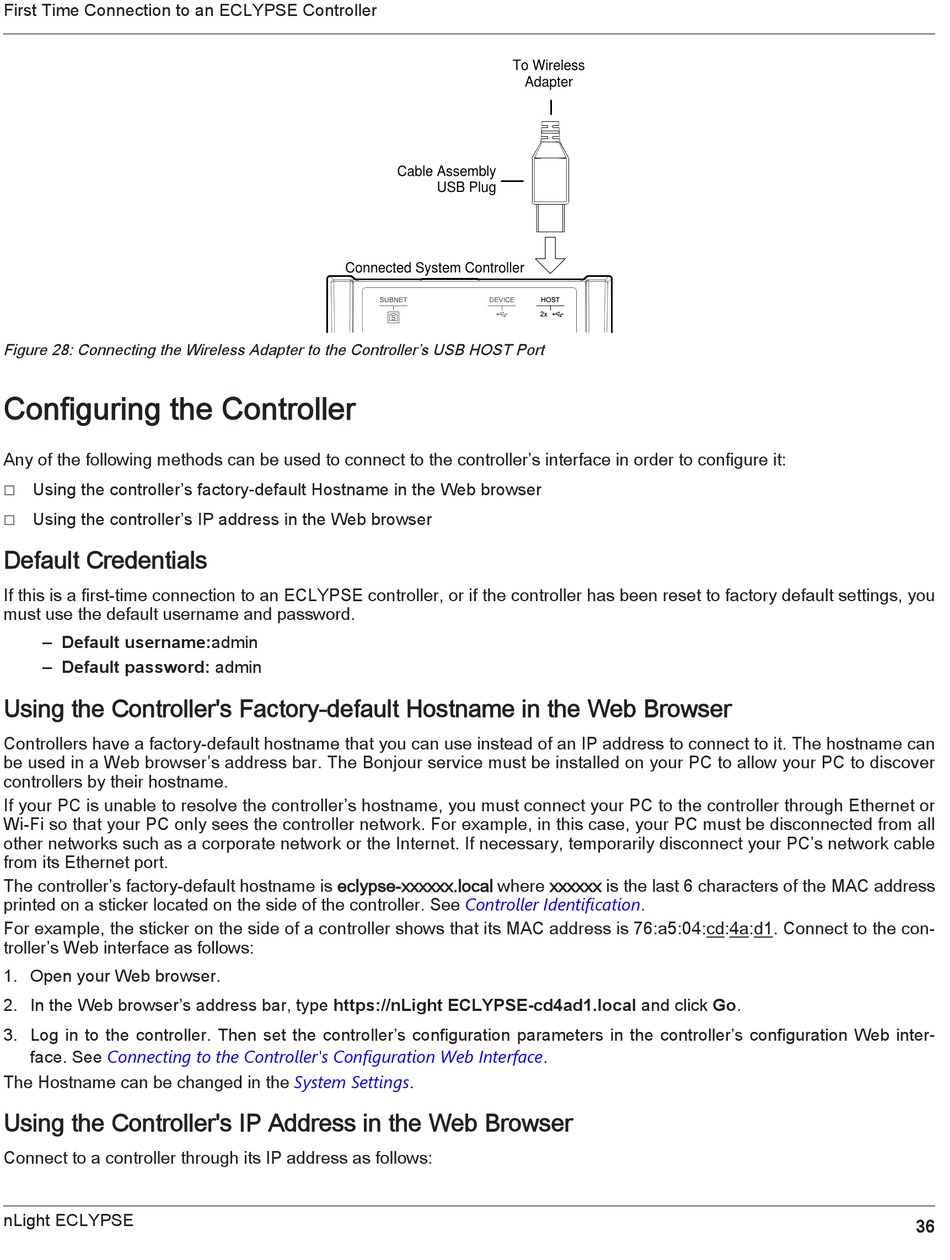

Figure 28: Connecting the Wireless Adapter to the Controller's USB HOST Port

Configuring the Controller

Any of the following methods can be used to connect to the controller's interface in order to configure it:

Using the controller's factory-default Hostname in the Web browser

£

Using the controller's IP address in the Web browser

£

Default Credentials

If this is a first-time connection to an ECLYPSE controller, or if the controller has been reset to factory default settings, you
must use the default username and password.
– Default username:admin
– Default password: admin
Using the Controller's Factory-default Hostname in the Web Browser
Controllers have a factory-default hostname that you can use instead of an IP address to connect to it. The hostname can
be used in a Web browser's address bar. The Bonjour service must be installed on your PC to allow your PC to discover
controllers by their hostname.
If your PC is unable to resolve the controller's hostname, you must connect your PC to the controller through Ethernet or
Wi-Fi so that your PC only sees the controller network. For example, in this case, your PC must be disconnected from all
other networks such as a corporate network or the Internet. If necessary, temporarily disconnect your PC's network cable
from its Ethernet port.
The controller's factory-default hostname is eclypse-xxxxxx.local where xxxxxx is the last 6 characters of the MAC address
printed on a sticker located on the side of the controller. See
For example, the sticker on the side of a controller shows that its MAC address is 76:a5:04:cd:4a:d1. Connect to the con-
troller's Web interface as follows:
1. Open your Web browser.
2. In the Web browser's address bar, type https://nLight ECLYPSE-cd4ad1.local and click Go.
3. Log in to the controller. Then set the controller's configuration parameters in the controller's configuration Web inter-
face. See Connecting to the Controller's Configuration Web
The Hostname can be changed in the
Using the Controller's IP Address in the Web Browser
Connect to a controller through its IP address as follows:
nLight ECLYPSE
Cable Assembly
USB Plug
Connected System Controller
Controller
System Settings.
To Wireless
Adapter
Identification.
Interface.
36
