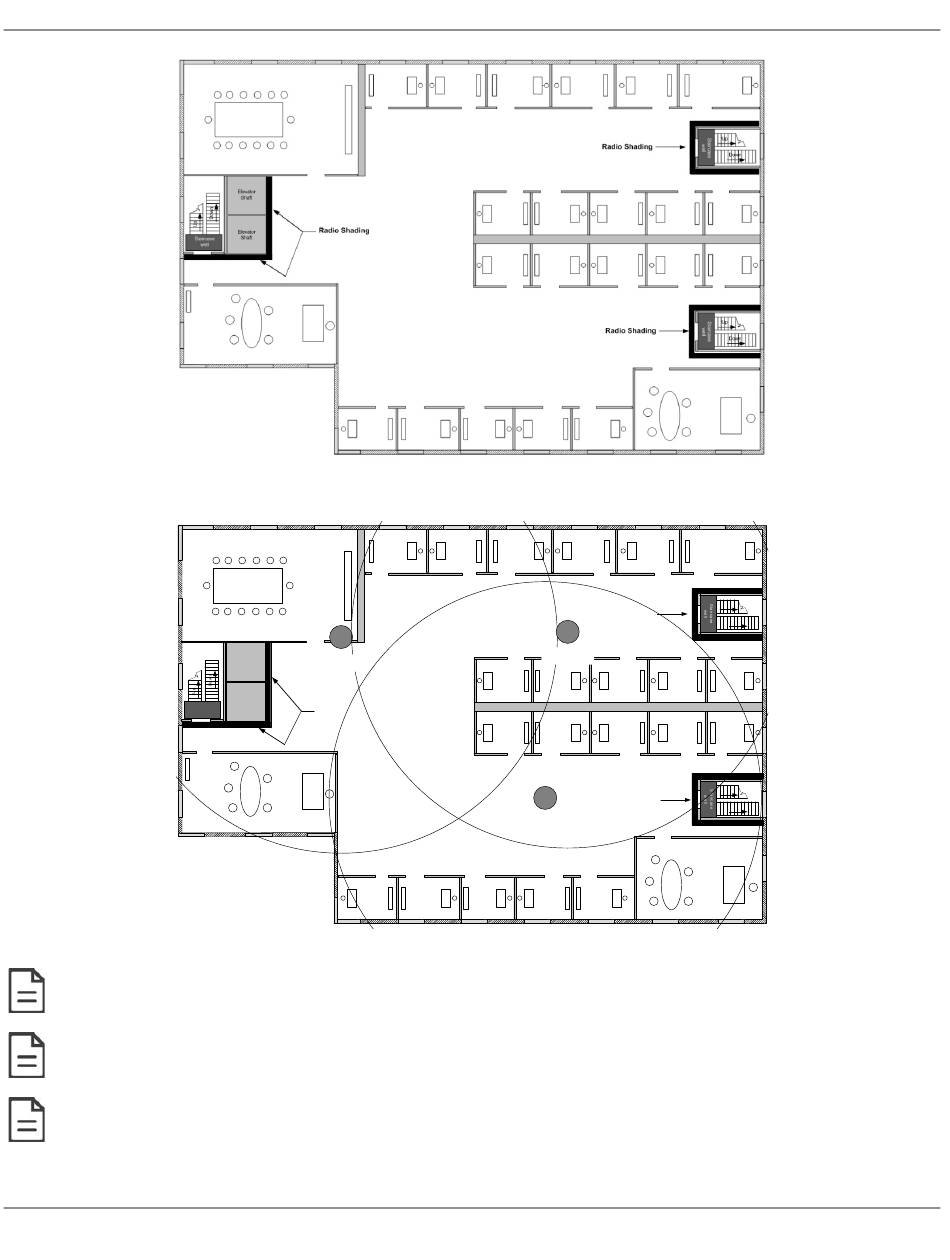

Figure 15: Mark relevant radio shadings
3. Draw circles to locate the ideal positions for your Wi-Fi Adapter as shown below:
Figure 16: Radio Wi-Fi Adapter Location
Make sure that the Wi-Fi Adapter is positioned in a way such that no screens block the connection to any corner inside the fire safety
section (potential sensor positions).
For reliable range planning, the unfavorable conditions should be detected at the beginning but often come from later changes to the
environment (room filled with people, alteration of partition walls, furniture, room plants, etc.).
Even after careful planning, range and signal tests should be done during installation to verify proper reception at the Wi-Fi Adapter
positions. Unfavorable conditions can be improved by changing the antenna position or by adding a router closer to the controller(s).
nLight ECLYPSE
Wi-Fi Hotspot
Elevator
Shaft
Channel 1
Elevator
Shaft
Staircase
Radio Shading
well
Connecting IP Devices to an IP Network
Radio Shading
Wi-Fi Hotspot
Channel 6
Radio Shading
Wi-Fi Hotspot
Channel 11
Up
Down
Up
Down
