Item
Advanced
Channel Number
Wi-Fi Mode
Apply

Network Diagnostics

The Diagnostic menu provides a number of tools to diagnose network connectivity issues between controllers.
Wi-Fi Monitor: shows the current performance of a Wi-Fi connection with another controller.
£
Ping Monitor: shows the round trip time it takes for a ping packet to go to an IP address and come back.
£

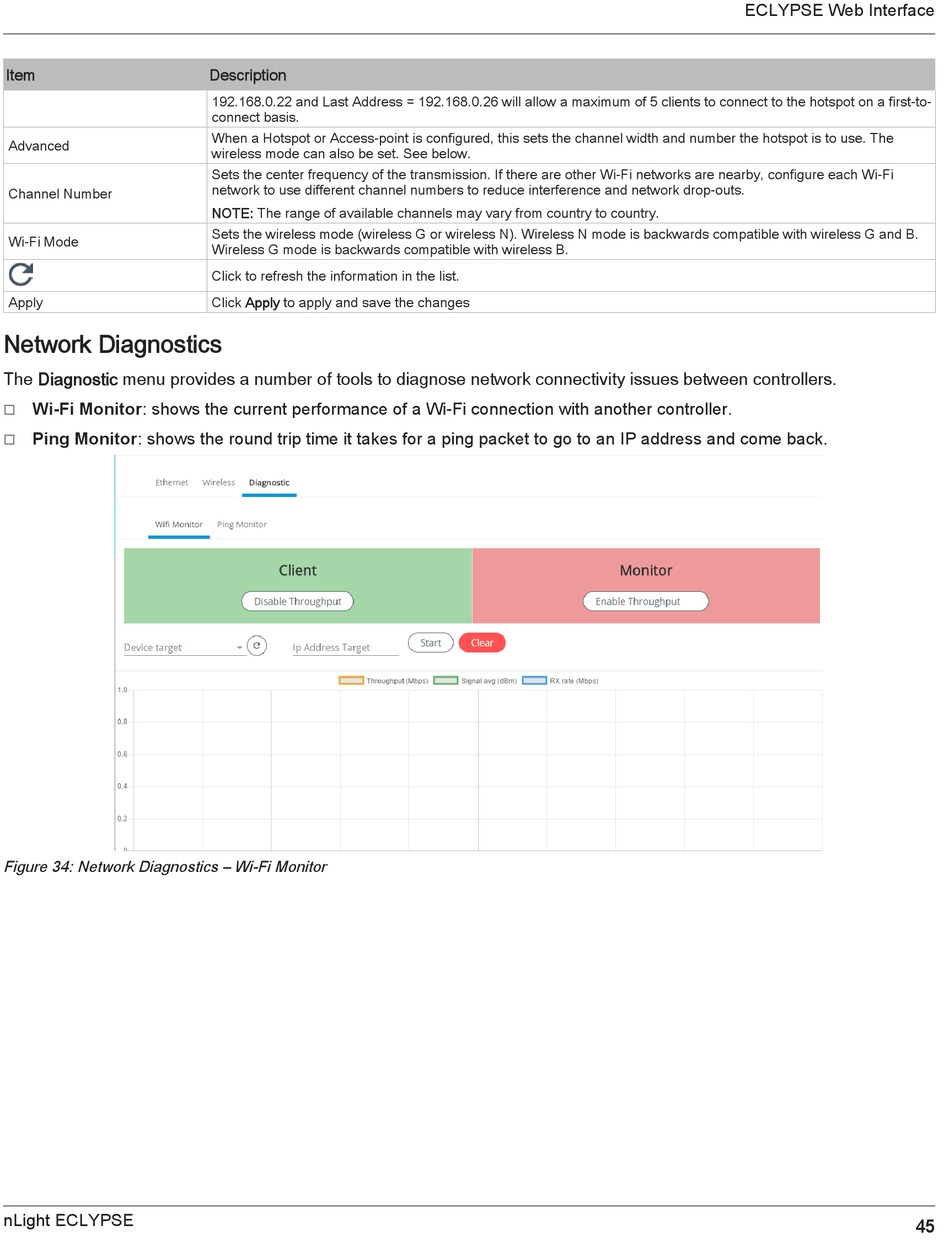

Figure 34: Network Diagnostics – Wi-Fi Monitor
nLight ECLYPSE
Description
192.168.0.22 and Last Address = 192.168.0.26 will allow a maximum of 5 clients to connect to the hotspot on a first-to-
connect basis.
When a Hotspot or Access-point is configured, this sets the channel width and number the hotspot is to use. The
wireless mode can also be set. See below.
Sets the center frequency of the transmission. If there are other Wi-Fi networks are nearby, configure each Wi-Fi
network to use different channel numbers to reduce interference and network drop-outs.
NOTE: The range of available channels may vary from country to country.
Sets the wireless mode (wireless G or wireless N). Wireless N mode is backwards compatible with wireless G and B.
Wireless G mode is backwards compatible with wireless B.
Click to refresh the information in the list.
Click Apply to apply and save the changes
