Disassembly Instructions
3.6.6
Removal of the Power Supply Assembly
1. Remove AC mains power cord and internal battery. Remove rear case.
2. Disconnect ribbon cable at J-3 on the power supply. Disconnect battery J-4 connector
3. Remove screws as shown in Figure 3-1.

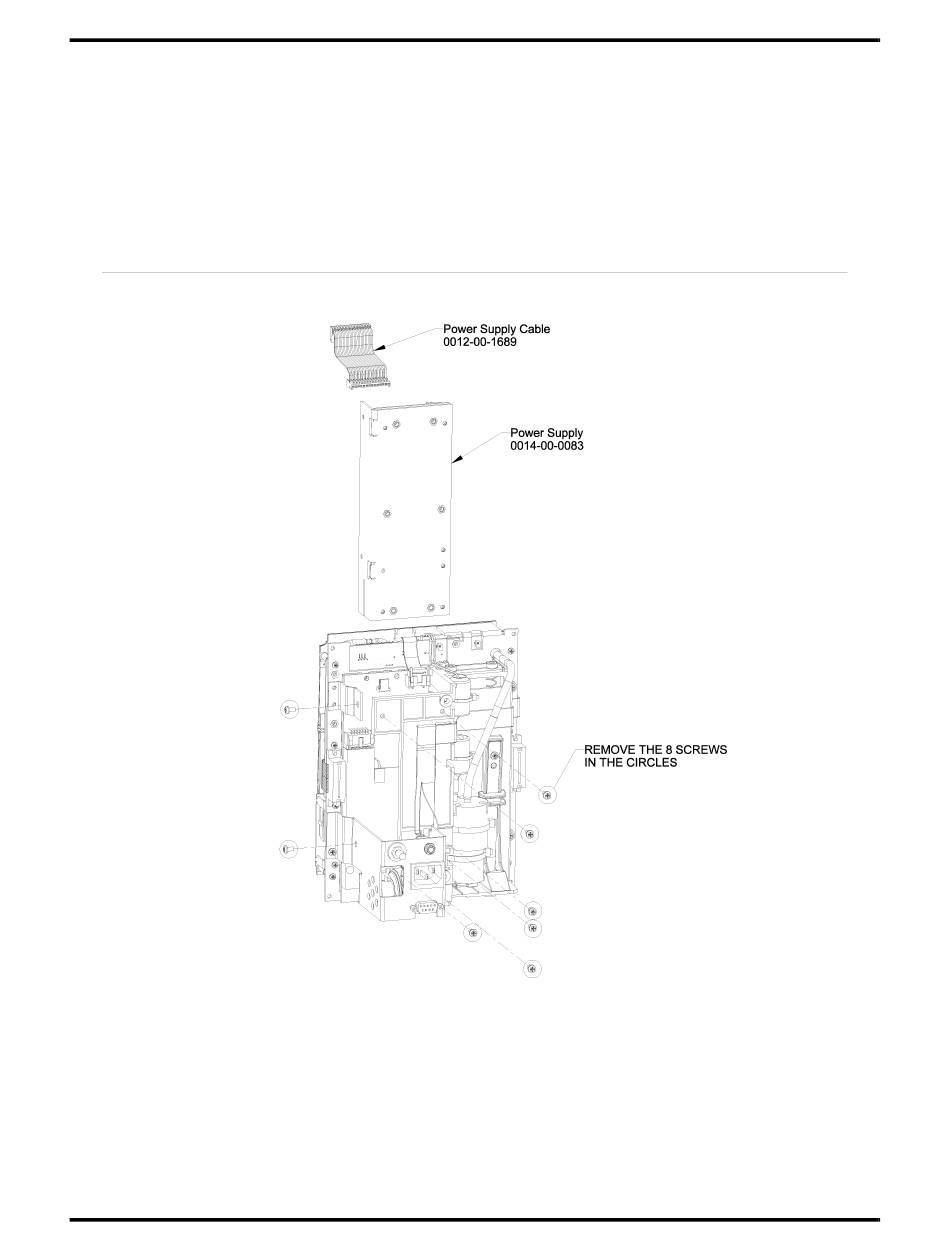

FIGURE 3-1 Power Supply Assembly Diagram
3 - 12
cable. Disconnect input cable at J-2.
0070-10-0691
Repair Information
Accutorr Plus Service Manual
