Position Display

Pressure Display

Password


CR R1

R2

R3

Od
Remote
control
source
(must be set
to OP)

rP
Remote
Priority


EA
ESD action ESD Local
Stop
Override

FI
mA/Voltage
Analogue input

dC
Deadband
Closing

OJ
I. Timer
Enabled

CF
Confirm
Faults

H1
Limit Flags


PA
Address Baud rate
Range 01-FF See note
above

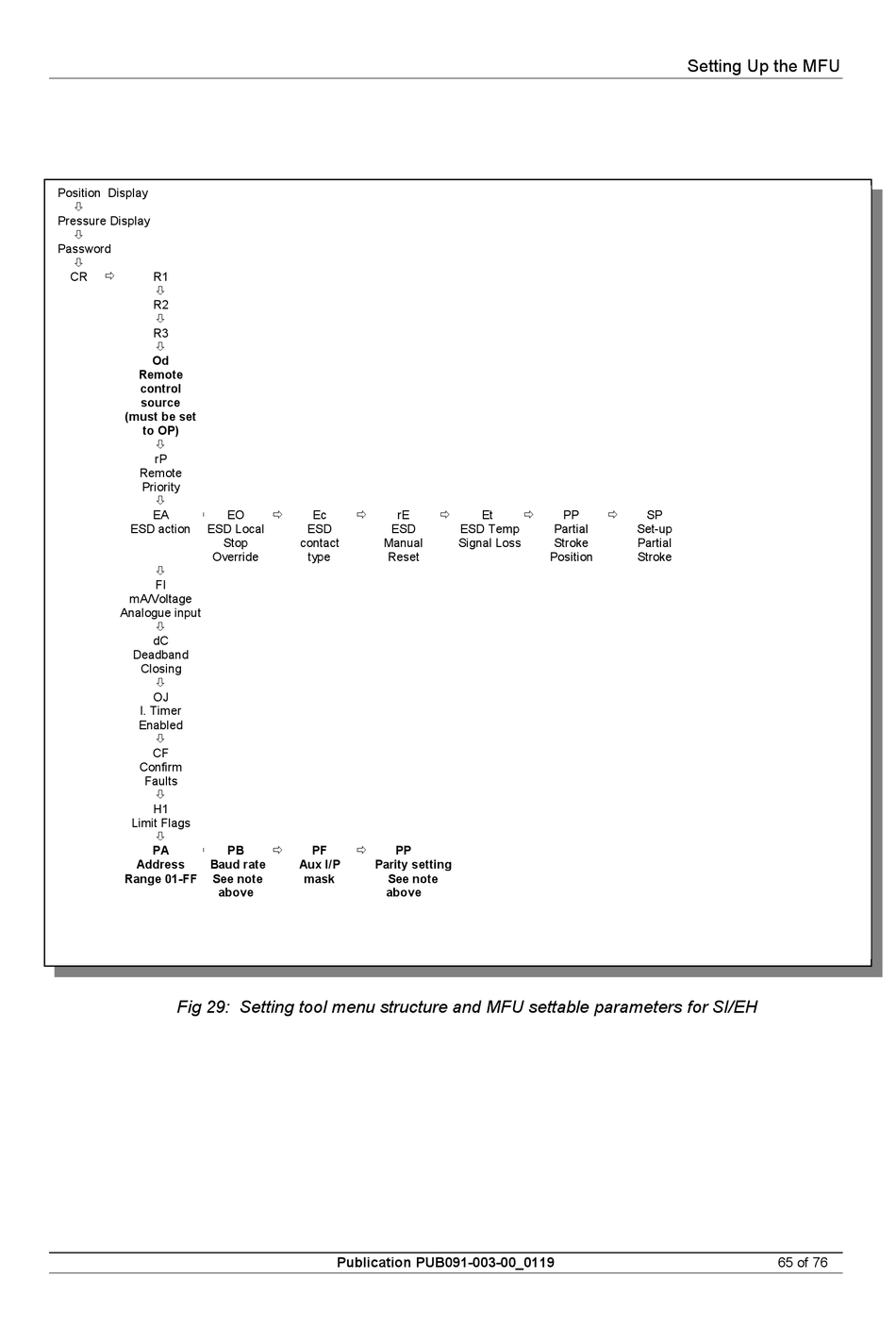

Fig 29: Setting tool menu structure and MFU settable parameters for SI/EH
 
EO Ec
ESD ESD
contact Manual
type Reset
 
PB PF PP
Aux I/P Parity setting
mask See note
above
Publication PUB091-003-00_0119
 
rE Et PP
ESD Temp Partial
Signal Loss Stroke
Position
Setting Up the MFU

SP
Set-up
Partial
Stroke
