Fig 28: Setting Tool Menu Structure And Mfu Settable Parameters - rotork Modbus IQ Pro Technical Manual

Modbus MFU Option Card Installation Manual
Position Display

Position Display + Torque

Password


CR R1

R2

R3

R4


A1
ESD
action contact


OE
Extra
indication
contacts


PA
Address Baud rate
Range See note
01-FF


FI
Set point Set point
signal signal
type range

R5
Etc.

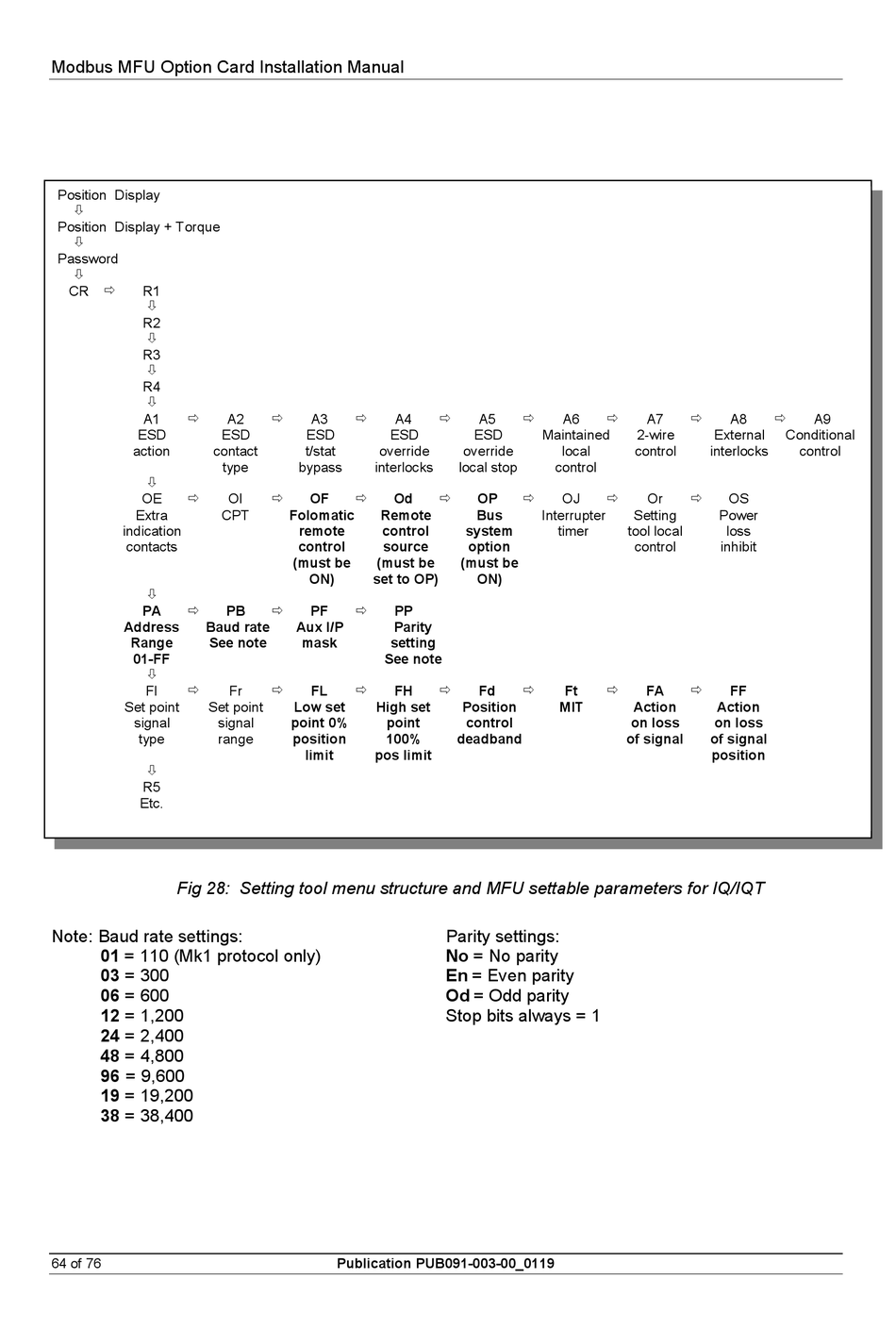

Fig 28: Setting tool menu structure and MFU settable parameters for IQ/IQT
Note: Baud rate settings:
01 = 110 (Mk1 protocol only)
03 = 300
06 = 600
12 = 1,200
24 = 2,400
48 = 4,800
96 = 9,600
19 = 19,200
38 = 38,400
64 of 76
 
A2 A3
ESD ESD
t/stat override
type bypass interlocks
 
OI OF
CPT Folomatic Remote
remote control
control source
(must be (must be
ON) set to OP)
 
PB PF
Aux I/P
mask
See note
 
Fr FL
Low set High set
point 0% point
position 100%
limit pos limit
Publication PUB091-003-00_0119
 
A4 A5
ESD ESD Maintained
override
local stop control
 
Od OP
Bus Interrupter
system timer
option
(must be
ON)
PP
Parity
setting
 
FH Fd
Position
control
deadband
Parity settings:
No = No parity
En = Even parity
Od = Odd parity
Stop bits always = 1
 
A6 A7
2-wire External
local control interlocks
 
OJ Or
Setting Power
tool local loss
control inhibit
 
Ft FA
MIT Action Action
on loss on loss
of signal of signal
position

A8 A9
Conditional
control
OS
FF
